Summary of Contents for Shinyei Technology OMX-TDM

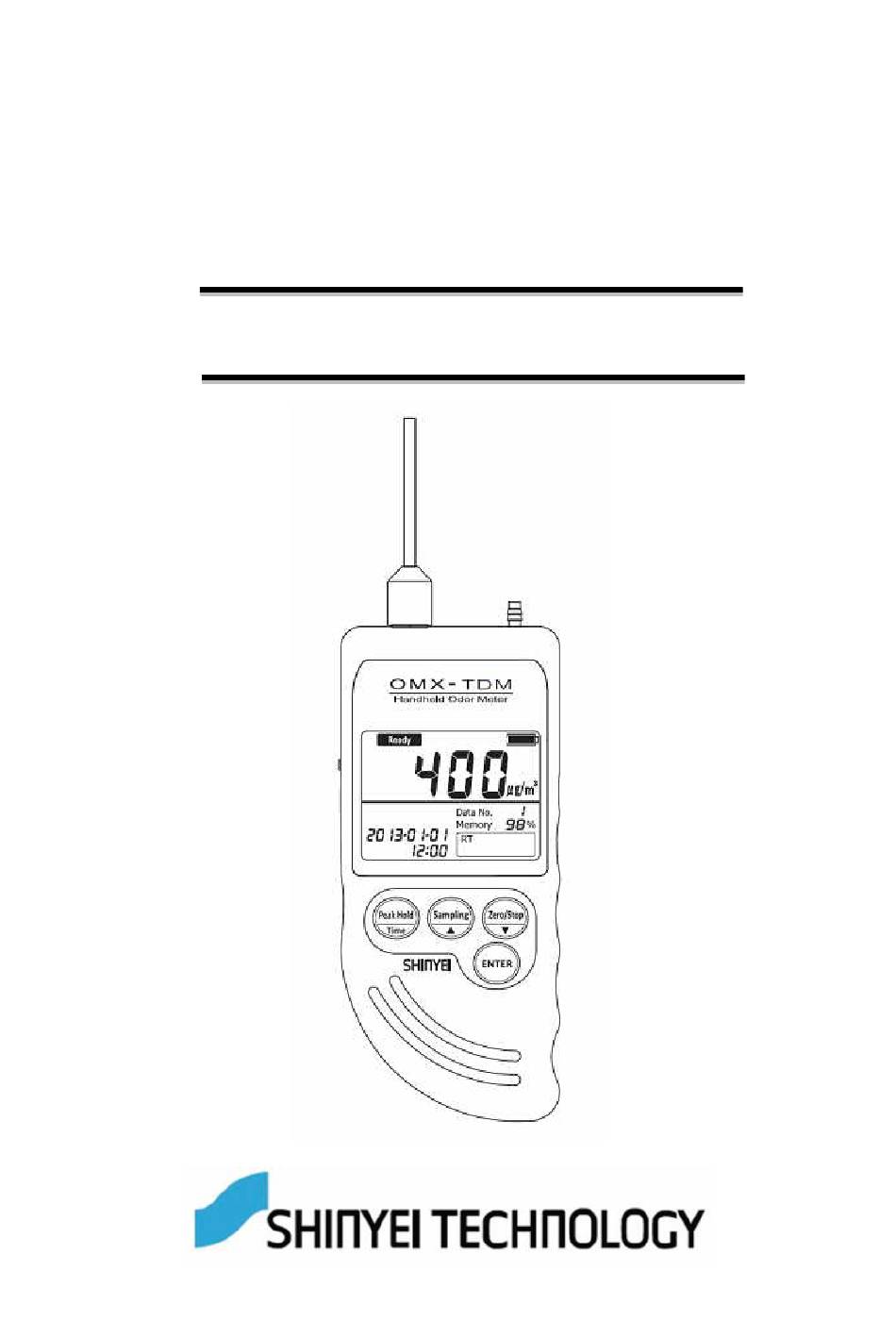

- Page 1 Handheld Odor Meter OMX-TDM Operation Manual Ver. 1 ...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ............................3 1-1 Supplied Component List ....................3 1-2 Warning............................4 1-3 Cautions............................5 1-4 Unit Dimension ........................6 2. General Description…………………………………………………………………………………………………….7 2-1 Instrument Features......................8 2-1-1 LCD Display..........................8 2-1-2 Base Unit ..........................9 2-3 Accessories........................... 10 3. Measurement............................ 11 3-1 Real-time Sampling Mode ....................11 3-1-1 Measurement Preparation................... -
Page 3: Introduction
1. Introduction 1-1 Supplied Component List Handheld Odor Meter OMX-TDM has been packaged carefully and includes all the components necessary for full operation. Upon receipt, check the kit contents carefully to find you received the following items in good condition. The instrument kit contains: OMX-TDM Base Unit 1 Suction Nozzle 1 AC Adaptor 1 ʻAAʼ Alkaline Battery 4 USB Connection Cable 1 Air Purifying Unit 1 Activated Carbon (50cc/bag) 1 Replacement Filter for Air Purifying Unit 4 Replacement Filter for Suction Nozzle 5 Operation Manual 1 ... -
Page 4: Warning
1-2 Warning WARNING Do not use any adaptors except supplied AC Adaptor. Do not use in explosive atmosphere. The device is not designed for explosion proof. Do not use it where combustible and/or explosive gases exist. Do not dismantle the base unit. ... -
Page 5: Cautions
1-3 Cautions CAUTIONS Do not install, use, or store the unit at a place where: - Ambient temperature is not in the range of -10 to 40 ºC. (14-104°F) - Ambient humidity exceeds 90% R.H. - Condensation occurs due to rapid temperature change. - Corrosive and/or explosive gases exist. - Direct vibration and/or stream occur. - Mush dust, salty materials, and/or iron powders exist. - Static electrons, magnetic, and/or electronic noise can occur. - Cool or warm air from conditioners has direct influence. - The unit is exposed to direct sunlight. - Heating occurs due to heat radiation. Do not use or store the unit at a place where the following gases exist: - Extremely concentrated odor ... -
Page 6: Unit Dimension
1-4 Unit Dimension Unit: mm ... -
Page 7: General Description
Handheld Odor Meter is the most popular simplified tool for odor analysis, which enables to display TVOC as Toluene-value Digital Indication numerically by comparing odor gases and purified air. The reading shown on display is calculated based on our original principle. By using data filing software, you can transfer measuring data to PC in easy steps. Toluene-value Digital Indication Simply turn on the device and start measuring. Real-time gas concentration converted into Toluene concentration can be measured continuously. Peak-hold Function Maximum strength level can be retained. Memory Sampling Measurement Mode Up to 511 measuring data can be saved upon selecting sampling rate: 1, 2, 5, 10, 20, 60, 120, or 300 seconds. Transferring measuring data to PC By using data filing software, it can transfer measuring data automatically from the device to PC during measurement. Or, it also can transfer saved measuring data from the device to PC and draw illustrated graph automatically. To download OMX-TDM Data Filing Software, enter the following URL and go to: http://www.odormonitor.com/download.html ... -
Page 8: Instrument Features
2-1 Instrument Features 2-1-1 LCD Display Name Function After turning, it will be blinking for about ten minutes for initializing. ① Ready Start measuring after ʻReadyʼ stops blinking. Gas concentration converted into Toluene concentration is displayed Toluene-value Digital ② from 0 to 9999 in μg/㎥. Indication Upper: Year-Month-Date ③ Calendar Function Lower: Hour-Time ④ Peak Hold Maximum strength level can be retained. ■■■■ Full ■■■□ Good ‒ Measurable for 3 to 4 hours. ■■□□ Moderate ‒ Measurable for 1 to 2 hours. ⑤ Battery Status ■□□□ Low ‒ Change battery. □□□□ No Battery ⑥ USB ... -
Page 9: Base Unit
2-1-2 Base Unit (OMX-TDM) Name Function -Hold three seconds for Peak-hold Function. ① -Hold and turn on the device at the same time to set Calendar. -Select Sampling rate. ② -Set Calendar. -Use for Zero-point Mode. ③ -Set Calendar. ④ Confirm Sampling Rate and/or Zero-point Mode. ❶ Power Switch Turn on and off the device. AC Adaptor ❷ AC Adaptor is connected to the port. Port ❸ Suction Nozzle Nozzle to take sampling air and/or object gases. ❹ Exhaust Nozzle Sampling air and/or object gases are exhausted. ... -
Page 10: Accessories
2-2 Accessories Name Function AC adaptor can be connected to the device during the AC Adaptor measurement. Air Purifying Unit Attach the unit to Suction Nozzle for Zero-point Mode. Exchange activated carbon when deodorizing using Activated Carbon Air Purifying Unit is not effective. Replace the filter when deodorizing using Air Replacement Filter for Air purifying Unit Purifying Unit is not effective. Replacement Filter for Suction Nozzle Replace the filter when it gets dirt. Use USB Connection Cable to transfer measuring data USB Connection Cable from the device to PC. 10 ... -
Page 11: Measurement
2. Attach Suction Nozzle to the device before measurement. 3. Use ʻAAʼ alkaline batteries or AC Adaptor. Use AC adaptor for longer measurement. or 4. Turn on the device at clean ambient. It takes about two minutes for the device initializing and start measuring. At the point when initializing is done, the device sets the point as ʻZeroʼ point. To get the zero point stable, initializing at clean ambient is recommended. Air Purifying Unit is used to set ʻZeroʼ point forcibly. (Go to 3-5) 3-1-2 Measurement 1. Turn on the device and wait for about ten minutes until ʻReadyʼ stops blinking and initializing is done. 2. Start measuring. 3. Use OMX-TDM Data Fling Software if necessary. 3-1-3 Finish Measurement Turn off the devise when the displayed value shows close to ʻ0ʼ. 11 ... -
Page 12: Memory Sampling Mode
3-2 Memory Sampling Mode 3-2-1 Measurement Preparations Refer to 3-1-1 on Pp11. 3-2-2 Measurement 1. Press button until Calendar and Sampling Rate on LCD display starts blinking. 2. Select Sampling Rate by pressing. 3. Press to finish selecting Sampling Rate. 4. Press, and to finish Memory Sampling measurement and save measuring data. 3-2-3 No Memory Space Memory overflow occurs when the internal memory is full. If there is no space remained, Calendar on LCD display starts blinking, and Data No. becomes ʻ0ʼ. To delete saved memory in the device, press ʻSamplingʼ and ʻZero/Stopʼ at the same time while the device is off and turn on the device while the two buttons are held. * Saved memory in the device will not be deleted automatically when it is transferred to PC. 12 ... -
Page 13: Peak-Hold Function
3-3 Peak-hold Function Press ʻRange Peak-holdʼ button for over three seconds during Real-time Sampling. By this function, the highest value would be keeping displayed until the values are exceeded other highest values. Press ʻRange Peak-holdʼ button for over three seconds again to cancel the function. * This function will not be shown on the saved data. 3-4 Zero-point Function After the two-minute initializing, the device will display the value ʻ0ʼ regardless of the measurement environment. If you would like to set measuring values to ʻ0ʼ forcibly or measure values more accurate, connect Air Purifying Unit as shown in below. 1. Press ʻZero/Stopʼ button until Calendar on LCD display starts blinking. 2. Press ʻEnterʼ until Calendar on LCD display stops blinking. 3. Press ʻZero/Stopʼ button again after 1. If you would cancel operating Zero-point Function. ... -
Page 14: How To Use Data Filing Software
4. How to Use Data Filing Software 4-1 How to Download Software Software is used to transfer data from the device to PC by using USB Connection Cable. 1. Enter the following URL and go to: http://www.odormonitor.com/download.html 2. Enter personal information for product registration. 4-2 How to Install Software 1. Open ʻSetupTDM̲ jp.msiʼ. * Install software under Windows TDMinistrative privileges. ... - Page 15 4. Select the place where you would like to install the software. Click ʻNextʼ. 5. Click ʻNextʼ. 6. If below window appeared, click ʻYesʼ to continue installation. ...
- Page 16 8. Installation procedure will be completed by clicking ʻClose.ʼ 16 ...
- Page 17 How to Install USB Drivers Software Install USB Drivers Software before connecting USB cable to PC. To download the latest version, enter the following URL and go to: http://www.silabs.com/product/mcs/Pages/USBtoUARTBridgeVCPDrivers.aspx 1. Decompress ʻCP210x̲ VCP̲ Windows.zipʼ in selected folder. 2. Open the decompressed file. ...
- Page 18 4. Click ʻNextʼ. 5. Confirm License Agreement, the check ʻI accept this agreementʼ. Click ʻNextʼ. 6. Installation procedure will be completed by clicking ʻDoneʼ. ...
-
Page 19: Preparation
4-3 Preparation Connect the device to PC by USB connection cable. 5-4 How to Open Software 1. Double-click shortcut icon on desktop. 2. Or, go to Start > All Programs > SHINYEI Technology > Handheld Odor Meter (OMX- TDM). 3. Main Screen will appear. 4. Read Handheld Odor Meter Data Filing Software Manual for detailed operation procedure. ... -
Page 20: Specification
5. Specification Detection Method Semiconductor Gas Sensor Object Gas TVOC Sampling Method Continuous Sampling with Built-in Pump Detection Range 0 to 9999μg/㎥ in Toluene Concentration Digital LCD Display Display 0 to 9999 Response Time at 90%: Toluene: 500μg/㎥ within 40 seconds Response Time Toluene: 1500μg/㎥ within 60 seconds Toluene: 6000μg/㎥ within 60 seconds Two ʻAAʼ Size Alkaline Batteries or AC Adaptor Power Source * Battery life for continuous measurement s approx. 7 hours. Consumed Power Approx. 1100mW with ʻAAʼ Size Alkaline Batteries Storage Temperature Range 0 to 40ºC Dimensions W74 x L167.5 x D35 Memory Up to 32,732 Data, Up to 511 files 20 ... -
Page 21: Maintenance Ad Servicing
6. Maintenance and Servicing 6-1 Replacement of ‘AA’ Size Alkaline Batteries When Battery status on LCD Display becomes ʻLowʼ, replace ʻAAʼ size alkaline batteries as follows; 6-2 Replacement of Button Battery The unit uses a button battery (model: CR2032) for memory back up. When to replace: Approx. five years after the purchase When Calendar or Time on LCD is not displayed correctly. Follow the procedure below: 1. Switch power OFF, remove ʻAAʼ batteries and disconnect the AC adaptor. ... -
Page 22: Maintenance Of Air Purifying Unit
6-3 Maintenance of Air Purifying Unit Top It is recommended to replace activated carbon and filters Top Wire Gauze in Air Purifying Unit to prevent gases absorbed in the unit. Top Filter Arrow Label Activated Carbon Follow the procedure below: Bottom Filter 1. Twist the unit to open. Bottom Filter Bottom 2. Take out top wire gauze, top filter, activated carbon, and bottom filter. * Do not take out bottom wire gauze. 3. Replace bottom filter and activated carbon by the line. Line * Do not exceed line when replace activated carbon. ... -
Page 23: Troubleshooting
6-5 Troubleshooting If you find: Check: OMX-TDM does not operate. Check the battery status or connect unit to AC adaptor. Unit will not operate after battery Check the battery polarity. replacement. The displayed value does not change. Close measurement object to the unit. Gases are absorbed in unit. Connect Air Purifying Unit to clean the air in unit. The displayed value on LCD display keeps Odor concentration is too high and blinking. overflowed. Change displayed range. - Time on LCD display keeps blinking. Memory is overflowed. - Sampling button cannot be operated. Delete data. - Data No. becomes ʻ0ʼ. Data cannot be saved. Memory is overflowed. Delete data. Message ʻSErrʼ is displayed on LCD. Sensor malfunction. Contact us if the message keeps being displayed. Message ʻPErrʼ is displayed on LCD. Built-in air pump malfunction. Contact us if the message keeps being displayed. ...
