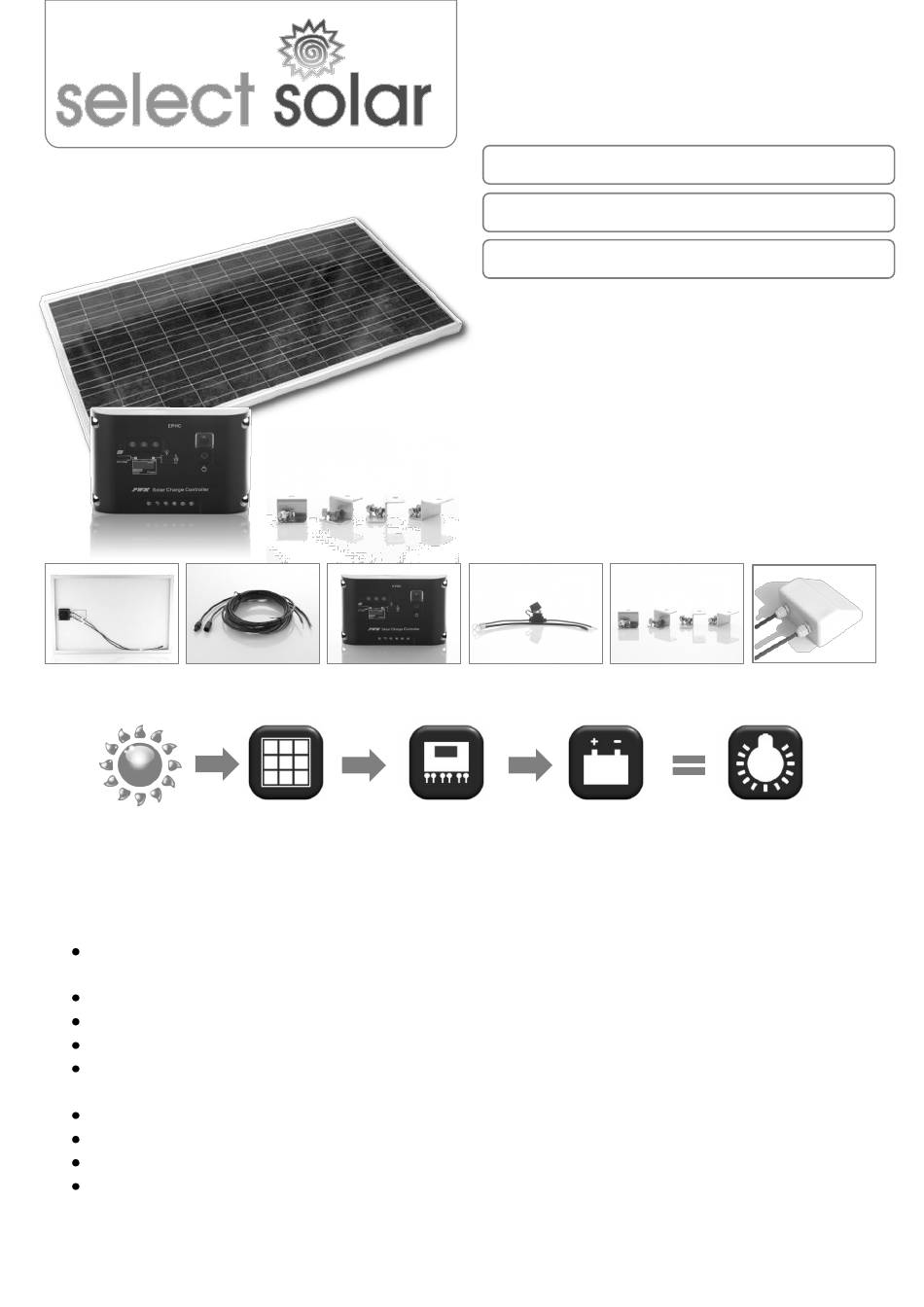

Motorhome Solar Panel Kit
SOLAR PANEL
PANEL CABLING
Solar power for your motorhome, caravan or boat! These kits are designed to charge your motorhome,
caravan or boat 12V battery. They contain everything you need for the installation and are very simple to fit.
Intended for permanent mounting on a flat roof, kits include a polycrystalline framed solar panel, 10A charge
regulator, cabling and mounting accessories.
Yingli solar panel with high transmission glass front, aluminium frame and weather proof junction box
with screw terminals.
Panel includes bypass diodes to minimise the effect of shadows.
25 year module power output warranty.
10A EPHC regulator supplied with each kit ensures that your battery won't be overcharged.
Comes with approximately 4m of cabling between panel and regulator, with MC3 waterproof
connectors.
Fused battery cables with ring connectors to fit to battery.
Simple mounting brackets allow you to fix your panel to your motorhome roof, or preferred location.
Cable gland and adhesive (Sikaflex 291) included in the kit.
No soldering or difficult wiring is required – we've done it all for you!
REGULATOR
SOLAR PANEL
REGULATOR
INSTALLATION GUIDE
60 Watt Kit - 05002MK03
85 Watt Kit - 05002MK04
130 Watt Kit - 05002MK05

Kit Contents

YINGLI solar panel fitted with approximately 1m
cable pair, ending in waterproof connectors.
Pair of 4m extension cables, ending in waterproof
connectors that fit with panel cable.
10A EPHC charge regulator.
Pair of battery cables with fuse and ring terminals.
Fixing brackets c/w bolts, Twin cable gland and
Sikaflex 291 (100ml).
'Z' BRACKETS
FUSED BATTERY CABLE
BATTERY
Motorhome Solar Panel Kits
for
CABLE GLAND
12V APPLIANCE
Page 1 of 4
October 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 05002MK03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for select solar 05002MK03

  • Page 1 INSTALLATION GUIDE 60 Watt Kit - 05002MK03 Motorhome Solar Panel Kit 85 Watt Kit - 05002MK04 130 Watt Kit - 05002MK05 Kit Contents YINGLI solar panel fitted with approximately 1m cable pair, ending in waterproof connectors. Pair of 4m extension cables, ending in waterproof connectors that fit with panel cable.
  • Page 2 1 - Preparation Our solar panels are supplied already pre-wired for easy installation. Before fixing the solar panel to your motorhome or boat, it is usually best to plug the 3m extension cables into the connectors fitted to the wire coming from the back of the solar panel. This allows you to position the panel without having to worry about access to rear.
  • Page 3 3 - Fitting the Charge Regulator IMPORTANT The charge regulator should be fitted in a dry, ventilated environment as close as possible to the battery, to reduce voltage drop. Please refer to and follow instructions that come with the regulator supplied. Connect the charge regulator Before installing the charge regulator be sure to unplug the cables to the battery first and then...
  • Page 4 Size of panel (mm) 770 x 660 x 35 660 x 1010 x 35 1470 x 680 x 50 Polycrystalline cells Select Solar Ltd Waterpark Storage, 4 Ermin Way Barns, The Street, Latton, Swindon, Wiltshire, SN6 6DN. www.selectsolar.co.uk phone: 01793 752 032...
