CARE INSTRUCTIONS:
WIPE CLEAN WITH SOFT DAMP CLOTH. DO NOT USE SCOURERS, ABRASIVES OR CHEMICAL SOLVENTS. STORE IN A DRY PLACE AND KEEP AWAY FROM DIRECT WATER
AND SUNLIGHT. FOR INDOOR AND DOMESTIC USE.
WARNING:
DO NOT STAND OR SIT ON THE PRODUCT. DO NOT USE THE PRODUCT AS A STEP LADDER. DO NOT USE THE PRODUCT UNLESS ALL BOLTS AND SCREWS ARE FIRMLY
SECURED.THIS PRODUCT CONTAINS SMALL PARTS AND SHARP POINTS, KEEP AWAY FROM CHILDREN AND BABIES. ADULT ASSEMBLY REQUIRED.FAILURE TO FOLLOW
THESE WARNING COULD RESULT IN SERIOUS INJURY.
MAXIMUM SAFE LOAD: 15KGS FOR TABLE TOP.
②
Assembly Instructions

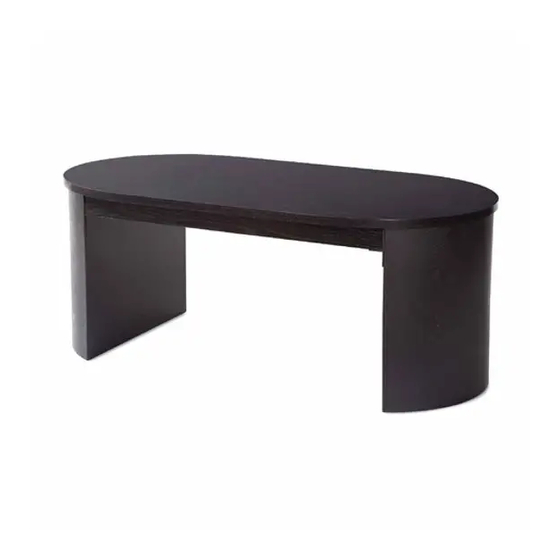

43030002 ARCHER COFFEE TABLE
Hardware list
A
Long Screw
Long Bolt
B
C
Metal Nut
D
Screw
E
Allen Key
F
Glide
①
③
③
②
6PCS
6PCS
6PCS
8PCS
1PC
6PCS
1
4
1PC
2PCS
2
4PCS
2PCS
3
