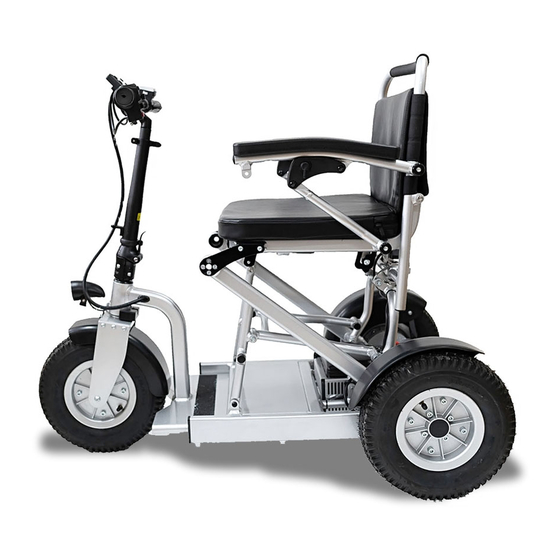

Summary of Contents for FreedomChair S1

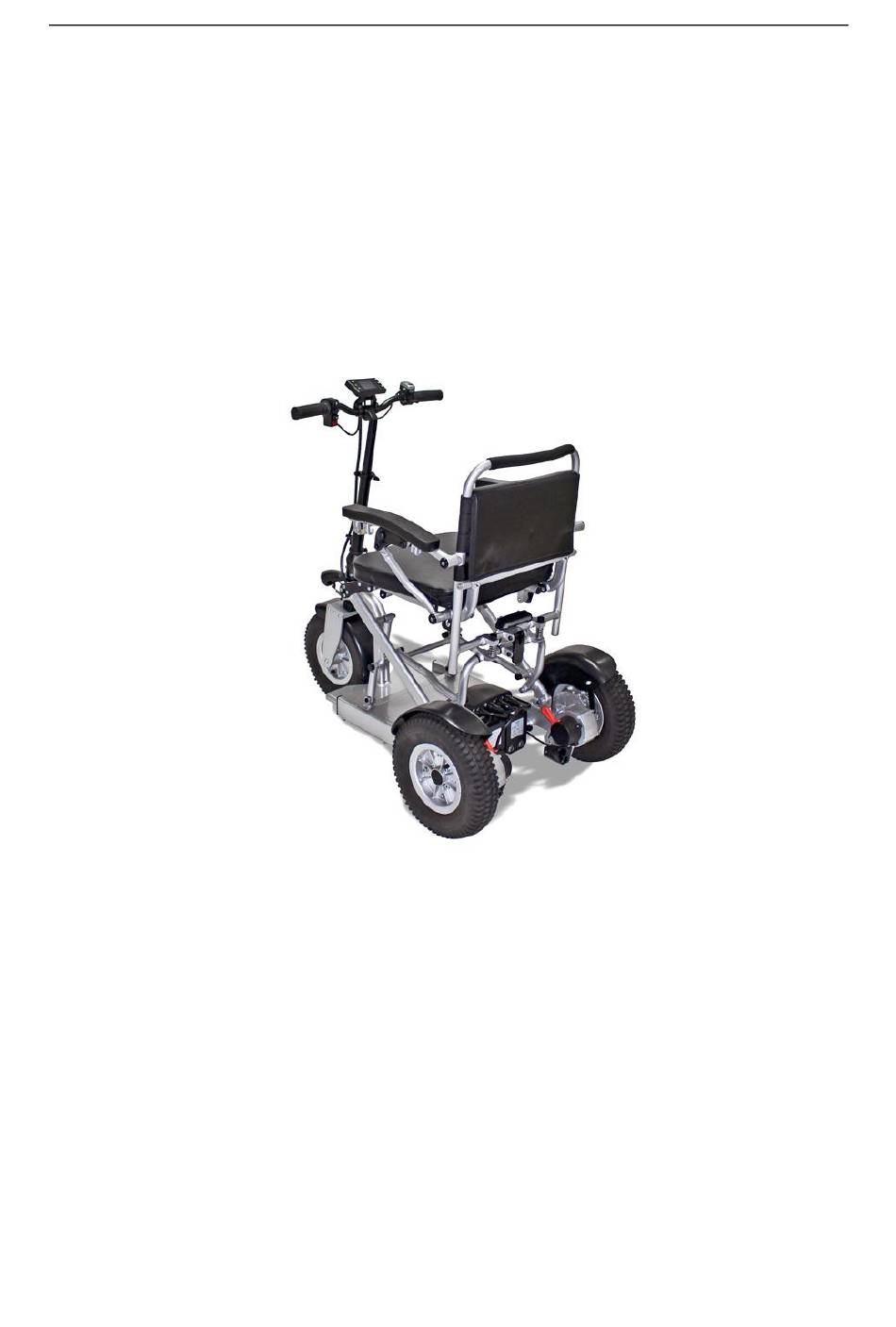

- Page 1 FreedomChair Scooter S1 Operating Manual FreedomChair Mobility Scooter S1 User Manual Version: V 1.0 Kunshan Aoshida Electric Technology Co.,Ltd...
-
Page 2: Table Of Contents
FreedomChair Scooter S1 Operating Manual Table of Contents Warnings and Precautions ......................1 *Please read this content before use* ...................... 1 Limitations of the user................................1 Warnings and Precautions to Observe ..........................1 Chapter 1. Foreword ........................2 1.1 Copyright ............................2 1.2 Statements ............................ - Page 3 FreedomChair Scooter S1 Operating Manual 5.4 Remote control key .......................... 10 5.4.1 Remote control key..............................10 5.5 Operation button table: ........................10 5.6 Controller components ........................10 5.7 Display Interfaces ..........................11 5.8 Functions of Controller ........................12 5.8.1 Power on and off ............................... 12 5.8.2 Driving..................................
- Page 4 FreedomChair Scooter S1 Operating Manual 10.3 Electrical schematics ........................24 10.4 Specifications of the Controller ....................... 25 10.4.1 Revisions .................................. 25 Chapter 11. Environmental protection ..................26 11.1 Name and content of toxic or hazardous substances or elements............. 26 11.2 Treatment at the end of product service life ..................
-
Page 5: Warnings And Precautions
FreedomChair Scooter S1 Operating Manual Warnings and Precautions *Please read this content before use* Limitations of the user The user must be of sound mind and judgment, must not be unresponsive in their upper limbs, or who are unable to use the scooter as prescribed by a physician. -
Page 6: Chapter 1. Foreword
Improper handling or failure of the user to follow the manufacturer's or its agent's instructions may result in product damage or even personal injury. 1.5 Basic product information • Product Name: FreedomChair Scooter S1 • Model specifications: see section 2.4 of this instruction manual • After-sales service information: see section 7 of this instruction manual... -
Page 7: Chapter 2. Overview
FreedomChair Scooter S1 Operating Manual Chapter 2. Overview 2.1 Product Features and principles • Using 2 powerful DC brushless motors, which have the advantage of low noise, high torque, energy saving and high efficiency, maintenance free and long life. • Using lithium-ion battery energy, which has the advantages of high energy density and long life. -
Page 8: Main Technical Specifications
FreedomChair Scooter S1 Operating Manual 2.4. Main technical specifications • Total length 1080-1230mm ±5mm (Base frame is extendable) Folded length 1080±5mm • Total width 640mm ±5mm Folded width 640mm ±5mm • Total height 920mm ±5mm Folded height 530mm ±5mm • Total weight: 38kg±1kg •... -
Page 9: Chapter 3. Security
FreedomChair Scooter S1 Operating Manual Chapter 3. Security 3.1 Identifier descriptions 3.1.1 Packaging and transport marking descriptions Fragile Stacked layer limit Keep Dry Upward 3.1.2 Label identification symbol descriptions Protective grounding Check accompanying document Showerproof showering Type B application section Within 60°... -
Page 10: Chapter 4. Use And Operation
FreedomChair Scooter S1 Operating Manual Chapter 4. Use and Operation 4.1 How to open and fold the mobility scooter 4.1.1 Opening the mobility scooter: use one hand to hold the backrest, the other hand to hold the seat cushion and push open, as shown in Figure 1. Fasten the locking latch under the backrest after fully unfolded, as shown in... -
Page 11: Battery Installation And Replacement
FreedomChair Scooter S1 Operating Manual 4.3. Battery installation and replacement 4.3.1 Insert the power lead into the battery and tighten it, as shown in Figure 7. To remove the battery, loosened and pull out the power lead, as shown in Figure 8, then press the sprung-loaded catch under the battery and slide out. -
Page 12: Seat Height Adjustment
FreedomChair Scooter S1 Operating Manual 4.6 Seat height adjustment Under the front of the seat, there is a cable which can be pulled to release the seat frame which can then be adjusted to suit the height of the user (Fig 12). The height is adjustable by combining the sliding mechanism at the rear of the seat together with the different height positions of the locking pins at the front of the seat. -
Page 13: Chapter 5. The Controller
FreedomChair Scooter S1 Operating Manual Chapter 5. The Controller The controller controls the forward, backward and turning of the scooter by independently controlling two brushless motors. The controller can realize differential functions by two motors speed difference control. Automatic speed down during turning. -
Page 14: Remote Control Key
FreedomChair Scooter S1 Operating Manual 5.4 Remote control key 5.4.1 Remote control key 5.5 Operation button table: Name Function Description Power switch Power on off control Speed increase button Speed gear control up Speed decrease button Speed gear control down Lengthen platform button Lengthen the scooter’s wheelbase... -
Page 15: Display Interfaces
FreedomChair Scooter S1 Operating Manual 5.7 Display Interfaces The controller includes 3 display interfaces and a power-up welcome interface. Following the welcome interface on power-up, the normal display interface is shown after about 2 seconds. The display interface can show the normal display interface, fault display interface and configuration test display interface. -
Page 16: Functions Of Controller
FreedomChair Scooter S1 Operating Manual 5.8 Functions of Controller 5.8.1 Power on and off Power switch controls power to the controller and will switch the scooter on off. The screen lights up when the controller is in on state and goes off when the controller is in off state. -
Page 17: Turning Light Function
FreedomChair Scooter S1 Operating Manual When the headlight switch is turned on, the headlight and the tail light are turned on at the same time. When the headlight switch is turned off, the headlight and the tail light are turned off at the same time. The headlight indicator on the panel indicates the headlight state. -
Page 18: Controller Configuration
FreedomChair Scooter S1 Operating Manual 5.9 Controller Configuration Characteristics of the scooter can be adjusted to satisfy different users' preferences by configuration of some of its parameters. ** NOTE: changing the scooter’s parameters is done entirely at the risk of the user. The national distributor or reseller of the scooter cannot be held responsible for any damage caused to the scooter’s components or any injury to the user caused by changes that could affect the safe operation... -
Page 19: Remote Control Key Learning Function
FreedomChair Scooter S1 Operating Manual Dec rate in normal Set the deceleration when the red BRAKE button is not pressed Dec rate in BRAKE Set the deceleration when the red BRAKE button is pressed Diff speed by turn Set the differential speed between the two wheels when the scooter... -
Page 20: Controller Troubleshooting
FreedomChair Scooter S1 Operating Manual 5.11 Controller Troubleshooting The controller monitors the motor, Accelerator lever, etc., and displays the fault information when there is a fault preventing the scooter from running. The controller can only display a maximum of 3 faults. - Page 21 FreedomChair Scooter S1 Operating Manual Com fault MC to Dis Loose or incorrect connection Verify that the connection is correct and reliable Controller failure Contact the manufacturer for maintenance Left driver fault Motor controller failure Contact the manufacturer for maintenance...
-
Page 22: Chapter 6. Battery Charging
FreedomChair Scooter S1 Operating Manual Chapter 6. Battery charging Note: If the mobility scooter is not used for a long period of time, it should be charged every 3 months to avoid permanent damage to the battery. Take the charger out of the bag, as shown in Figure 12 and connect the mains power lead to the charger. -
Page 23: Chapter 7. Storage And Transportation Of Mobility Scooters
FreedomChair Scooter S1 Operating Manual Chapter 7. Storage and transportation of mobility scooters 7.1 Folding Fold the mobility scooter and place it in a dry and ventilated place as shown in Figure 16. Note: If the mobility scooter is not used for a long period of time, it should be charged every 3 months to avoid permanent damage to the battery. -
Page 24: Chapter 8. Service And Maintenance Of Mobility Scooter
FreedomChair Scooter S1 Operating Manual Chapter 8. Service and maintenance of mobility scooter 8.1 Routine inspection and maintenance • Regularly (weekly or monthly, depending on the frequency of use) inspect the frame joints, such as screws and nuts, for looseness, corrosion, etc. -
Page 25: Cleaning And Disinfection
FreedomChair Scooter S1 Operating Manual 8.3 Cleaning and disinfection 5.4.1 Clean the frame, motor, and controller with a cloth moistened with diluted detergent, taking care to apply appropriate but not excessive force and not to use abrasive or alcohol-based cleaners. Avoid excessive moisture on electrical connections. -
Page 26: Chapter 10. Mobility Scooter Parts
FreedomChair Scooter S1 Operating Manual Chapter 10. Mobility Scooter Parts 10.1 Complete vehicle parts diagram... -
Page 27: Names Of Vehicle Components
FreedomChair Scooter S1 Operating Manual 10.2 Names of vehicle components... -
Page 28: Electrical Schematics
FreedomChair Scooter S1 Operating Manual 10.3 Electrical schematics... -
Page 29: Specifications Of The Controller
FreedomChair Scooter S1 Operating Manual 10.4 Specifications of the Controller Specification Parameter Parameter Value Comments Name Operating Voltage Range 23~30V Powered by 24V battery, scooters beyond the voltage range cannot run. Power off current Less than 2mA Power supply is turned off and the remote controller reception is active. -
Page 30: Chapter 11. Environmental Protection
FreedomChair Scooter S1 Operating Manual Chapter 11. Environmental protection 11.1 Name and content of toxic or hazardous substances or elements. Toxic substances or elements Part name (Pb) (Hg) (Cd) [Cr(VI)] (PBDEs) Lithium Battery ○ ○ ○ ○ ○ ○ motor ○... -
Page 31: Warranty Card
FreedomChair Scooter S1 Operating Manual Warranty card User Name Phone Number User information contact address Product serial Model Number Product number information Date of Purchase voucher purchase number Retailer Name Retailer’s Stamp Retailer information Phone Number Maintenance Service date Maintenance records personnel Manufacturer’s details...
