Summary of Contents for WMH Tool Group JET TSLT-770

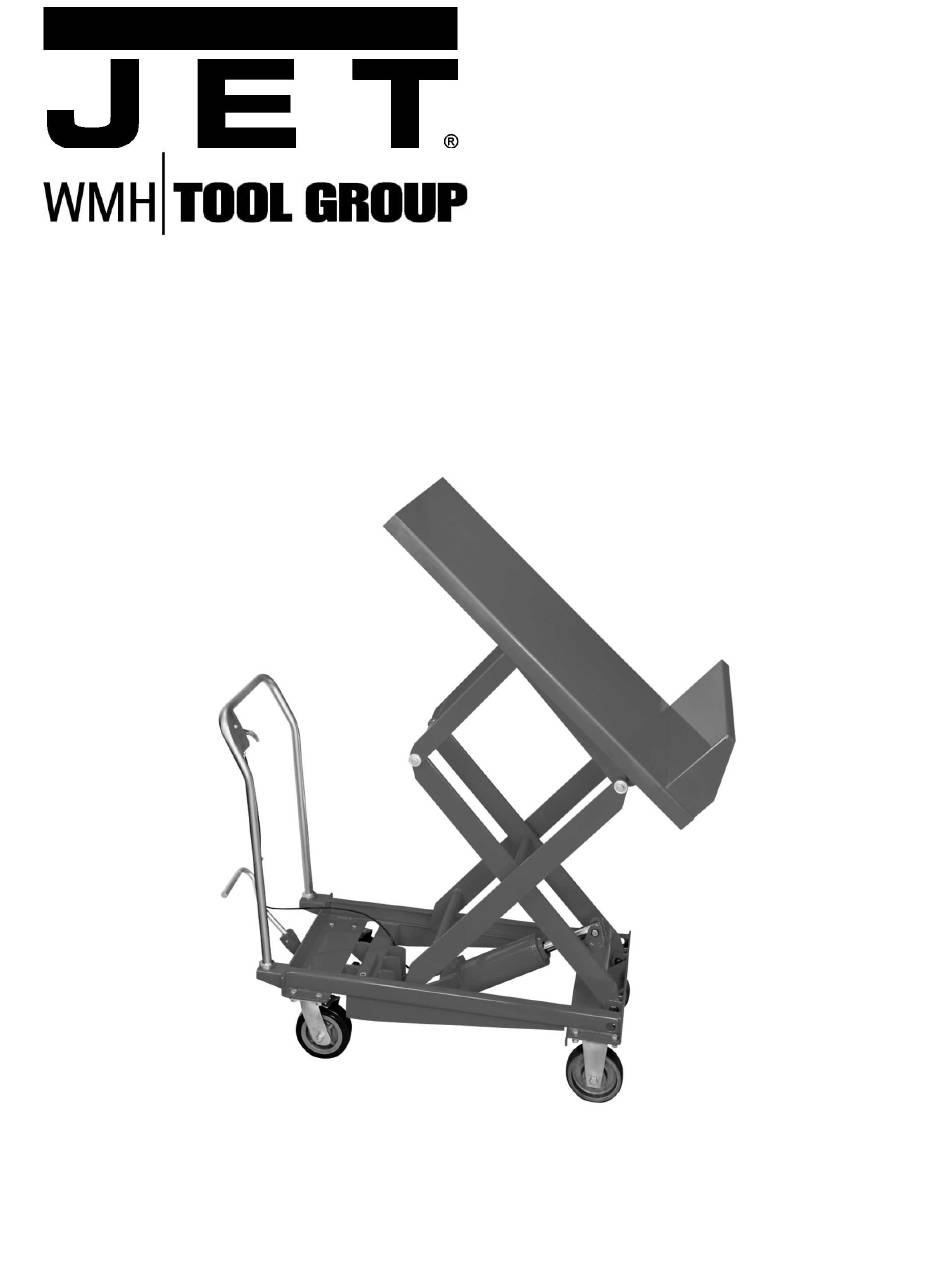

- Page 1 Operating Instructions and Parts Manual Tilting Scissor Lift Table Model TSLT-770 WMH TOOL GROUP 2420 Vantage Drive Elgin, Illinois 60123 Part No. M-140770 Ph.: 800-274-6848 Revision A 2/04 www.wmhtoolgroup.com Copyright © WMH Tool Group...
-
Page 2: Warranty And Service
Warranty and Service WMH Tool Group warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Repair Stations located throughout the United States can provide quick service or information. -
Page 3: Table Of Contents
Table of Contents Warranty and Service ..........................2 Warning..............................4 Introduction..............................5 Specifications ............................5 Unpacking ...............................6 Contents of the Shipping Container ......................6 Assembly..............................6 Operation..............................7 Maintenance............................7 Replacement Parts ..........................8 Parts List for TSLT-770 Tilting Scissor Lift Table...................9 TSLT-770 Tilting Scissor Lift Table .....................11... -
Page 4: Warning
Warning 1. Read and understand the entire owners manual before attempting assembly or operation. 2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with all of these warnings may cause serious injury. 3. -
Page 5: Introduction
If there are any questions or comments, please contact either your local supplier or WMH Tool Group. WMH Tool Group can also be reached at our web site: www.wmhtoolgroup.com. -
Page 6: Unpacking
Unpacking Open container and check for shipping damage. Report any damage immediately to your distributor and shipping agent. Read the instruction manual thoroughly for assembly, maintenance and safety instructions. Contents of the Shipping Container Tilting Scissor Lift Table Handle Assembly Buffer Assembly Foot Lever M12 x 25 Hex Cap Screws... -
Page 7: Operation
4. Route the cable (A, Figure 3) into the cable nut (B, Figure 3). Run the unsheathed end cable through lowering mechanism (C, Figure 3) and pull the cable tight by rotating the screw (E, Figure 3). Tighten the hex nut (D, Figure 3) using a 14mm wrench. -
Page 8: Replacement Parts
3. When finished, screw the oil plug back into the hole. NOTE: If you wish to completely drain and refill the hydraulic cylinder, first disconnect the cylinder from the scissor lift frame. Remove the oil plug and drain the oil. Reconnect the hydraulic cylinder to the frame and fill the cylinder with oil according to the instructions above. -
Page 9: Parts List For Tslt-770 Tilting Scissor Lift Table
Parts List for TSLT-770 Tilting Scissor Lift Table Index No. Part No. Description Size 1....TSLT770-1....Ram Piston................... 1 2....TSLT770-2....Dust Seal* ........... 30 x 38 x 7mm ....1 3....TSLT770-3....O-Ring* ............29.85 x 3.5mm ....1 4....TSLT770-4....Cover....................1 5....TSLT770-5.... - Page 10 Index No. Part No. Description Size 57 .....TSLT770-57 .... Cotter Pin ............ 3.2 x 25mm....... 1 ∅ 58 .....TSLT770-58 .... Clevis Pin ............ 14 x 49mm ....1 59 .....TSLT770-59 .... Clevis Pin Cap ..................1 60 .....TSLT770-60 .... Link Plate....................2 61 .....TSLT770-61 ....
-
Page 11: Tslt-770 Tilting Scissor Lift Table
TSLT-770 Tilting Scissor Lift Table... - Page 12 WMH Tool Group 2420 Vantage Drive Elgin, Illinois 60123 Phone: 800-274-6848 www.wmhtoolgroup.com...
