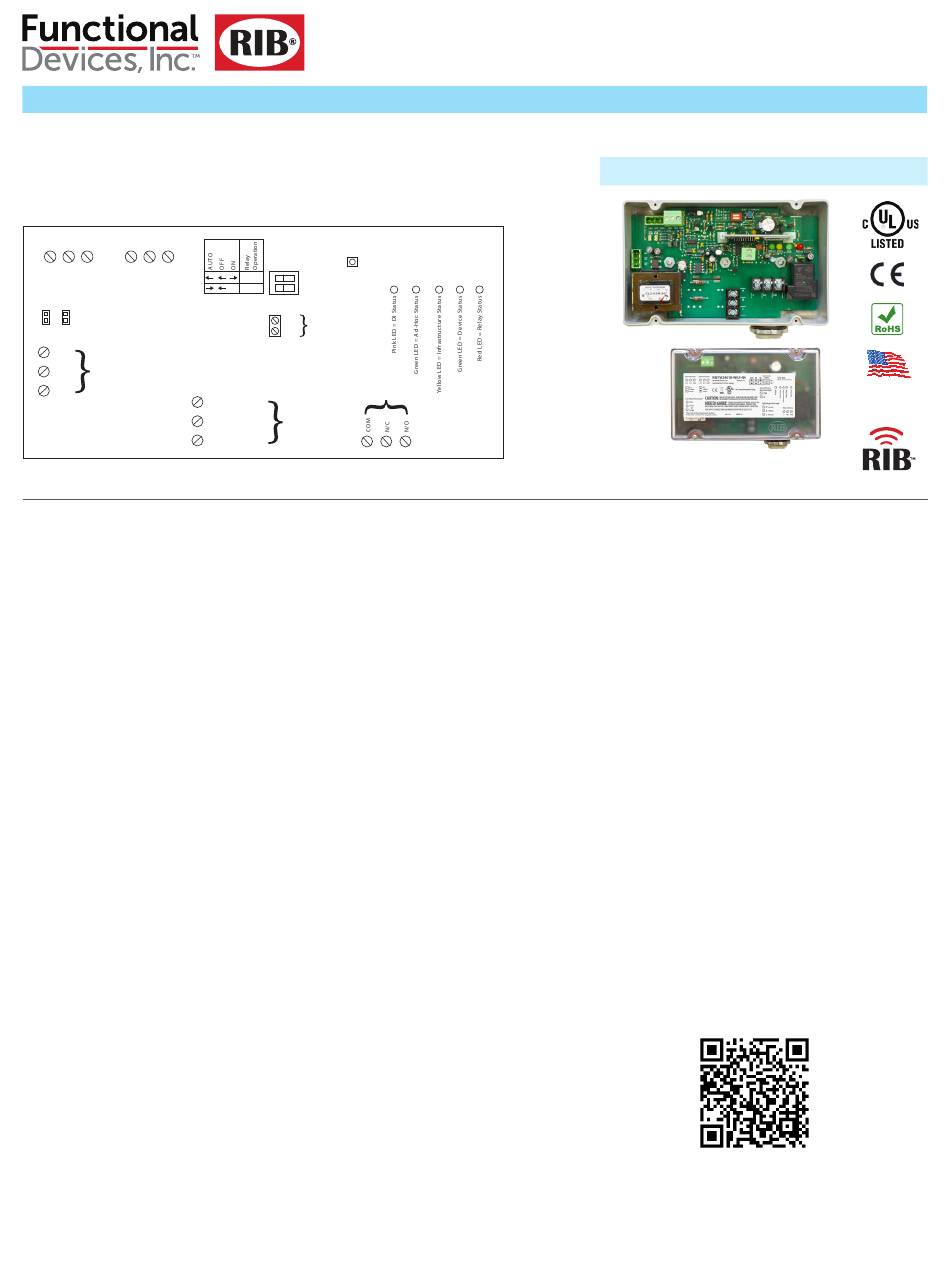

Functional Devices RIB RIBTW2401B-WIUI-N4 Manual

Functional Devices, Inc.
RIBTW2401B-WIUI-N4
Wifi IEEE 802.11 Network Enclosed I/O Device: One Discrete Output (20 Amp Relay SPDT +
Override), One Discrete Input (Dry Contact, Class 2); Two Universal Inputs;
Universal Input 1 Universal Input 2
+ 5V UI1 COM + 5V UI2 COM
UI1 UI2
420 420
COM
24V Optional
24Vac
Power Input
24Vdc
Specifications
# Relays & Contact Type: One (1) SPDT Continuous Duty Coil
Expected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Operate Time: 18mS
Green LED:
Device Status
Green LED:
Wifi Ad-Hoc Status
Yellow LED: Wifi Infrastructure Status
Pink LED: Digital Input Status
Red LED: Relay Status
Dimensions: 4.28˝ x 7.00˝ x 2.00˝ with .75˝ NPT Nipple
Wires:
16˝, 600V Rated
Approvals: UL Listed, UL916, C-UL
FCC, CE, RoHS, Wifi Certified ASD Device
Housing Rating: UL Accepted for Use in Plenum, NEMA 4X
Gold Flash: No
Relay Override Switch:
DIP Switch Control
Wifi:
IEEE 802.11 b/g/n Compatible, (G)
54 Mbps Data Rate
-91 dBm Min. Sensitivity
+102 Bm Max Output Power
Currently Unsecured Connection
(WPA-PSK or WPA-2-PSK Available)
Supports PING and ARP
DSSS Modulation
CAUTION: Remove all connections to UI 1 and UI 2 when setting input.
Universal Input: Configurable by internal device web page, accessible in either Ad-Hoc or Infrastructure.
• Analog value returned, user configurable min. and max. scale, and label, 0-5 Vdc, 0-10 Vdc, or 4-20 mA
• Direct temperature reading from Type T2 Thermistor.
• Digital Input, connect between +5 Vdc and UI input.
*
4-20 mA, when used, requires jumper to be installed on UI set for 4-20 mA input. Jumper MUST be
removed when UI input used as anything other than 4-20 mA.
• p: 800.888.5538 • f: 765.883.7505
RESET to Factory
Defaults Pushbutton
SW 1
SW 2
X
General
COM Purpose
Dry Contact
DI
Input
Relay Contacts
Term A: (Not used)
120 Vac Optional
Term B: 120 Vac
Power Input
Term C: Neut
• www.functionaldevices.com
24 Vac/dc, 120 Vac Power
Contact Ratings:
20 Amp Resistive @ 277 Vac
5 Amp Resistive @ 480 Vac
20 Amp Ballast @ 277 Vac
16 Amp Electronic Ballast @ 277 Vac (N/O)
10 Amp Tungsten @ 120 Vac (N/O)
1110 VA Pilot Duty @ 277 Vac
770 VA Pilot Duty @ 120 Vac
1 HP @ 120 Vac
2 HP @ 277 Vac
Power Input Ratings:
158 mA Max @ 24 Vac
110 mA Max @ 24 Vdc
55 mA Max @ 120 Vac
Available TCP/IP Settings:
•
IP Address (Static)
•
Port Number
•
Subnet Mask
•
Gateway
• Ad-Hoc mode
• Infrastructure mode
• Scan for wireless networks
• sales@functionaldevices.com
Network Compatible Relay
Shown
With
Cover
Code Version 3.3.9
Device Settings:
•
Local Override
•
Reset to Network Defaults Pushbutton
Power Input:
24 Vac = Terminal Strip (20 Vac min. ; 28 Vac max.)
24 Vdc = Terminal Strip (24 Vdc min. ; 28 Vdc max.)
120 Vac = Wht/Blk Wire
Neutral = Wht/Yel Wire
Device Settings by Network:
•
Power up default relay state
•
Host name and location labels
•
Relay bound to digital input
• Current threshold for go/no-go status
• Load voltage entry for power conversion
• Setup Instructions available
on website.
http://www.functionaldevices.com/pdf/
*
bulletins/B1783_393223.pdf
Or scan QR code with your smart phone.
Made in USA
Meets
"Buy American"
of ARRA 2009
Wi-Fi RIB™
082014
