Summary of Contents for Stark KBQ301A

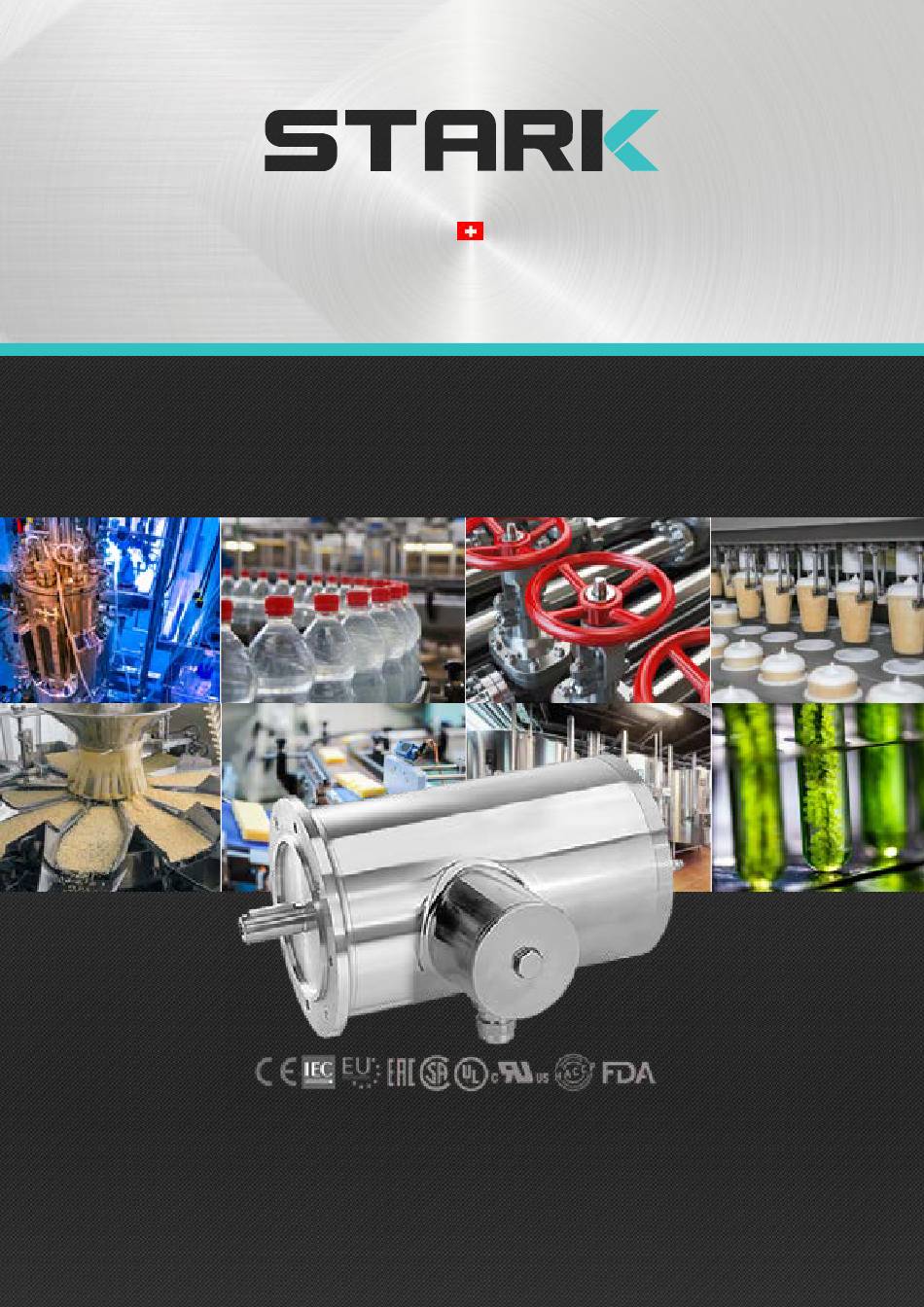

- Page 1 S T A I N L E S S S T E E L Gegründet in der Schweiz Founded in Switzerland STARK Stainless Steel Motors Foodsafe quality drives OPERATING & MAINTENANCE INSTRUCTIONS EBS ECONOMY SERIES IEC E B S E C O N O M Y S E R I E S I E C...
-
Page 2: Table Of Contents
Contents ECONOMY SERIES IEC General info & caracteristics Important notes Safety notes Motor & type designation Motor nameplate Configuration type Packaging, transport, delivery, storage and preparation Mechanical installation Electrical installation Anti-condensation heater Temperatute monitoring elements (PTCs) Frequency inverters Maintenance Motor drawing & parts S T A I N L E S S S T E E L... - Page 3 European distribution network Data & Support Price & Quality Accurate data, R&D, testing and native support Very favorable price-to-quality ratio for all within one working day STARK Stainless Steel motors Fast Delivery Safe Packaging International Distribution Foodsafe Quality Drives...
-
Page 4: General Info & Caracteristics
Operating & Maintenance instructions Stainless Steel Motors S T A I N L E S S S T E E L Economy Series IEC Certification: CE, UL, CSA, EAC, CCC Material: AISI 304 Power/output: 0.18 – 3kW Seals: VITON/FPM IE class: IE3 ≥0,75W Mounting: B14A, B14B, B5, B3 IEC size: 63 –... -
Page 5: Safety Notes
Operating & Maintenance instructions Stainless Steel Motors S T A I N L E S S S T E E L SAFETY NOTES The following safety notes apply to the usage of stainless-steel motors. When using geared motors please refer also to the safety notes for gearboxes in the corresponding manual. All transport, storage, fitting, connection, installation, as well as repair and maintenance works may only be performed by qualified personnel. -
Page 6: Motor Nameplate
MOTOR NAMEPLATE The STARK stainless-steel motors are labelled with a laser-applied type designation. The nameplate is attached to the housing such that it can’t be removed. This is done for hygienic reasons as it eliminates the possibility for contaminant accumulation and bacteria growth behind the nameplate. -
Page 7: Packaging, Transport, Delivery, Storage And Preparation
PACKAGING, TRANSPORT, DELIVERY, STORAGE AND PREPARATION Packaging All motors are shipped in sturdy packaging. Depending on weight, a suitable box is chosen, which may be placed on a pallet. The package is labelled with the necessary stickers. Delivery Please check all shipments immediately upon receipt for possible damages in transport. Before unpacking, check to ensure that the package is not damaged. - Page 8 4. Do not use damaged seals for cable connections and blind plugs. Replace embrittled seals. 5. STARK stainless-steel motors are suitable for use in extreme (washdown) environments such as those found in the food and pharmaceutical industries. STARK stainless-steel motors are not intended and are not intrinsically suitable for underwater use.
-
Page 9: Electrical Installation
ELECTRICAL INSTALLATION Please follow the safety instructions when installing. General notes 1. Connect motors only according to the wiring diagram which is attached to the motor. 2. Do not connect or start up the motor if the wiring diagram is missing. 3. - Page 10 ELECTRICAL INSTALLATION Remove terminal box cover. Make sure that the O-ring seal and threads will not be damaged. Setup motor cables in star or delta connection according to nameplate. The black/blue marked wires are for the PTCs. The red marked wires are for the anti-condensation heater 230V.
-
Page 11: Anti-Condensation Heater
• Motor on = anticondensation heater off • Motor off = anticondensation heater on Specifications: Model Dimensions (l*w*thickness) Length outgoing line Power Rated Voltage Rating Motor KBQ301A 220x12x2,5x4,5 mm 160 mm 220V KBQ302A 260x14x2,5x4,5 mm 340 mm 220V H71~H90 KBQ303A... -
Page 12: Frequency Inverters
PTC sensors. The PTC thermal protectors (155°C) are installed by STARK as standard and are only suitable for use in control circuits and must never be connected in series with the motor. -
Page 13: Motor Drawing & Parts
MAINTENANCE The fast-running secondary shaft is fitted with a special food-grade brown VITON oil seal to prevent ingress of moisture and dirt. We recommend always replacing these parts during maintenance. If a fan cap is present (TEFC series), the intake and exhaust openings may not be obstructed, and the airflow may not be restricted. - Page 14 Gegründet in der Schweiz Founded in Switzerland Gemeinsam sind wir STARK Together we are strong S T A R K - S T A I N L E S S - S T E E L - E L E C T R I C - M O T O R S . C O M...
