Thank you for your purchase. Information has been enclosed regarding the
installation, specifications, and wiring of your solid-state assembly.
Please read and follow all instructions carefully before installation. Only qualified
technicians should install this equipment.
If you have any questions regarding your equipment, please do not hesitate to
call us at 773-342-4900, and we will be happy to assist you. We are open from
8:00 am-4:30 pm Central Time.
Product Information Packet

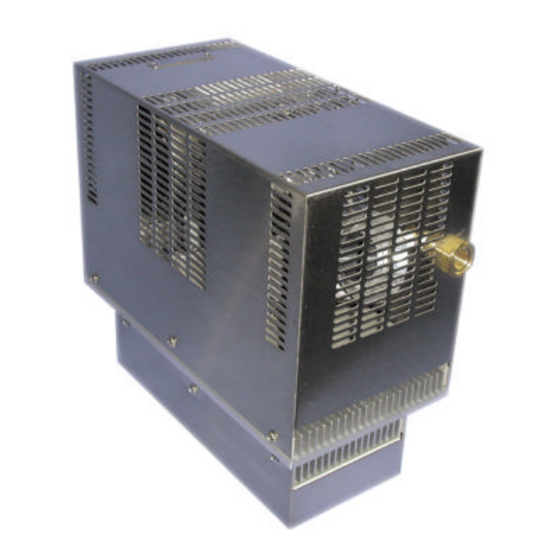

Model AHP-1200XP-1
NEMA 4-X, Class 1 Div 1, Solid State Air Conditioner
for Remote Temperature Control
Part #0-3070-2-016
Included in this packet you will find:
Installation Notes for Air Conditioners
Vortex Air Amplifier Notes
Assembly Drawing # SK020503
Wiring Drawing # 1200-B-E73
Mouting Cut Out Dimension
Warranty Information
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for teca AHP-1200XP-1
Summary of Contents for teca AHP-1200XP-1
- Page 1 Product Information Packet Model AHP-1200XP-1 NEMA 4-X, Class 1 Div 1, Solid State Air Conditioner for Remote Temperature Control Part #0-3070-2-016 Thank you for your purchase. Information has been enclosed regarding the installation, specifications, and wiring of your solid-state assembly.
- Page 2 REQUIREMENTS • Clean and dry compressed air supply • Purged enclosure • 120 VAC Input voltage • Temperature control INCLUDES • Mounting gasket and hardware • Power input line cord PERFORMANCE CURVE 25°C Ambient 60°C Ambient TECA www.teca-usa.com 1-888-TECA-USA (832-2872)
- Page 3 LISTING & CLASSIFICATION: The AHP-1200CXP by TECA is the first solid state air conditioner designed for use in Class 1 Division 1 Groups B, C and D hazardous environments in North America. The AHP-1200CXP features a unique air moving device that eliminates static discharge that traditional fans can generate.
- Page 4 Important Installation Notes for Air Mounting Styles: The only recommended mouting orientation for this product is vertical mounting with the compressed air input fitting looking downward as shown in the sketch. It is important to consider interior air flow patterns when determining the mounting location.
- Page 5 Maintenance: Since the technology is solid-state, the maitenance is minimal. The only moving parts are the fans. It is recommended for harsh or dirty environments that the heat sinks be cleaned from time to time. This can be accomplished by directing compressed air over the external fins or on NEMA 4 versions by hosing the unit down.
-
Page 10: Mounting Cutout Dimensions
MOUNTING CUTOUT DIMENSIONS 5.76 2.88 2.88 3.125 3.125 12XØ0.218... - Page 11 : (a) TECA is notified of the defect in writing by certified mail within 14 days of the date of discovery; (b) TECA may then either, at its sole discretion, inspect the product at Buyer’s location, or require that the product be made available at Buyer’s expense at TECA’s premises for TECA’s inspection within 14 days of...
