CMI Health PC-66H Quick Manual

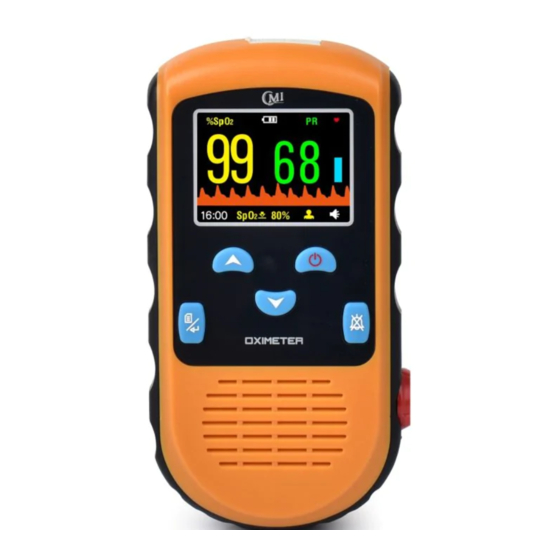

1. Product Overview
Data interface
Display Screen
Navigation Key
Mode/OK
OXIMETER
Any questions?
Contact us at:
Email: info@cmihealth.com
Phone: 888-985-1125
Fax: 866-222-0128
cmihealth.com
2. Screen Display
SpO
2
Reserved Port
Mark
SpO
2
Value
Pulse
Plethysmorgram
Current
time
Power/Back
Recall/Mute
3. Changing Batteries
SpO Probe
2
Connector
Turn counter-clockwise
to open
1.
Open the battery compartment
with a coin. Turn the screw
counter-clockwise to open.
Battery Pulse Rate Memory
indicator Mark full icon
Pulse rate
symbol
Pulse rate
value
Pulse strength
bar graph
Sound
indicator
Current SpO lower Patient Type
2
alarm threshold
2.
Replace all three old batteries
with three new batteries.
*Please DO NOT mix new and
used batteries or use
rechargeable AA batteries.
How to Use and Take
4.
a Measurement
Line up arrow signs, then insert cord.
Open cap and connect converter cable with the other end
of SpO sensor.
2
Insert one finger into the sensor and start your
measurements.
