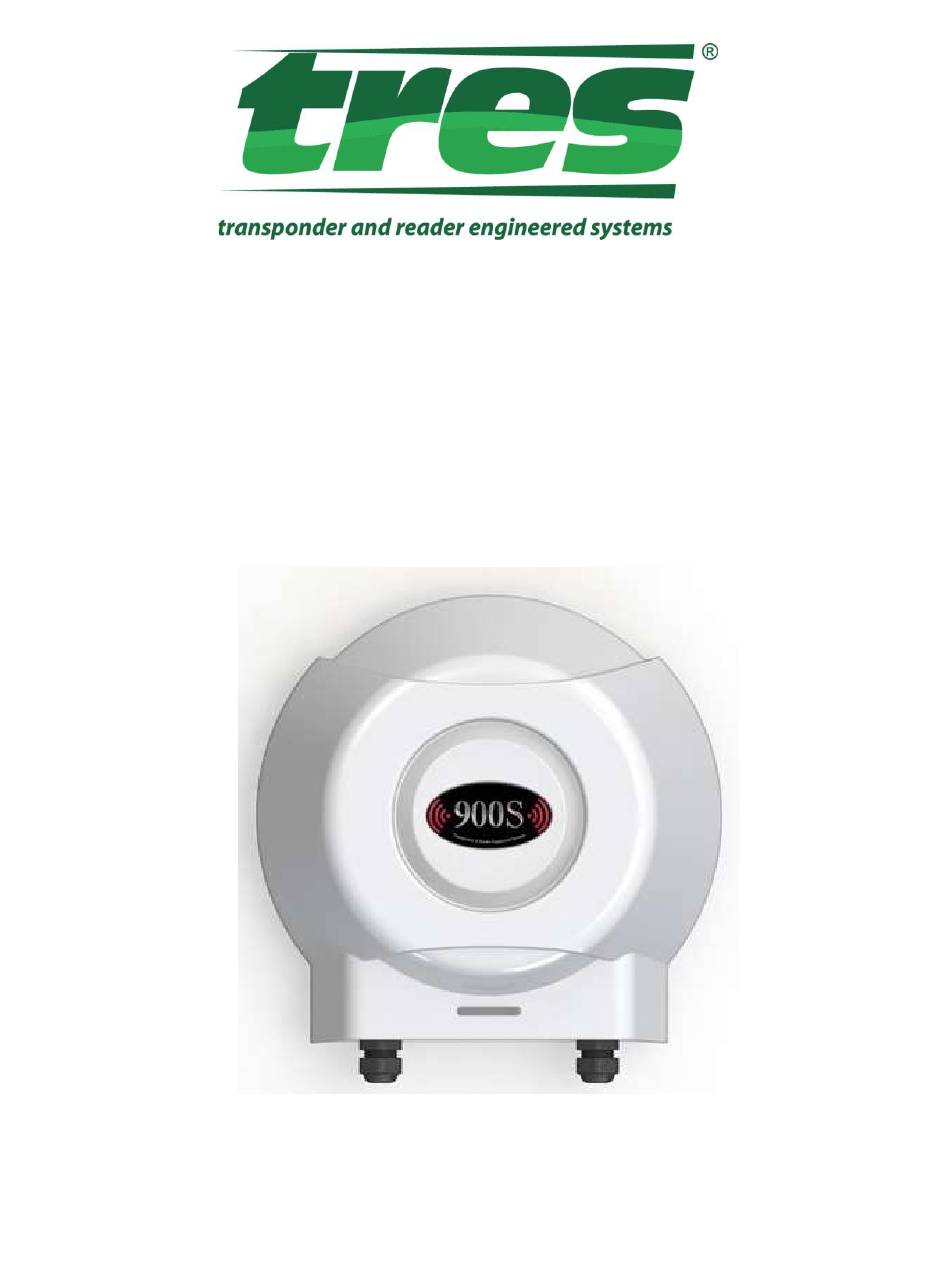

- Page 1 tres900s Operations Manual Revision A – 6/21/2019...
-
Page 2: Table Of Contents
EQUIREMENTS ........................3 ELAY ESCRIPTION SOFTWARE DESCRIPTION ..................... 3 ......................... 4 PTION EATURE ...................... 4 EFAULT TRES S SETTINGS CONNECTING TO TRES900S....................4 ........................4 IRING IAGRAM LED Control ..........................5 RS232 Control .......................... 5 RS485 Control .......................... 5 Earth ............................5 Power Connect ......................... - Page 3 Revision A Reader section .......................... 8 Serial Comm Section ........................ 8 Wiegand Section ........................9 IDs Section ..........................9 Relay ............................10 INDICATORS ..........................10 LOG WINDOW .......................... 10 SPECIFICATIONS........................11 READER INSTALLATION GUIDE ..................11 ..........................11 OUNTING ......................12 NSTALLATION VERVIEW Trigger Function ........................
-
Page 4: Product Description
SPI Flash IC to restore the program and store valuable settings Product Identity The tres900s will be given an engineering part number. This part number prefix will start with the prefix number ‘900S’. The firmware version will be ‘900S.0.0.xx’. Designated as: Model # Board rev... -
Page 5: Product Operations
Revision A Product Operations Hardware Description The tres900s Reader comes with many rich features like multi-protocol and multi-tag reading, integrated and environmentally protected packaging and long-distance reading. The tres900s Reader is a fully integrated reader with a RF module IC, power conditioning, built-in circular polarized antenna and packaged in a weather-tight and UV protected housing. -
Page 6: Wiegand Interface
LED. Software Description In this section, we will try to describe options that can be configured in the field. TRES developed a GUI that will be self-contained (.exe) so it can be run easily in the field and not have to install it on the user’s device. -
Page 7: Option Feature
Revision A Option Feature These below options should be incorporated into the new setup program that would be used in- house and in the field by installers to configure the reader for their installation site they are presently at. Features that should be included are: ... -
Page 8: Led Control
This is where you get power to the reader from TRES supplied regulated power supply. Remember to use the TRES regulated DC supply +5vDC @ 2A. The reader has a built-in linear regulator with EMI, reverse polarity and overvoltage protection. -
Page 9: Relay Control
Revision A Relay Control You can use this relay to control a power relay or an external LED that needs more power than supplied. You could put 12vDC on one side of the relay and an LED to ground on the other. The relay is a form C NO relay. -
Page 10: Upper Left Tools
Revision A Upper Left Tools In the upper left section of the tres900s Setup utility you will see three (3) icon buttons, the one that looks like a gear (next to check mark) has the following four (4) options: 1. Open Tag Display, this is a feature that will display a large window in the upper portion of the computer screen that will display any valid 26-bit Wiegand that is read by the... -
Page 11: Rf Section
Revision A Set Parameters, this is the icon button you press to update the Reader settings with your changes you make. After you make your changes to the reader, you will have to press this icon button in order to send your changes to the flash memory. Set Defaults, in case you get lost and want to reset all setting to factory default, you would press this icon button to restore all your setting to the factory default mode. -
Page 12: Wiegand Section
Revision A Wiegand Section This is where you can modify your Wiegand settings. You normally would not need to modify the Wiegand settings, but if you are running longer cable, then you may have to. To modify the Wiegand timing, go to the Wiegand Setting section of the Setup Software, then select the desired timing parameters. -
Page 13: Relay
Revision A You can also select the Enter range of data box and enter the starting ID then the ending ID. You have up to 100 different IDs. Once completed, just press the OK to save or Cancel to not save them. You now need to press the Send to Reader button to update your changes into the readers flash memory. -
Page 14: Specifications
Revision A Specifications Item Details tres900s Operating Frequency 902.75MHz～927.25MHz @ 500KHz hop (50 total hops) RF Protocol ISO18000-6B, EPC Class 1, EPC Class 1 GEN 2 Operating Method Frequency Hopping Spread Spectrum (FHSS) Antenna Internal 7dBi circular polarized Max RF Power 30 dBm (1 Watt) RF Power Range 10~30 dBm, Software Adjustable... -
Page 15: Installation Overview
Revision A Figure 7 Installation Overview The Reader is supplied in a weatherproof enclosure for direct outdoor installation or can be placed indoors, such as in a guardhouse, or close to other electronic equipment. The Reader outputs the decoded ASCII data to an access control unit via standard data cabling. The system outputs data in both the standard Wiegand and serial RS232 outputted simultaneously. -
Page 16: Wiegand Panel Wiring
Revision A Wiegand Panel Wiring Serial Port RS232 Wiring Troubleshooting Guide Q: To confirm that the unit is operating properly Confirm the beeper is audible when a good tag is presented or when power is first applied. If it is not, remove power. -
Page 17: Wiring Guide
Revision A Wiring Guide Selecting the correct size and type of wire will enhance the performance and reliability of your system. The size of the wire must be large enough to carry the maximum current expected without undue voltage losses. All wire has a certain amount of resistance to the flow of current. This resistance causes a drop in the voltage from the source to the load. -
Page 18: Limited Warranty
Advance Replacement, subject to normal credit terms and conditions. Customer will be responsible for shipping the RMA products to TRES at address listed on the RMA form and clearly marking the outside of the box with the RMA number. If the reader(s) are covered under this warranty, then a credit will be issued against the Advanced Replacement invoice.
