Newtech Flovend 1 Manual

Flower vending machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Flower vending machine
«Flovend 1»
Manual
2014.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flovend 1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Newtech Flovend 1

  • Page 1 Flower vending machine «Flovend 1» Manual 2014.

  • Page 3: Table Of Contents

    Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 3/30 Content Content ................Ошибка! Закладка не определена. Description ............Ошибка! Закладка не определена. 1.1. Purpose ..............Ошибка! Закладка не определена. 1.2. Machine operation ..........Ошибка! Закладка не определена. 1.3. Control card ............Ошибка! Закладка не определена. Machine pre-starting procedures ......
  • Page 4 Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 4/30 Machine’s completing units ........Ошибка! Закладка не определена. Warranty .......................... 29...

  • Page 5: Description

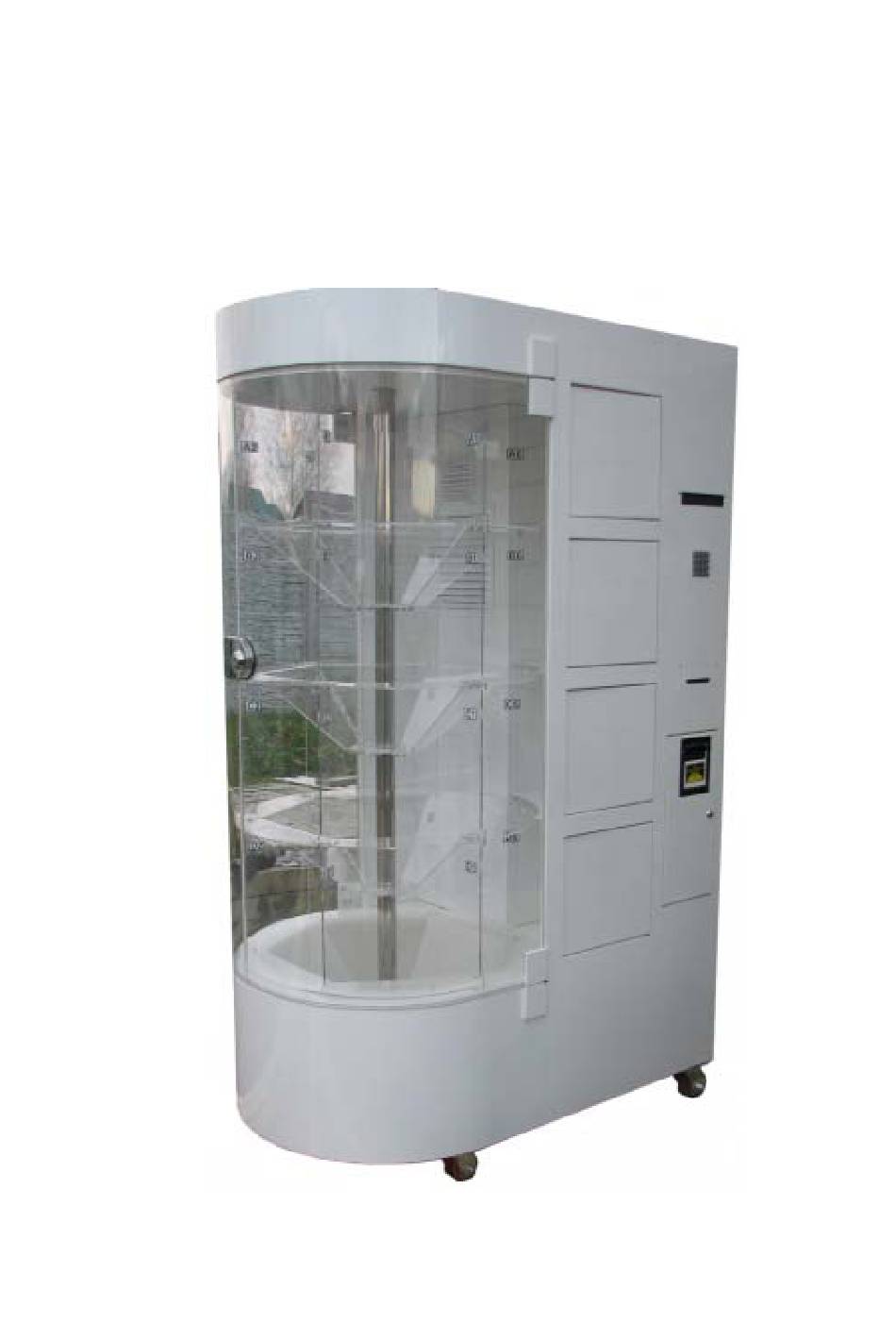

    Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 5/30 Description 1.1. Purpose Flower vending machine «Flovend» (hereinafter machine) is designed for purchase the flow- ers in bouquets or by a single piece (depending on configuration). There is a general view of the machine on the Figure 1.
  • Page 6 Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 6/30 Display stops in the necessary position and automatically opens the door of the desired level for flower’s issue in the moment of the order. Machine structure is shown on the Figure 2. Technological part is designed with the main control board, power supply, the power board of the machine’s power contour, frequency converter, cash acceptor, receipt printer, keyboard, cooling unit, water collecting tank(condenser tank).
  • Page 7 Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 7/30 Pic. 2. Machine structure 1. Machine body; 10. Shelf levels; 2. Control board; 11. Indicator; 3. Receipt printer; 12. Aspirator; 4. Cash accepter; 13. Keyboard; 5. Doors for goods issue; 14.

  • Page 8: Control Card

    Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 7/30 Control card Figure 3 shows the control card with the connector designation and other main elements. 11 12 13 Fig.3 Machine control card Units connected to the card and main elements indicated on the Figure 3: 1.

  • Page 9: Machine Pre-Starting Procedures

    Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 8/30 Machine pre-starting procedures 2.1. Installation Flower vending machine «Flovend» i s mounted on any flat horizontal surface right under its width and depth (see section 7). Body should not deviate more than 10 degrees in any plane during operation;...

  • Page 10: Machine Settings

    Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 9/30 The machine is ready for usage after the inscription on the display "ENTER the CODE of the BOUQUET". After that, the machine is ready for operation. Non-manual workers are not required, except the cases of using the service menu (for example, setting the cost of the bouquet, adding flowers or collection).

  • Page 11: Service Menu

    Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 10/30 Service menu 4.1. Service menu navigation and parameter variation. Service menu navigation and parameter variation is made with the help of the keyboard (Fig.6) Рис. 5. Keyboard. Key designation. To move in the menu following keys are used: A –...

  • Page 12: Service Menu Structure

    Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 11/30 4.2. Service menu structure Service menu structure is shown in the Table 1 with stated menu option and submenu. Тable 1. Service menu card Menu option Submenu 1 Submenu 2 Settings Display’s zero position Date/Time...

  • Page 13: Detailed Description Of The Menu Options

    Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 12/30 4.3. Detailed description of the menu options 4.3.1. Menu option - Settings Settings> Display’s zero position Purpose: display stop settings, opposite the door of the bouquet issue On the display: Choose the speed 1,2,3.
  • Page 14 Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 13/30 Settings> TIN Purpose: set TIN printed on the check. On display: TIN. 12 numbers 323500157503 Settings > Support number Purpose: set Support number printed on the check and indicator and indicator in case of ma- chine’s malfunction.
  • Page 15 Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 14/30 Settings> Statistics Settings> Statistics > Statistics server. IP address Purpose: enter Statistics server IP address. Enter address digit with three numbers. Add ze- roes before the numbers if there is digit or double digit numbers. On display: Statistics server address 188.143.235.053...

  • Page 16: Menu Option. Set Bouquet's Price

    Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 15/30 4.3.2. Menu option. Set bouquet’s price. Purpose: set bouquet’s price. Maximum price: 65000 рублей. Bouquet’s price divisible to 10 rubles. If set amount is not divisible to 10 it rounds to 10. Set bouquet’s price >...

  • Page 17: Menu Option Download Bouquets

    Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 16/30 Downloading time: 21/06/14 10:51:00 Download all bouquets? * - Yes, # - No. Download bouquets > Download level On display: Choose the level: A level Choose the level with А, В keys, confirm С. On display (e.g.
  • Page 18 Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 17/30 Pic. 6. Collection check For machine with BNA version without сhange On display (e.g. amount equals 25500 rubles.): Total, rubles: 25500 Execute collection? * - Yes, # - No. In case of collection confirmation check is printed For machine with BNA version with сhange (NV200+Smartpayout) On display (e.g.

  • Page 19: Menu Option. Download Change

    Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 18/30 Pic. 7. Cash box NV200 4.3.6. Menu option. Download change Purpose: enter the notes to change module. You may enter up to 78 notes of different value, putting them into the hole for note’s acceptance, among them 10 rubles - 9 pieces, 50 rubles - 12 pieces, 100 rubles –...

  • Page 20: Menu Option. Display Rotation

    Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 19/30 Pic. 8. Check information about machine state On display: Print information about machine state? * - Yes, # - No. Press * to confirm. 4.3.8 . Menu option. Display rotation. Purpose: display rotation under downloading the bouquet into the machine.

  • Page 21: Bouqets Reservation And Payment Mark

    Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 20/30 4.3.9. Bouquets reservation and payment mark. Option is available since version 2.0.5.6 To reserve bouquets (with the subsequent machine payment) you shall: 1 If the bouquet is not downloaded , download it in the Service menu. 2 In the menu option “RESERVE THE BOUQUET choose the box and confirm the reservation.

  • Page 22: Process Of Purchasing

    Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 21/30 Process of purchasing Purchase is made as follows: Enter two-digit code which is stated on each sectors near the bouquet with the sign «ENTER BOUQUET’S CODE: … » Then: « ENTER BOUQUET’S CODE: А3», if wrong code was entered, see on display «EN- TERED WRONG CODE», if right code is entered, see on display «BOUQOUTE’S PRICE 1200 ruble».

  • Page 23: Machine Service

    Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 22/30 Machine service During machine operation there is condensation in the fridge, which collects in the condensate tank. Condensate tank must not be overfilled. Remove entrained water in time. Clean the machine at least once per two month. Most susceptible to dust accumulation places are: the condenser, compressor, exhaust fan, as well as the places through which enters and removes the air: the technological holes on the back door, in front of the condenser, and aspirator.
  • Page 24 Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 23/30 Pic. 12. Removal of jamming.

  • Page 25: Viewer /Statistics Online Management

    Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 24/30 Viewer /statistics online management. Use Internet for statistics display. It is necessary to install free Java version( e.g. Java 5), un- zip "FLOVEND Statistics" on your computer and run FlowerMachineClient file. Enter the user- name/password given to you as on Fig.
  • Page 26 Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 25/30 Error – In line is shown errors with the codes: 0 No error 11 No power 220V 21 Printer 31 Thermometer 41 Cash acceptor 51 Doors 52 Doors. Time opening is exceeded. 53 Doors.
  • Page 27 Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 26/30 Details: Set prices is shown in boxes, location address of the machine, machine №, detailed infor- mation of current machine’s state, and latest collection time. It is possible to set a mobile phone for SMS errors.

  • Page 28: Machine's Technical Characteristics

    Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 27/30 Machine’s technical characteristics 8.1. Technical characteristics The machine corresponds to the execution of UHL 4 according to GOST 15150-69 "Ma- chines, instruments and other technical units. Machine’s for different climatic regions. Categories, service conditions, storage and transportation in terms of the climatic factors of the environment", but for operation at temperatures from +5 to +35 °C.
  • Page 29 Автомат продажи живых цветов «ФЛОВЕНД» - Руководство по эксплуатации 28/30 Machine’s completing units of machine 1. Assembled vending machine - 1 pce; With following components: • Central control unit (electronic card) - 1 pce; • Conditioning system Aspera Embraco – 1pce; •...
  • Page 30 Contact the manufacturer for technical support as follows: «Newtech» LLC 241041, Bryansk, Ryabinovaya str., bld..8А Tel.: +7 (4832) 30-14-95 Mobile.:8-905-177-15-15 www.newtechrussia.ru e-mail: newtech2000@mail.ru WARNING: Used in this manual trademark "FLOVEND" and associated images are the property of "Newtech" LLC and is protected by Federal law.
