1x6 3G/HD/SD-SDI Distribution
Amplifier with Reclocking
User Manual
0
1
6
0
1
6
rev: 130716
Made in Taiwan

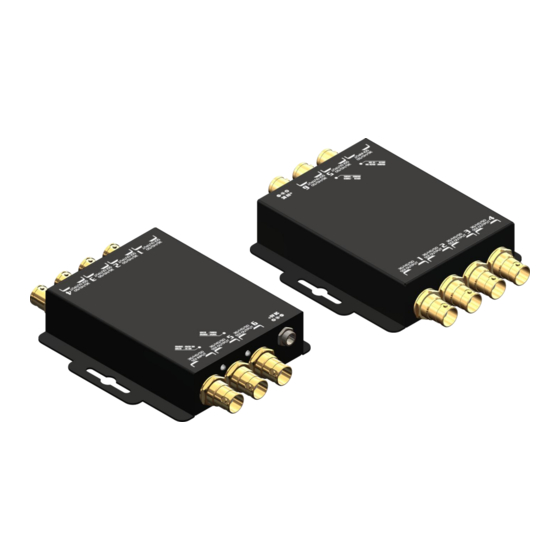

The SP-3016
1x6 3G/HD/SD-SDI Distribution Amplifier with Reclocking
conformance to safety regulations and requirements, and has been certified for international use.
However, like all electronic equipments, the SP-3016 should be used with care. Please read and
follow the safety instructions to protect yourself from possible injury and to minimize the risk of
damage to the unit.
● Follow all instructions and warnings marked on this unit.
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
● Use only the power adapter and power cords and connection cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION ..................................................................................................................... 1
FEATURES .............................................................................................................................. 1
PACKAGE CONTENTS .......................................................................................................... 1
SPECIFICATIONS ................................................................................................................... 2
PANEL DESCRIPTIONS ......................................................................................................... 3
HARDWARE INSTALLATION ................................................................................................. 4
WARRANTY ............................................................................................................................ 5
SIGNAL MEASUREMENT ...................................................................................................... 6
has been tested for
Advertisement
Related Manuals for Missing Link SP-3016
Summary of Contents for Missing Link SP-3016
- Page 1 However, like all electronic equipments, the SP-3016 should be used with care. Please read and 1x6 3G/HD/SD-SDI Distribution follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
- Page 2 INTRODUCTION SPECIFICATIONS The SP-3016 receives one SDI input, perfectly duplicates it, and re-transmits six SDI outputs for real Model Name SP-3016 time multi-viewing. It is a reliable video device splitting a SDI, HD-SDI, or 3G-SDI video source to six SDI Technical compliant displays at the same time.
- Page 3 PANEL DESCRIPTIONS HARDWARE INSTALLATION 1. Connect a camera or other devices equipped with 3G/HD/SD-SDI outputs to SP-3016 3G/HD/SD-SDI Front Panel input. 2. Connect devices equipped with 3G/HD/SD-SDI inputs (e.g. monitors or video processors) to SP-3016 3G/HD/SD-SDI outputs. 3. Plug power adapter cable into 5V DC power jack.
- Page 4 The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the SP-3016 features and specifications is subject to change without further notice.
