Guzik WITE32 Release Notes

Version 3.11
Hide thumbs
Table of Contents

Advertisement

Quick Links

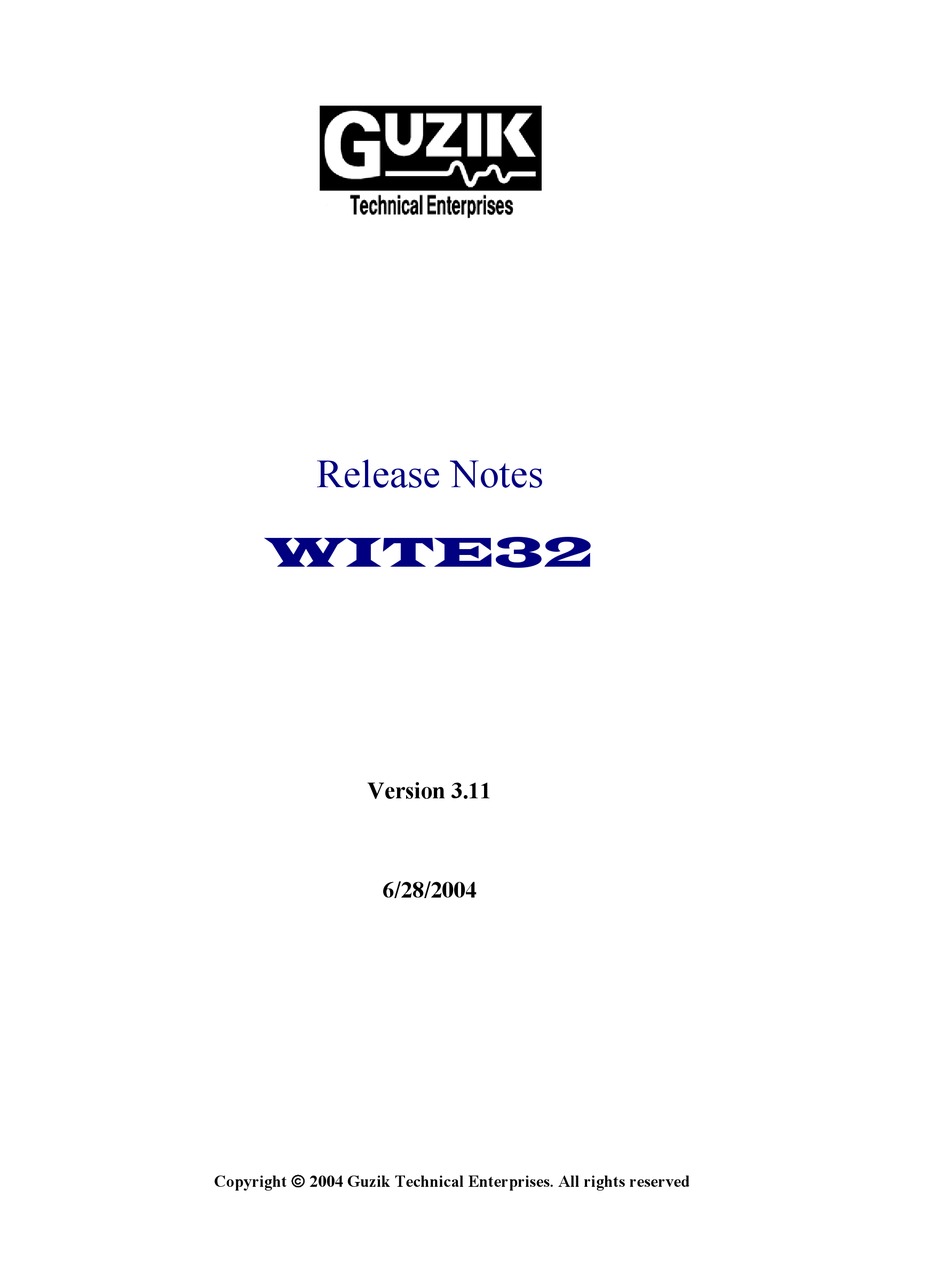

Release Notes
WITE32
Version 3.11
6/28/2004
Copyright
2004 Guzik Technical Enterprises. All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WITE32 and is the answer not in the manual?

Questions and answers

Summary of Contents for Guzik WITE32

  • Page 1 Release Notes WITE32 Version 3.11 6/28/2004  Copyright 2004 Guzik Technical Enterprises. All rights reserved...

  • Page 2: Table Of Contents

    Chapter 1 New Hardware Supported in WITE32 ... 3 Support of Servo Revision 3 for RWA-2000 Series ...3 Comb Loader for Guzik V2002 Spinstands ...3 Ping Pong Cartridge Design for Guzik 1701A+ Spinstands ...3 Micro Actuator Support for Guzik V2002 Spinstands ...4 1.4.1...

  • Page 3: Chapter 1 New Hardware Supported In Wite32

    Servo Revision 3. From the operation and WITE32 user interface point of view, Servo Revision 3 is the same as Servo Revision 2. Please refer to the WITE32 Servo User's Guide document P/N 02-106596-01 for more details on how to use Guzik Servo.

  • Page 4: Micro Actuator Support For Guzik V2002 Spinstands

    Please refer to the Micro Actuator Tests User's Guide P/N 02-107264-02 for the description of the tests. These tests are included into the Spinstand 2002 Tests module. The module is provided on the WITE32 Installation CD, however the Micro Actuator tests require a license. Please contact tests license.

  • Page 5: Head Amplifiers

    Head Amplifiers The following head amplifiers are initially supported in WITE32 version 3.11: • 81G214M • 81G5114D • 81G5114P • GTEMR4PP • MINI • MR5M_M • MUX_SR1795BAA • PA7500 • PA7501 • PA7515 • SR1671 • SR1850B • SR1852 •...

  • Page 6: Chapter 2 Wite32 Modifications

    The System Erase configuration is for erase operation performed on a single track, while System Band Erase is for erase operation performed on a band of tracks. A new Control | Band Erase menu item is added to WITE32, which includes both System Erase and System Band Erase configurations.
  • Page 7 There are two frames in the dialog box – the Erase Parameters frame and the Band Erase Parameters frame. The Erase Parameters frame allows you to define the erase configuration. The Iterations text box The Mode option buttons The Frequency text box The Write Current text boxes The Use System check boxes The Band Erase Parameters frame allows you to define the area around the current track for the band erase operation.

  • Page 8: Using System Erase In Wite32 Tests

    Parametric Tests module: SNR and Spectral SNR tests. Starting from WITE32 version 3.11 these tests are modified to either use System Erase configuration, or use custom erase settings. Their original erase operation configurations are converted to the new format of the custom erase settings.
  • Page 9 The following is the SNR test configuration dialog box in WITE32 version 3.10 (provided as an example): Figure 3 SNR Test Configuration in WITE32 version 3.10 The following is the new SNR test configuration dialog box in WITE32 version 3.11: Figure 4 SNR Test Configuration in WITE32 version 3.11...

  • Page 10: Tests With Band Erase Configuration

    Erase and Band Erase operations of the production test. Starting from WITE32 version 3.11 these tests are modified to either use System Band Erase, or use custom band erase settings. Their original band erase configurations are converted to the new format.
  • Page 11 The following is the Low Erase Current test configuration dialog box in WITE32 version 3.10: Original erase operation parameters Figure 6 Low Erase Current Test Configuration in WITE32 version 3.10 The following is the new configuration dialog box in WITE32 version 3.11: Figure 7 Low Erase Current Test Configuration in WITE32 version 3.11...

  • Page 12: Tests With Erase Preconditioning

    Tests With Erase Preconditioning A new System Erase option is added to preconditioning selection of WITE32 tests. When this option is selected, the System Erase configuration will be used for preconditioning. The following is the list of the tests, which include this new preconditioning option: •...

  • Page 13: New Adjacent Track Interference Module (Wati)

    Spinstands and Servo 2.3.1 New Servo Control Dialog Box The new Servo Control dialog box is added in WITE32 rev 3.11. It can be opened by selecting the Control | Servo… menu item in the WITE32 Engineering Mode Dashboard. Figure 9...
  • Page 14 2.3.2.1 Dialog Box Layout and Tab Pages The parameters in the Product Parameters dialog box are grouped into three tab pages: • The Disk tab page. This page contains controls and parameters related to disk geometry such as disk type, minimum radius, maximum radius, direction of rotation and speed (RPM), device options, disk working area, skew angle parameters, start and stop options.
  • Page 15 2.3.2.2 Changes of the Disk Type Control The following two changes are introduced in the Disk Type control starting from WITE32 version 3.11: • The Disk type 2.756 Inch (70 mm) is now supported. This disk type is added to the Product Parameters dialog box.
  • Page 16 Cartridge Angle Parameter is Added to the V2002 Product Parameters Dialog Box In previous versions of WITE32, you had to combine the cartridge angle with the head loader angle and store the resulting value in the spinstand EEPROM. The cartridge angle (0 or –10 degrees) was added to the head loader angle in respect to the XY stage of the spinstand (the V2002 head loader has a 45 degree angle) and specified in the Tooling Angle text box on the Tooling Parameters tab of the Spinstand Parameters dialog box of WDCP2002.
  • Page 17 2.3.2.4 Micro Actuator Parameters In order to start working with Micro Actuator it has to be enabled and configured. The new controls are added to the Product Parameters dialog box. Figure 13 Micro Actuator Parameters in the V2002 Product Parameters Dialog Box The controls for the Micro Actuator configuration are grouped into two frames –...

  • Page 18: Xy Alignment Test

    All Head Parameters controls are made read-only, since they are shown on the XY Alignment configuration form for the reference purpose only. Starting from WITE32 version 3.11 you must use the Product Parameters dialog box of the WDCP2002 program to change these values.

  • Page 19: The Write With Retries Operation

    The Write With Retries Operation A new type of operation is implemented in WITE32 revision 3.11: the Write With Retries operation. This is a special case of the write operation when the RWA shuts down the write gate in the sectors, in which the spinstand detects that the Position Error Signal (PES) exceeds the specified tolerance.

  • Page 20: Taa Calibration Through Programmable Differentiator

    Error / Warning Report Modification 1. The information about WITE32 software version is added to the standard WITE32 error message box, when shown in the More Info mode. The WITE32 software version is printed on the first line of the error report. Figure 16 Error / Warning Dialog Box 2.

  • Page 21: Head Selection In The Wite32 Engineering Dashboard

    Head 0 is selected. 3. If the number of the current head in Head frame of the WITE32 Engineering Dashboard is more than the new value of the maximum number of heads, a head from the list of selected heads with a maximum number is set as the current head.

  • Page 22: Miscellaneous

    Miscellaneous 1. The maximum number of result records in the WITE32 result processor is doubled so that more test results (up to 200,000) can be accommodated at run-time. 2. The new signal WOPEN (Write Operation Enable) is added to the list of available sources for RWA output scope points.
  • Page 23 WITE32 version 3.10 and earlier, generic internal names are used in the dialog box. For example, “WrtFlux” is used for the flux reversal value in the WriteFlux operation test of WITE32 version 3.10, which is renamed to “Mflux/s” in WITE32 version 3.11: Figure 19 Parameter Caption In WITE32 version 3.10...

  • Page 24: Chapter 3 Fixed Bugs

    7. After performing the Y-limit Adjustment there is no software validation of Y-stage positioning and the Y-limit screw can be hit. In the new version of WITE32, the software always checks if the destination position is reachable before the Y-stage starts moving such that the Y-stage does not hit the screw and the warning message is shown when the specified destination position is out of range.

  • Page 25: Other Spinstands And Servo

    3. The PES Acquisition from Data method of the PES Analysis test is available only for spinstands equipped with Guzik Servo Revision 2 (i.e. Guzik S1701B and V2002 spinstands). In the new version of WITE32 this test is available for all spinstands.

  • Page 26: Tests And Measurements

    • 81G5108 – The fault condition is not cleared on the start device. Therefore the head stack does not work after the fault condition occurs until you restart WITE32. • PA7540 – The Overshoot and Vendor ID properties display wrong values.

  • Page 27: Miscellaneous

    2585 and RWA-2550 families of testers. The allocated sectored result memory size is increased. 9. If the type or size of a field in a product database is changed, the product update procedure of WITE32 does not update the database correctly.

  • Page 28: Chapter 4 Support Of Microsoft Windows Xp Operating System

    SUPPORT OF MICROSOFT WINDOWS XP OPERATING SYSTEM Microsoft Windows XP Service Pack 1a (SP1a) is supported in the WITE32 software. You must have the patch 822603 for Windows XP installed before you run WITE32. The table below lists the operating systems approved to work with WITE32 version 3.11:...

  • Page 29: Chapter 5 Known Issues

    CHAPTER 5 KNOWN ISSUES For Guzik V2002 spinstand, after upgrading from WITE32 version 3.10 to WITE32 version 3.11 it is necessary to rewrite service track for the Head Alignment test, otherwise execution of the test will fail with error message "Service track was not written".
