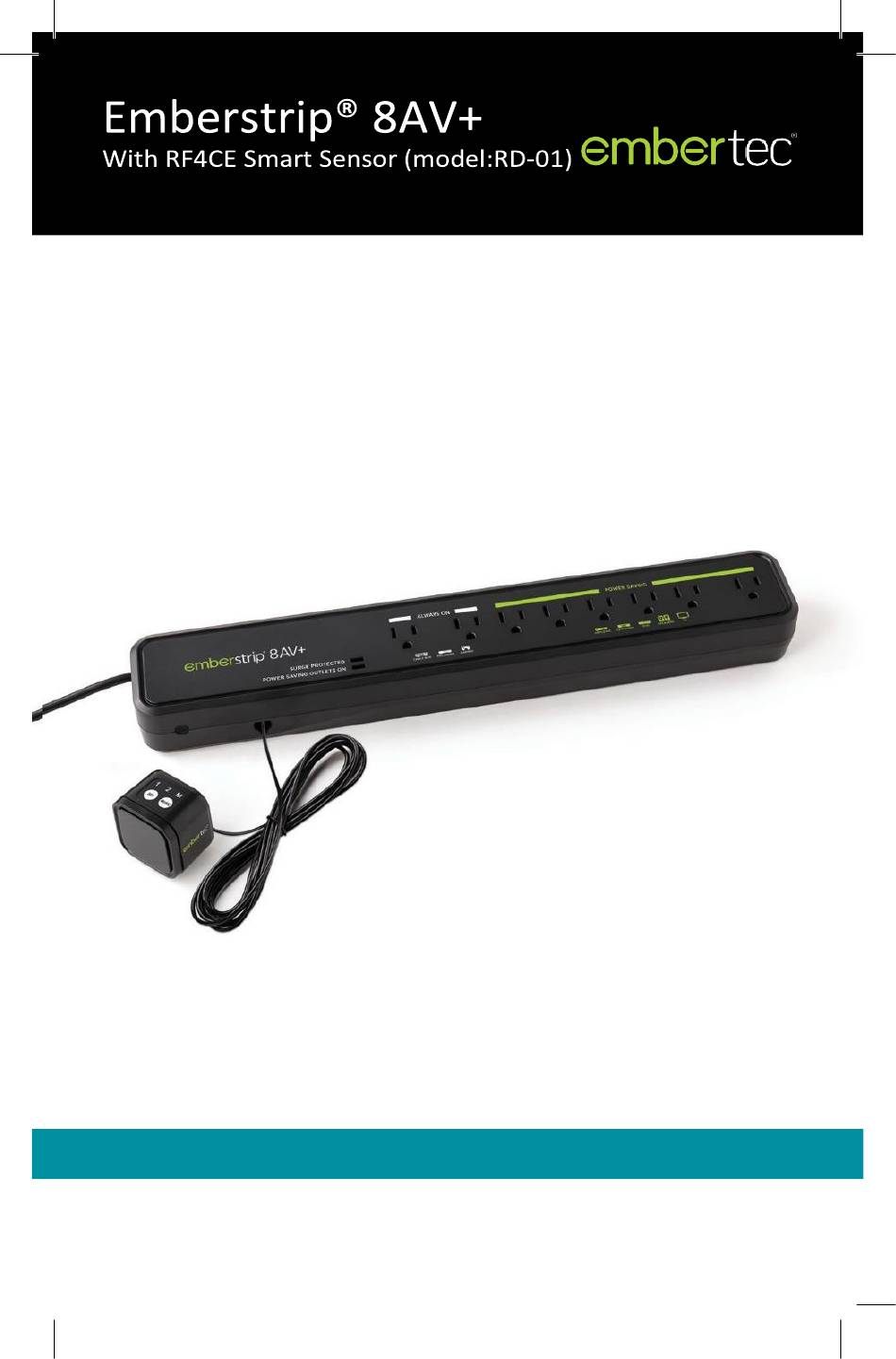

- Page 1 ESUSAV8-ET-10D (DISH) User manual PATENTS GRANTED AND PATENTS PENDING...
-
Page 2: Quick Connection Guide
AV equipment. Plug the Embertec Emberstrip® 8AV+ into the wall outlet. Power is now applied to the Power Saving outlets. The 1, 2 and M buttons on the RF4CE Smart Sensor will flash for up to 5 seconds. -
Page 3: Quick Operation Guide
60 seconds to warn you that power is about to be removed from the AV Power Saving outlets. Active Powerdown® If your Embertec Emberstrip® 8AV+ has not detected use of a remote • control for 1, 2 or 8 hours (depending on your settings), Active Powerdown®... -
Page 5: Table Of Contents

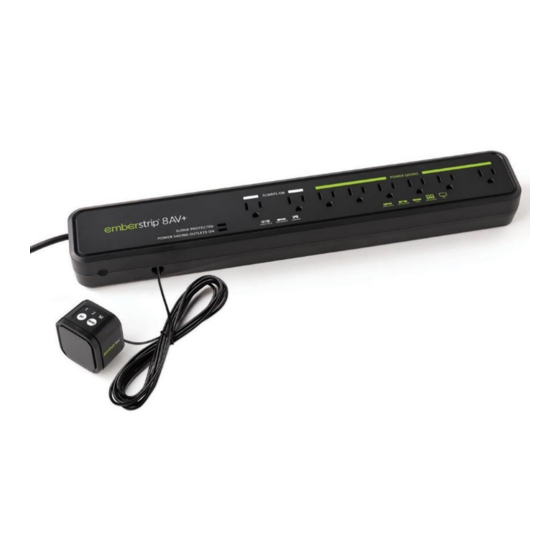

Contents Quick connection guide Quick operation guide Using your Audio Visual equipment with the Embertec Emberstrip® 8AV+ What you need to know RF4CE Smart Sensor Setup MusicMode™ settings BedroomMode™ settings Fast facts Specifications and compliance Troubleshooting guide Warranty... - Page 6 Your Embertec Emberstrip® 8AV+ Embertec Emberstrip® 8AV+ RF4CE Smart Sensor (Model:RD-01) On/Off Power Saving outlets indicator light Power Saving outlets Always On outlets Overload protection Reset Button Surge protection light...
-
Page 7: Using Your Audio Visual Equipment With The Embertec Emberstrip® 8Av
Using your Audio Visual equipment with the Embertec Emberstrip® 8AV+ Always On outlets The Always On outlets are recommended for use with Audio Visual (AV) equipment that requires constant power for timers, program guide and recording features (e.g. DVR, PVR, VCR, cable box, digital TV receivers, game consoles, hard drives or bedside alarms). -
Page 8: What You Need To Know
It is recommended to regularly inspect the Embertec Emberstrip® 8AV+ • for damage. The Embertec Emberstrip® 8AV+ must not be used if it shows any signs of damage. This Embertec Emberstrip® 8AV+ is for indoor use only. Do not use •... - Page 9 When will Active Powerdown® switch the Audio Visual (AV) equipment off? If your Embertec Emberstrip® 8AV+ detects that your Audio Visual (AV) • equipment is on but has not been used for a period of 1, 2 or 8 hours...
-
Page 10: Rf4Ce Smart Sensor Setup
RF4CE Smart Sensor setup The following explains how to pair/un-pair an RF4CE Smart Sensor (Model:RD01) with your DISH remote: Turn your TV off. Pair your DISH remote (in RF mode) with your set top box. Your DISH remote has built in RF4CE capability. To enable your infra-red (IR) capability, navigate to the IR section of your DISH set top box. - Page 11 Changing settings for Active Powerdown® Your Embertec Emberstrip® 8AV+ is equipped with a number of settings to suit your lifestyle. You can set your timer to either 1 or 2 hours, depending on usage habits. This means the RF4CE Smart Sensor will flash after the set period, warning of imminent power down.
-
Page 12: Musicmode™ Settings
MusicMode™ settings Your Embertec Emberstrip® 8AV+ is equipped with a unique MusicMode™ feature. This feature enables you to override the Active Powerdown® for a period of 8 hours. This feature is great for playing music, parties, video nights or any time you want to keep your appliances on for an extended period of time. -
Page 13: Bedroommode™ Settings
BedroomMode™ settings Your RF4CE Smart Sensor is equipped with a unique feature which enables you to reduce the brightness of the RF4CE Smart Sensor ‘flash’ and to reduce the length of flashing when your equipment is no longer being used. Your device is shipped with the brightness level set to maximum, however you may wish to enable BedroomMode™... -
Page 14: Fast Facts
Overload protection The Embertec Emberstrip® 8AV+ is fitted with a safety device that removes power in the event of overloading. Should this occur, turn off and unplug all units, and press the reset button. Then plug into the wall outlet again. - Page 15 Electrical specifications Physical 16.54 in L x 2.72 in W x 1.57 in D Dimensions: (420 mm L x 69 mm W x 40 mm D) 1.78 lb (810 g) Weight: Color: Black body 9.8 ft (3 m) RF4CE Smart Sensor Cable Length: Power Cord Length: 4 ft (1.22 m)
- Page 16 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved WARNING: by Embertec Pty Ltd could void the user’s authority to operate this equipment.
- Page 17 FCC warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body IC warning This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
-
Page 18: Troubleshooting Guide
Remove the Embertec Emberstrip® 8AV+ from the wall plug, then unplug the RF4CE Smart is not operating. Sensor cable and then plug it back into the unit and plug the Embertec Emberstrip® 8AV+ back into the power point. The RF4CE Smart Sensor •... -
Page 19: Warranty
Except as limited here, this product warranty covers any defect in material or workmanship with the Embertec Emberstrip®. If the initial purchase is by a utility or other entity that will not itself be using the device, this warranty is transferable to any customer of such entity who subsequently owns the device. - Page 20 For how long? This warranty runs for the lifetime of the Embertec Emberstrip®. The lifetime of the Embertec Emberstrip® is 15 years from the date of purchase. What will we do if connected equipment is damaged during the limited connected...
- Page 21 Except as required by law, Embertec is not responsible for special, incidental, or consequential damages, or loss of data; or any loss or damage arising from intentional misuse of the product. Such damages and loss include, but are not limited to: lost business;...
