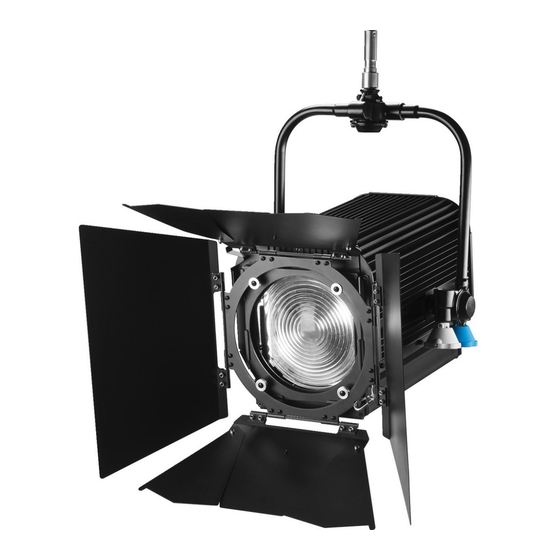

- Page 1 THEATER-100 Professional Theatre Spotlight User Manual Professional Entertainment Technology Please read these instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions 2. Technical Specifications 3. How to Install the Barn Door 4. How to Set the Unit 5. How to Control the Unit 6. DMX 512 Configuration 7. DMX 512 Connections 8. Troubleshooting 9. Fixture Cleaning... -
Page 3: Safety Instructions
1. Safety Instructions Please read the instructions carefully which includes important information about the installation, operation and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. ... -
Page 4: Technical Specifications
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happened, cut off the mains power immediately. Do not operate in dirty and dusty environment, also cleaning fixtures regularly. Do not allow children to operate the fixture. ... -
Page 5: How To Install The Barn Door
◆Beam angle: 12 ° ~ 40 ° ◆Color Temperature: 5300K-5800K(WW)/3200+200K(VW) ◆Rotating filter and hanger ◆Thermo-optical cooling technology, no noise Power supply: AC90V ~ 250V 50Hz/60 Hz Power consumption: 141W Body temperature: <58 ° C Working life: 50,000 hours CRI: Ra=95 Luminous efficiency: 24.3Lm/W (WW)/34.64Lm/W (CW) Weight: 18.2kgs Dimension：... -
Page 6: How To Set The Unit
① Open the spring by hands. ② Insert the barn door into the outside slot from top side. ③ Open the barn door, and then fasten the safety cable. ④ Insert the barn door into the inside slot from top side. 4. - Page 7 8. Display: To show the various menus and the selected functions 9. Safety Ring: Keep the installation safe 10. Ethernet: To transfer the unit’s information to the main controller 4.2 Main Function To select any functions, press MENU button until the required one is shown on the display. Select the function by ENTER button and the display will blink.
- Page 8 Slave Mode Select Slave Mode, press the ENTER button to confirm, present mode will blink on the display. Use the DOWN and UP button to select the Master mode or Slave mode. Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again.
-
Page 9: How To Control The Unit
Fixture Temp. Fixture Temp. Press the MENU button up to when the is blinking on the display. Pressing ENTER button and the display will show the temperature of the unit. To go back to the functions press the MENU button again. Hold and press the MENU button about one second or wait for one minute to exit the menu mode. -
Page 10: Dmx512 Configuration
Use universal DMX controller to control the units, you have to set DMX address from 1 to 512 channels so that the units can receive DMX signal. Press the MENU button up to when the “THEATER-100" showing on the display. Pressing ENTER button and the display will blink. Use DOWN and UP button to change the DMX512 address. -
Page 11: Dmx512 Connections
7. DMX512 Connections The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the input of the next fixture. The cable cannot be branched or split to a “Y” cable. -
Page 12: Troubleshooting
Always dry the parts carefully. Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days. MONACOR INTERNATIONAL GmbH & Co. KG • Zum Falsch 36 • 28307 Bremen • Germany www.monacor.com 01.03.12.2015...
