MUR-MON-SING
MURIDEO 4K HDMI FIELD TEST MONITOR
QUICK START GUIDE

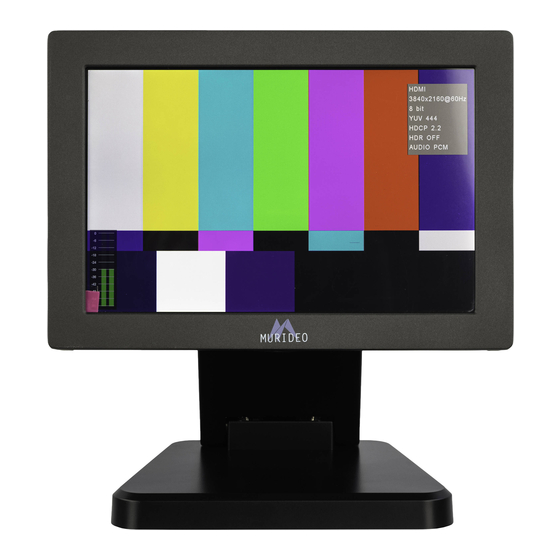

Murideo's MUR-MON-SING is a seven-
inch confidence monitor capable of
analyzing signals up to 18Gbps including
4K HDR and HDCP 2.3 signals. Featuring
robust EDID management, an additional
HDMI loop out port, built-in speaker,
Audio Level meter for 2 Channel audio
analysis, and adjustable aspect ratio.
Easily integrating into any part of the
installation to monitor every type of signal.
•
18Gbps Signal Analysis
•
Audio Level Meter
•
HDMI Loop Out
•
EDID Management
•
Built-In Speaker
INSTALLATION
1.
Connect Power to the Monitor
2. Connect HDMI Source into HDMI Input
3. Connect HDMI Out to any HDMI Sink Device to send
untouched video downstream
POWER
Power Supply: The MUR-MON-SING can be powered using the
including 12V 1.5A power supply.
BATTERY PACK
The MUR-MON-SING can be used anywhere
using the optional battery adapter plate
designed for 7.2V Sony NP-F Style batteries.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Murideo MUR-MON-SING
Summary of Contents for Murideo MUR-MON-SING
- Page 1 2. Connect HDMI Source into HDMI Input 3. Connect HDMI Out to any HDMI Sink Device to send untouched video downstream POWER Power Supply: The MUR-MON-SING can be powered using the including 12V 1.5A power supply. BATTERY PACK The MUR-MON-SING can be used anywhere using the optional battery adapter plate designed for 7.2V Sony NP-F Style batteries.
- Page 2 MOUNTING When mobility is not needed, the monitor may be mounted in a variety of ways using either the included stand or one of the three screw holes for traditional tripod mounts. CONTROLLING THE DEVICE Left Panel: Power On/Off Switch Top Panel: 5 Buttons Menu Wheel...
- Page 3 TROUBLESHOOTING • Verify Power - When power is applied the device should boot up with the Murideo Splash Screen • Verify Connections - Make sure all connected cables are properly connected. HAVE A QUESTION OR NEED ASSISTANCE? DON’T HESITATE TO CONTACT US!
