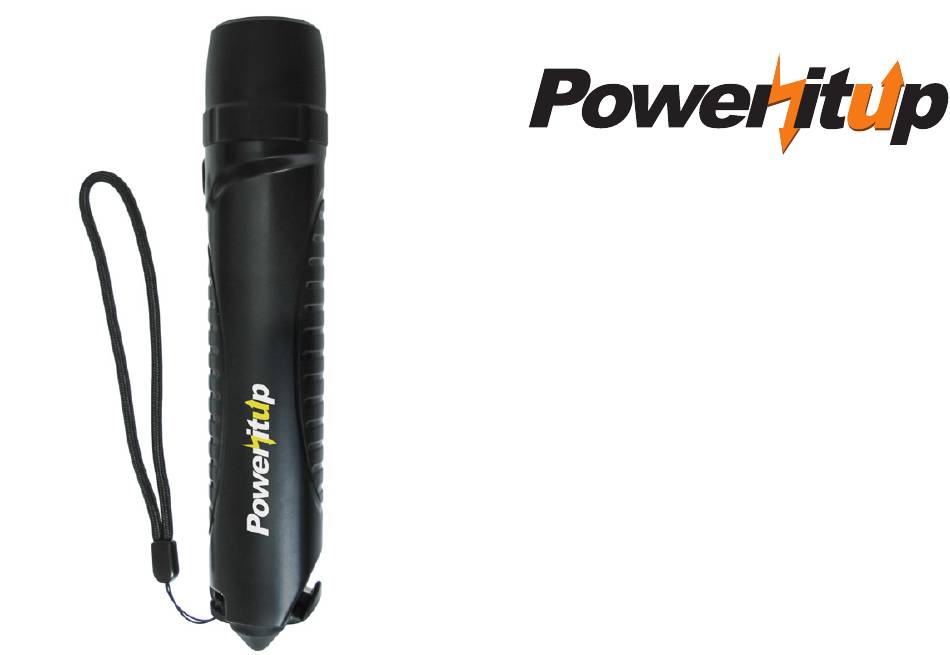

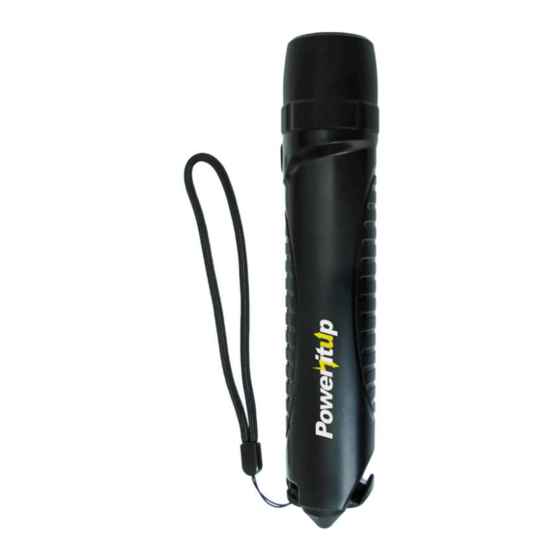

Emergency Powerbank
Flashlight
User Manual
Model: PBSF-10K

Advertisement

loading
Need help?

Need help?

Do you have a question about the PBSF-10K and is the answer not in the manual?

Questions and answers

Related Manuals for PowerItUp PBSF-10K

Summary of Contents for PowerItUp PBSF-10K

  • Page 1 Emergency Powerbank Flashlight User Manual Model: PBSF-10K...
  • Page 2 In the Box: On/O switch (1) Emergency Power-bank Flashlight (1) micro-USB connection cord Micro-USB input (1) User’s Manual LED Indicators (1) Wrist Strap USB Output Micro-USB Connection Cable Window Breaker Seatbelt Cutter...

  • Page 3: Unit Setup

    FEATURES Your multi-function product has a number of features and uses: • Flashlight • Portable device charger • Flashing Emergency Light • Emergency seatbelt cutter • Emergency window breaker UNIT SETUP To get started, unscrew the lamp cap by holding it pointing up and turning it in a counter-clockwise direction.
  • Page 4 Press the On/Off switch momentarily to check the current battery life. There are four blue LEDs showing the percentage of battery life from 25% (1 LED) up to 100% (all four LEDs). CHARGING To charge the flashlight/powerbank, use the included micro-USB cable to connect to a standard USB charging source, such as PC or a cell phone char- ger.
  • Page 5 FLASHLIGHT Hold the On/Off switch down for 2 seconds to turn the light on or off. The flashlight defaults to a low brightness setting. To increase brightness, press the On/Off switch momentarily and it will increase to medium. Repeat to increase to full brightness and once again to return to low brightness.
  • Page 6 vices such as Bluetooth® headsets may not charge due to the small current which they draw. SEATBELT CUTTER AND WINDOW BREAKER Note: Keep this emergency multi-tool nearby in the front of your car (not your trunk) so that it can be used in the event of an accident. It’s best if the unit is kept within reach such as a door map pocket as opposed to a glove compartment, which may be out-of-reach in an emergency.
  • Page 7 2. Try to release your seatbelt the way you normally do. If you cannot, use the seatbelt cutter built into the handle to cut your way through the seatbelt. [See diagram] 3. Try to open the door. If you cannot, try to lower the window. If you cannot, remove the cap from the bottom of the flashlight.

  • Page 8: Product Specifications

    PRODUCT SPECIFICATIONS Battery : 3.7V 10,400 mAh Lithium Ion USB-A Output : 5V/1A Micro-USB Input : 5V/1A Self-charging time : About 22 hours (using 500 mA computer) : About 11 hours (using 1A charger) LED Power : 3 watts, 220 lumens Multifunction On/Off button : Press and hold for On/Off function Charge Level Display : 4 LEDs to show percentage of charge...
  • Page 9 WARNINGS: • Do not puncture, throw, drop bend or modify. • Do not throw into a fire or expose to excessive heat or flame. • Do not short-circuit the battery terminals. • Do not disassemble the battery pack. • Stop using if unit generates strange smell or gets very hot. •...
