LPRX and LFPRX Series Filters
RFI / EMI
10A - 400A Panel Filters
Installation and Maintenance Manual
December 2019
1706370 Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPRX Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ETS-Lindgren LPRX Series

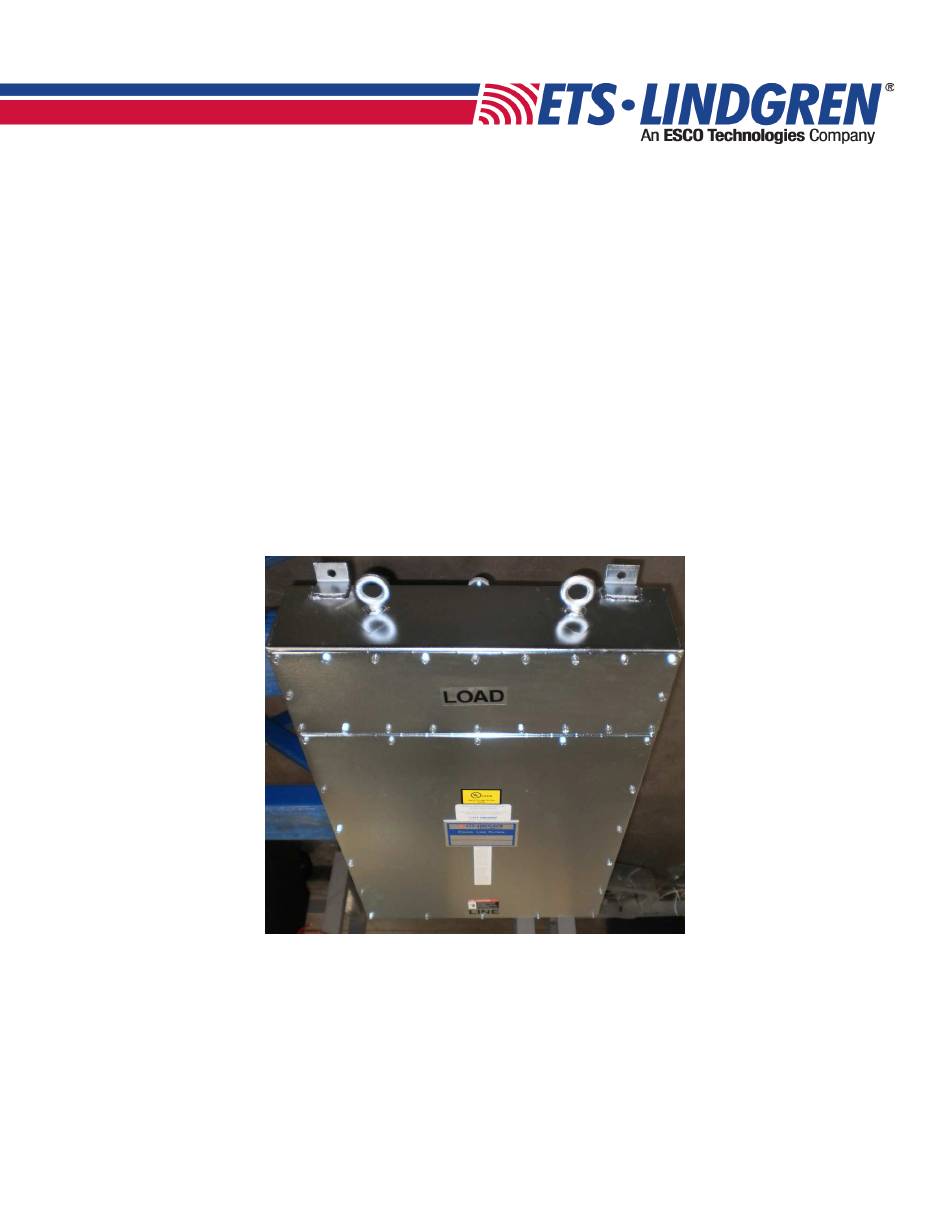

  • Page 1 LPRX and LFPRX Series Filters RFI / EMI 10A - 400A Panel Filters Installation and Maintenance Manual December 2019 1706370 Rev B...
  • Page 3 All trademarks are the property of their respective owners. © Copyright 2019 by ETS-Lindgren Inc. All Rights Reserved. No part of this document may be copied by any means without written permission from ETS-Lindgren Inc.
  • Page 5: Table Of Contents

    SAFETY INFORMATION GENERAL SAFETY CONSIDERATIONS INTRODUCTION ETS-Lindgren Product Information Bulletin ......9 PRECAUTIONS FILTER COMPONENTS Filter Elements .
  • Page 6 POWER ON In-Rush Current ........14 Reactive (Leakage) Current .
  • Page 7 You should provide uninterruptible safety earth ground from the main power source to the product input wiring terminals, power cord, or supplied power cord set. See the ETS-Lindgren Product Information Bulletin for safety, regulatory, and other product marking information.
  • Page 8: General Safety Considerations

    Before servicing: contact ETS-Lindgren – servicing (or modifying) the unit by yourself may void your warranty. If you attempt to service the unit by yourself, disconnect all electrical power before starting.
  • Page 9: Introduction

    INTRODUCTION ETS-Lindgren Filter Panels are electromagnetically isolated Electromagnetic Interference (EMI) Filter cabinets with EMI isolated filter elements. Filters designated as -TS are equipped with transient protection devices (MOVs). The filter is designed to filter internally and externally generated EMI conducted emissions and arrest high transient currents when equipped with MOVs.
  • Page 10: Filter Components

    MOVs in the panel. There are NO USER SERVICEABLE PARTS inside the filter elements. Should a filter element be determined to be defective, contact ETS-Lindgren to order a replacement or to schedule its return or replacement.
  • Page 11: Automatic Discharge

    Some signal filters contain bleeder resistors that will automatically reduce the voltage on any component to less than 50 V within five (5) seconds after the removal of input power. Contact ETS-Lindgren for details. Always discharge filters as described in the SHORTING STICK section of this manual.
  • Page 12: Short Circuit Current Rating

    Once the power correction coil is installed, the operating power frequency range of the filter then becomes 350 Hz to 450 Hz. For operation at other frequencies or DC, the coils must be disconnected. Please call ETS-Lindgren before proceeding. Current As specified on filter label.
  • Page 13: Environmental Specifications

    ENVIRONMENTAL SPECIFICATIONS Attribute Operating Non-Operating Temperature -45° C to + 65° C -55° C to +85° C Altitude Sea Level to 8,000 ft Sea level to 40,000 ft Humidity Relative humidity between 10% and Relative humidity between 14% at an 90% at air temperatures between air temperature of +71°...
  • Page 14: Grounding

    10% to 15% of the rated current of the filter. The presence of this current does not indicate a problem unless it is above the level expected. Contact ETS-Lindgren for specific leakage current for each particular filter model.
  • Page 15: Inspection And Cleaning Of Wiring Compartments

    User’s own procedures for the removal of spills, dirt, debris and corrosion should suffice. Should EMI gasket become torn or unusable, contact ETS-Lindgren to order replacement part E-903-008. The MOV arrestor (if provided) should be replaced when an MOV test (see Capacitance Measurement and MOV Inspection Procedure section) fails to indicate a working MOV.
  • Page 16: If No Transient Protection Is Provided The Sections Pertaining To Movs Do Not Apply

    ±20%. A DF measurement should be done at the same time and recorded. DF readings above 0.08 should be noted and ETS-Lindgren should be called for advice before re- applying power to the filter.
  • Page 17: Filter Penetration

    ILLUSTRATIONS Filter Penetration Filter penetrations should be installed as shown...
  • Page 18: Filter Electrical Wiring

    Filter Electrical Wiring PFCC connections diagram...
  • Page 19 Proper grounding (earth) and wiring of filter in chamber installation...
  • Page 21: Warranty Statement

    WARRANTY STATEMENT ETS-Lindgren Inc., hereinafter referred to as the Seller, warrants that the RF filters purchased under this contract will be free from defects in workmanship performed by the Seller, and will conform to the applicable specifications and/or drawings. This warranty is limited to either giving credit, repairing or replacing with reasonable promptness after written notice from the buyer of such defect promptly after discovery of same and in no case later than the warranty period after shipment by Seller.

This manual is also suitable for:

Lfprx series
