The Mavic team has put all its passion, experience and skill into the
design and manufacture of your computer. It will be an important aid to
you in the improvement of your performance.
Thank you for putting your trust in Mavic products.
SUMMARY
1. DESCRIPTION
2. INSTALLING THE COMPUTER MOUNT
7. DESCRIPTION OF THE DISPLAY
8. FUNCTION DISPLAY SEQUENCE
9. DIGITAL PAIRING OF THE COMPUTER
WITH THE SENSORS
10. PAIRING THE SECOND BIKE
11. SETTING THE TIME
12. SETTING THE ODOMETERS
13. SETTING THE CIRCUMFERENCE
AND THE UNIT
14. TRIP ZERO RESET
15. USING THE INTERMEDIARY STOPWATCHES
16. CONSULTING THE INTERMEDIARY
STOPWATCHES
17. CONSULTING THE DIFFERENT ODOMETERS
After installation and before you use your computer for the first
time, it is IMPERATIVE to perform the digital pairing operation
described in section 9 of this guide. If you don't, there will be no
communication between the computer and the different sensors
and your system will not work.
1.3
11
11
12
12
12

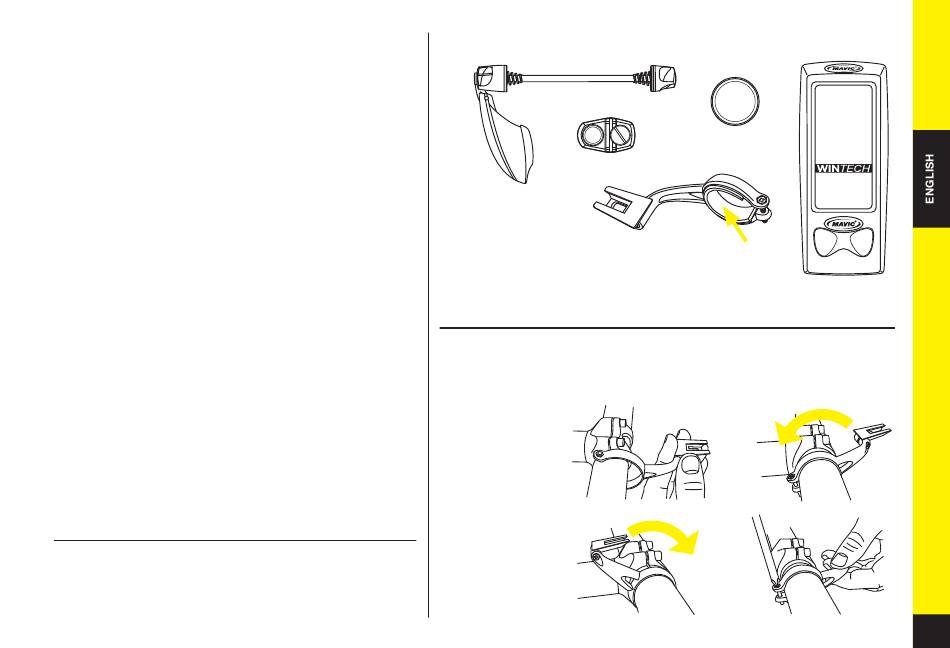

1. DESCRIPTION
12
1.1 Computer
1.2 Battery
13
1.3 Locking lever/sensor
13
1.4 All-purpose magnet
1.5 Computer mount
1.6 25.4 handlebar mount adapter
13
13
2. INSTALLING THE COMPUTER MOUNT
14
2.1. Install the mount on the handlebar, to the right of the handlebar stem.
14
To fix it to an oversize, 31.8 diameter handlebar, just remove the 25.4 adaptor.
2.2 Install the mount
14
on the handlebar.
15
2.3 The mount can be
15
installed in a variety
of positions: with the
computer to the fore
15
or over the handlebar
2.2
16
stem.
16
2.4 Once you have
chosen the right
position, tighten the
screw with a cross-slot
screwdriver.
2.3.2
1.2
1.4
1.5
1.6
2.3.1
2.4
1.1
