CEREBRO PRO
SMART CONTROLLER SERIES
#Smarthomehub

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CEREBRO PRO and is the answer not in the manual?

Questions and answers

Related Manuals for hogar CEREBRO PRO

Summary of Contents for hogar CEREBRO PRO

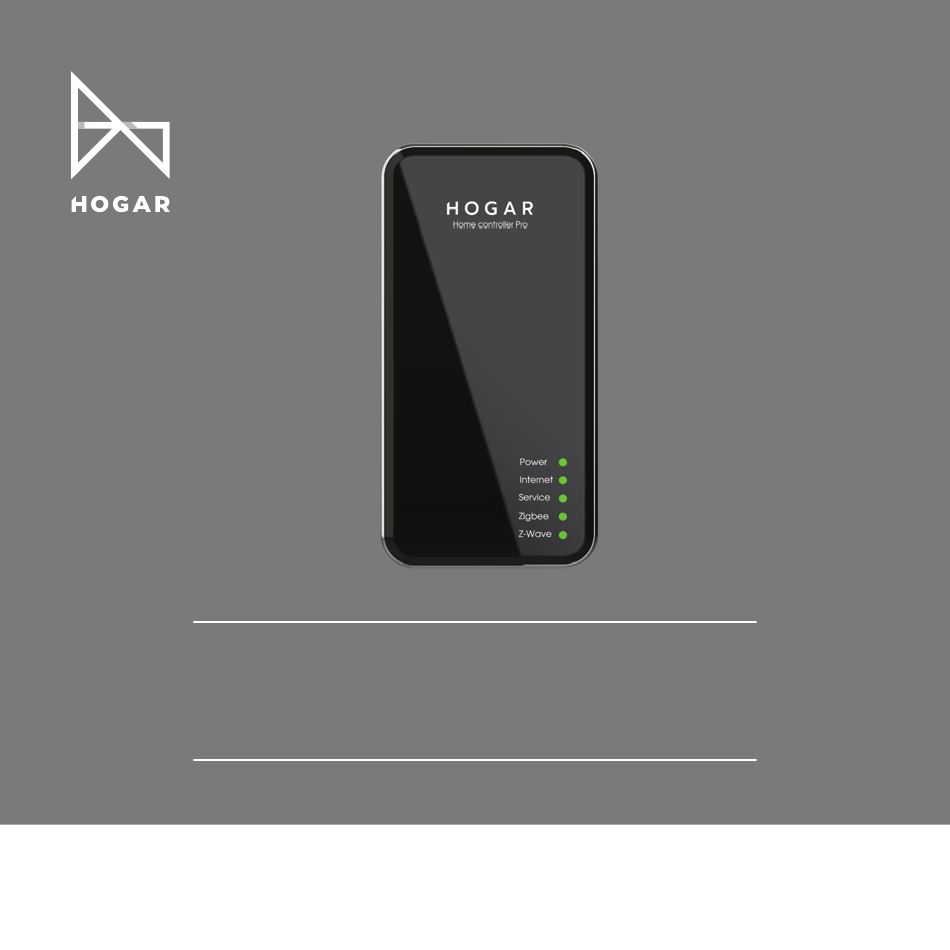

  • Page 1 CEREBRO PRO SMART CONTROLLER SERIES #Smarthomehub...
  • Page 3 WELCOME TO THE HOGAR IOT WORLD Welcome to Hogar Controls © World of Smart IOT Solution for Smart Spaces. Thank you for trusting us with your space & choosing Cerebro Pro. This manual is designed to help you install your Cerebro Pro in an easy and hassle-free manner.

  • Page 4: Table Of Contents

    CEREBRO PRO TABLE OF CONTENTS USAGE NOTICE 1.1. Warnings and Considerations 1.2. Precautions PRODUCT DETAILS 2.1. Description 2.2. Features 2.3. Contents in the Box 2.4. Technical Specifications HOGAR PRO APP INTERFACE 3.1. Interface 3.2 Theme Selection 3.3 Display 3.4 My Account...
  • Page 5 4.1. Hogar Pro App Installation 4.2 Registering Account on Hogar Pro App 4.3 Adding Cerebro Pro Device to Hogar Pro App 4.4 Connecting Cerebro Pro to your Internet SETTING SMART HOME TO CEREBRO PRO 5.1. Setup for your Floors 5.2. Setup for your Rooms 5.3.
  • Page 6 SECURITY INTERFACE & OTHER UPDATES 8.1 Security Status 8.2 OTA App Updates 8.3 Backup Process 8.4 Resetting Information TROUBLESHOOTING ERRORS 9.1 If Hogar Pro App stops responding 9.2 If a feature does not work properly 9.3 If Cerebro Pro goes offline WARRANTY...

  • Page 7: Usage Notice

    Install this device by following the socket type mentioned. Using this product in any manner other than how it this document VOIDS your warranty is referred to in Further, Hogar Controls is NOT liable for any damage incurred due to the misuse of the product.
  • Page 8 Avoid pressing hard on the device body, reset button, and connecting ports. This is an electronic device with complex components. Handle and install with care! If you are not sure about any part of these instructions, please consult a Certified Electrician to perform the installation process.

  • Page 9: Precautions

    1.2. PRECAUTIONS Ensure the below DOs & DON'Ts are followed to enjoy a seamless product experience: - TURN OFF the product before cleaning. - Clean the product with a soft dry cloth. DON'Ts - DON'T drop or disassemble the device. - DON'T touch the device with sharp or hard objects.

  • Page 10: Description

    Hogar Pro app allows you to receive alerts/notifications about the connected devices and run your home remotely with the mobile device. Cerebro Pro receives commands from the app and sends to other devices. It also sends important alerts to your mobile device if some action occurs.
  • Page 11 - Supports a LAN Port that allows Cerebro Pro to connect with a network using a wired connection. - It supports Manual & Automatic OTA Update. - Can connect to 232+ smart home Z-Wave devices. - It has a Cloud Backup and restores the configuration every time you customize.

  • Page 12: Contents In The Box

    2.3 CONTENTS IN THE BOX - Cerebro Pro - User manual...

  • Page 13: Technical Specifications

    2.4. TECHNICAL SPECIFICATIONS Model Number HC-02-VV AC 110/230V 50-60 Hz Power Requirement Quad-core ARM® Cortex®-A9@1.2GHz RAM & ROM 512MB & 4GB eMMC v4.5 Setup Web access Number of Z-Wave 232+ Devices supported per controller Encryption Security Level Multi-Controller Up to 4 Setup (Master-Slave) Dimensions (LxWxH) 48.8 x 96.4 x 47.8mm...
  • Page 14 Wireless Specifications Wi-Fi, Ethernet, Internet Connectivity 3G/4G USB Modem Wireless Range 50m outdoor - 30m indoor Z-Wave Plus, Radio Protocol Zigbee 3.0, Wi-Fi...

  • Page 15: Hogar Pro App Interface

    HOGAR PRO APP USER INTERFACE 3.1 INTERFACE - Tab Bar - The Tab bar provides quick access to the Home screen, Scenes, Room, Music, and Settings. - Home screen - The Home Screen contains the most often used functions of the App. It includes the following: - Security - Tap the Security icon on the top left corner to access the devices added into the Security section.
  • Page 16 - Internet Connection – Allows the user to check whether the device is connected locally or to the cloud. - Notification - Whenever a Rule is activated, a notification is triggered. - Event – You can view the device Event by clicking on this icon. From this section, you can see the Account Login History, HC history, List of Rules created, Devices ON/OFF status.

  • Page 17: Theme Selection

    3.2 THEME SELECTION - The user can customize the look and feel of the App. The theme allows the user to set background to the App, which automatically fits the screen. - For the background image, the user can choose either Dark theme or Light theme or a custom theme based on the user’s choice.

  • Page 18: My Account

    - Account Info - This is a profile page that displays key information like account's name, phone number, etc. It allows you to view and manage the Cerebro Pro account information. - Change Password - You can change your existing password to a new password here.

  • Page 19: Configuration Of Cerebro Pro

    CONFIGURATION OF CEREBRO PRO 4.1 HOGAR PRO APP INSTALLATION Scan the below QR codes on your mobile. This helps you automatically download and install the application...

  • Page 20: Registering Account On Hogar Pro App

    4.2 REGISTERING ACCOUNT ON HOGAR PRO APP Sign Up: - Open the Hogar Pro App. - You can either sign up with your mobile number or email id. - Enter a password of your choice and click “Register”. - You will receive an OTP which is valid for 10 mins. Enter the OTP and sign up.

  • Page 21: Adding Cerebro Pro Device To Hogar Pro App

    - Give the following details: Home name, Domain, Address and Save. - Select the “Home” and click on “Confirm”. - Click on “Your Cerebro Pro has not connected to internet” and click on “Next”. - It will redirect to Wi-Fi Settings page, connect to the device Hotspot.
  • Page 22 - Connect your phone to the internet and go back to the mobile App, click on “OK”. - Wait until Cerebro Pro gets reboot. Choose LAN configuration. Cerebro Pro does not support 3G/4G configuration. - You can choose DHCP/ STACTIC IP configuration.

  • Page 23: Setting Smart Home To Cerebro Pro

    - Connect your phone to internet and go back to mobile App, click on “OK”. - Wait until Cerebro Pro reboots. SETTING SMART HOME TO CEREBRO PRO 5.1 SETUP FOR YOUR FLOORS Adding Floors to your Hogar Pro App: - Go to Settings → General → Config Room & Floor. Tap ‘...

  • Page 24: Setup For Your Rooms

    ” button in the top right corner of the screen. - Add the ‘Room details’ and type in the Room Name. - Assign a photo by allowing Hogar Pro App to click pictures by tapping ‘’Allow’’. - The created Floors appear as a list.

  • Page 25: Setup For Multiple Cerebro Pros

    5.4 SETUP FOR MULTIPLE HCs Cerebro Pro allows multiple controllers on the same network. There is only one primary Home Controller which can act as Master and the rest as Slave controllers. Slave controllers also communicate with devices directly connected to it.

  • Page 26: Adding/Deleting Smart Devices To Your Hogar

    CEREBRO PRO 6.1 SETUP FOR YOUR ZIGBEE & Z-WAVE SMART DEVICES Adding Smart Devices: - Scroll through the Hogar Pro App, choose between Zigbee and Z-Wave, to “Add” devices. - You will receive a pop-up notification display stating “Device Added”...

  • Page 27: Setup Your Security Camera Devices

    Adding IR Devices: - Initially refer to IR360 manual for setting the IR360 into the network. - Go to General → Setup Devices → Select HC → IR → Add Devices → Join Deleting IR Devices: - Select the specific IR device. - Click the drop down on the right, next to the IR Device &...
  • Page 28 Edit Camera Devices: - Go to the specific camera device & Click “Edit”. - Edit the required details & Click “Done” to save the changes Deleting Camera Devices: - Select the specific Camera device. - Click the drop down on the right, next to the IR device & tap ‘’Remove Device’’.
  • Page 29 - Tap the speaker icon from top right to access your speaker list - Select the Audio to play music in the room of home. The below operations can be performed View the list of songs playing currently. Pause or play the media. Skip or Forward.

  • Page 30: Automating & Controlling Your Smart Devices

    Set Timer for Rule: Enable Timer and Scroll through the timer, choose a time between 0 and 23 hours and 0 to 59 minutes and click on “Confirm” to save. Add input/output devices: Add the input and output devices to Cerebro Pro...

  • Page 31: Scenes

    Normally, various smart sensors can be automated through scenes to trigger your smart switches. No manual intervention or internet connectivity is required once certain scenes are set by you on your Hogar Pro App.
  • Page 32 Add a Scene: Go to scenes. Tap the “ ” button in the top right corner of the screen. Add scenes to the room by selecting the “Room” in the scene. Tap “Done” on the top right corner when you are done with creating the scene.

  • Page 33: Groups

    Edit Existing Scene: Tap on a specific scene from the list, and change the data accordingly and tap “Done”. Delete a Scene: Go to Settings → General → Scene → Select the Scene → Scroll to bottom → Click on Delete Scene 7.3 GROUPS Using this functionality, you can Group devices of the same type i.e Switches grouping, RGBW grouping, Light dimmer, Fan speed...

  • Page 34: Schedule

    Delete a Group: Go to Settings → General → Group → Select the Group → Scroll to bottom → Click on Delete Group 7.4 SCHEDULE To view the list of schedules, go to Settings → General → Schedules Add a Schedule: Go to Settings →...

  • Page 35: Security Interface & Other Updates

    SECURITY INTERFACE & OTHER UPDATES 8.1 SECURITY STATUS Safe: The house is in a safe mode. Security rule is off Warning: Warnings, security rules are activated 8.2 OTA APP UPDATES - Cerebo Pro provides an option to choose the updates automatically or manually.

  • Page 36: Resetting Information

    - The data in the account such as Total Cerebo Pro, Total Devices, Total Floors, Total Rooms, etc. are stored as backup. 8.4 RESETTING INFORMATION Network reset (Using reset button) - Connect your controller to a power supply. - Press and hold the reset button until 3 Seconds, LED Flow as below, Power LED →...
  • Page 37 Change network (Using Mobile APP) - Connect your controller to a power supply. - Reconfigure Cerebro Pro to the new network. - Go to APP → Settings → Info HC → setup → Change network Continue the configuration steps as follow:...
  • Page 38 - It will redirect to Wi-Fi Settings page, connect to the Cerebro Pro Hotspot. - Go back to the app and click “Yes, I connected”. - Choose “Wi-Fi configuration”. Cerebro Pro does not support 3G/4G configuration. - Choose the Wi-Fi, type in the password.
  • Page 39 flow as below: - Power LED → Internet → Service → Zigbee then Release. - Cerebro Pro will go to recovery mode. The Internet LED starts blinking to indicate that the Network Reset option has been selected. Click the "Reset Button" ONCE to change rge option.

  • Page 40: Troubleshooting Errors

    TROUBLESHOOTING ERRORS 9.1 IF HOGAR PRO APP STOPS RESPONDING You may try one of the following options. They can even be tried one after the other till the issue gets resolved: - Close the App and open it again. - Clear App Cache Data or Clear App Data.

  • Page 41: If Cerebro Pro Goes Offline

    9.3 IF CEREBRO PRO GOES OFFLINE You may try one of the following options. They can even be tried one after the other till the issue gets resolved: Restart the device Check Ethernet/Wi-Fi connection. Verify the assigned IP address. Note: Please contact a certified Installer if you need more...

  • Page 42: Warranty

    Warranty Hogar offers an Exclusive 18-Month Warranty on any product that covers defects in materials and quality under normal use of the Product. The Terms and Conditions of this 1.5 YEARS LIMITED WARRANTY can be viewed on www.hogarcontrols.com or scan...
  • Page 43 CONGRATULATIONS You've successfully installed your Cerebro Pro. Now you can experience seamless control of your Cerebro Pro with your Hogar Pro App. Add more to your home from our range of smart home automation solutions and live the smart life.
  • Page 44 Hogar Controls Inc, 46040 Center Oak Plaza, Suite 125, Sterling, Virginia 20166 | Phone : +1 703 844 1160 INDIA Hogar Controls India Pvt. Ltd., Plot No. 3, support@hogarcontrols.com I.D.A-Uppal, Hyderabad, Telangana, India www.hogarcontrols.com Phone : +91 844 844 0789...
