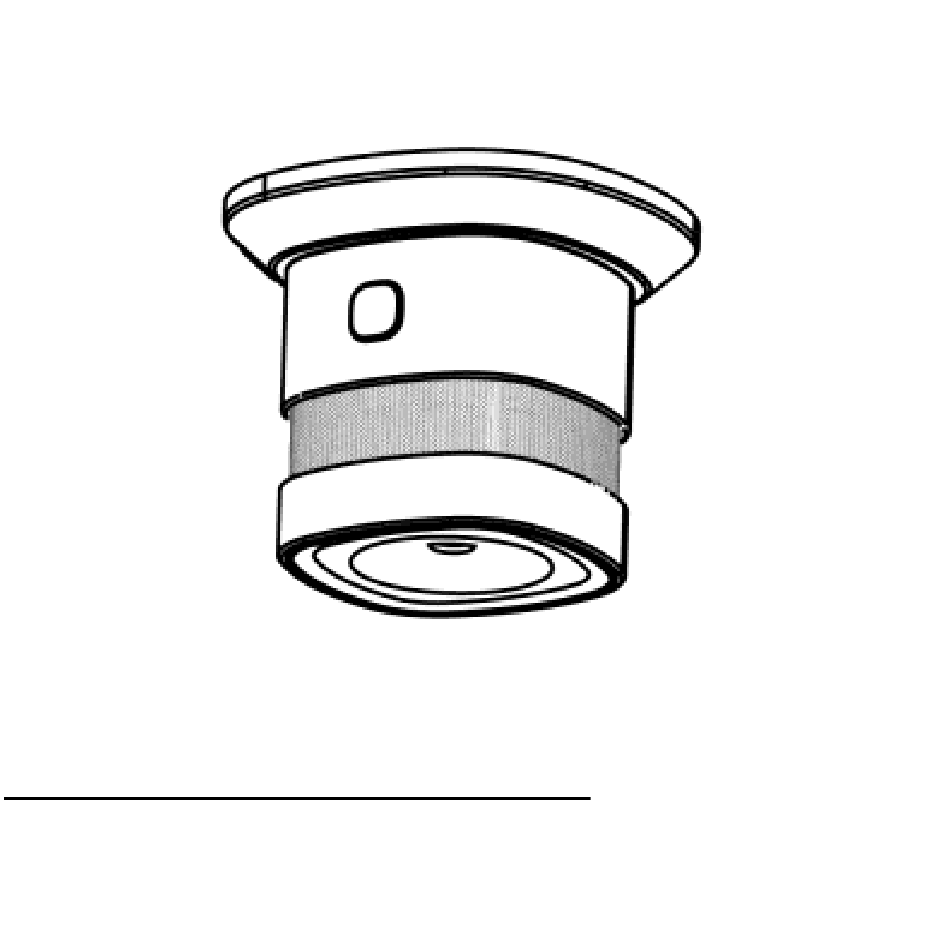

  • Page 1 SD324 ZigBee Smoke Detector Quick Start Guide...
  • Page 2: Get To Know Your Device

    1. Introduction The SD324 ZigBee smoke detector is integrated with an ultra-low- power ZigBee wireless module. It is a warning device that allows you to detect the presence of smoke in real time. Note: it cannot sense gas, heat, flame, and cannot prevent or put out fire.
  • Page 3 TEST/MUTE Reset button button & LED indicator...
  • Page 4: Buttons Introduction

    2.2. Buttons Introduction Test/mute button  Test the device to confirm it is able to work. Reset button  Set the device to join the ZigBee network.  Reset this device to factory default settings.
  • Page 5 2.3. LED Indicator The LED indicator status as below: LED status What it means Alarm sound Red LED 1) Testing flashes Rapid beeps 2) Alarm quickly Red LED 1) Low power mode Beep every flashes every 2) Fault 40 seconds 40 seconds The device is Green LED...
  • Page 6: Get Started

    3. Get started To get started, you will need:  A SEG-X3 Smart Gateway  A SD324 Smoke Detector  The mobile app Then follow the steps below: Step 1: Remove the pull tab to power on the device. Tip: If the there is no battery inside, please install a CR123A battery into it.
  • Page 7 Tip: for this step, you could also press the “Z” button of the gateway for two seconds until the LED indicator turn solid blue. Step 3: Use a pin key tool to press and hold the reset button for two seconds until the LED flashes green to add it to the system, the LED will turn solid for a while if pairing is successful, please go to the app to check if it is successful paired.
  • Page 8 Step 4: Install the device. The bracket should be affixed using screws or double-side tape. Please ensure all surface are clean, dry, flat and the temperature is over 10c before attempting to place the devices, or the adhesive will not be fully effective.
  • Page 9 If using screws, attach the bracket to the respective surfaces using the screws provided.
  • Page 10 Then rotate the smoke detector main body onto the bracket:...
  • Page 11 4. FAQ Q1. How can I return the device to default factory settings? A1: Use a pin key tool to press and hold the reset button for five seconds until the LED flashes six times.
  • Page 12: Technical Specifications

    5. Technical Specifications Power Voltage DC3V (CR123A battery) Static Current: ≤10uA Current Alarm Current: ≤60mA Sound Alarm 85dB/3m Temperature: -10 ~ 50℃ Operating Ambient Humidity: maximum 95%RH Mode: ZigBee Ad-Hoc Networking Networking Distance: ≤ 100 m Dimension 60(W) x 60(L) x 49.2(H) mm...
  • Page 13: Safety Notice

    6. Safety Notice WARNING: Failure to follow these safety notices could result in fire, electric shock, other injuries, or damage to the device or other property. Read all the safety notices below before using the device.  Avoid high humidity or extreme temperatures. ...
