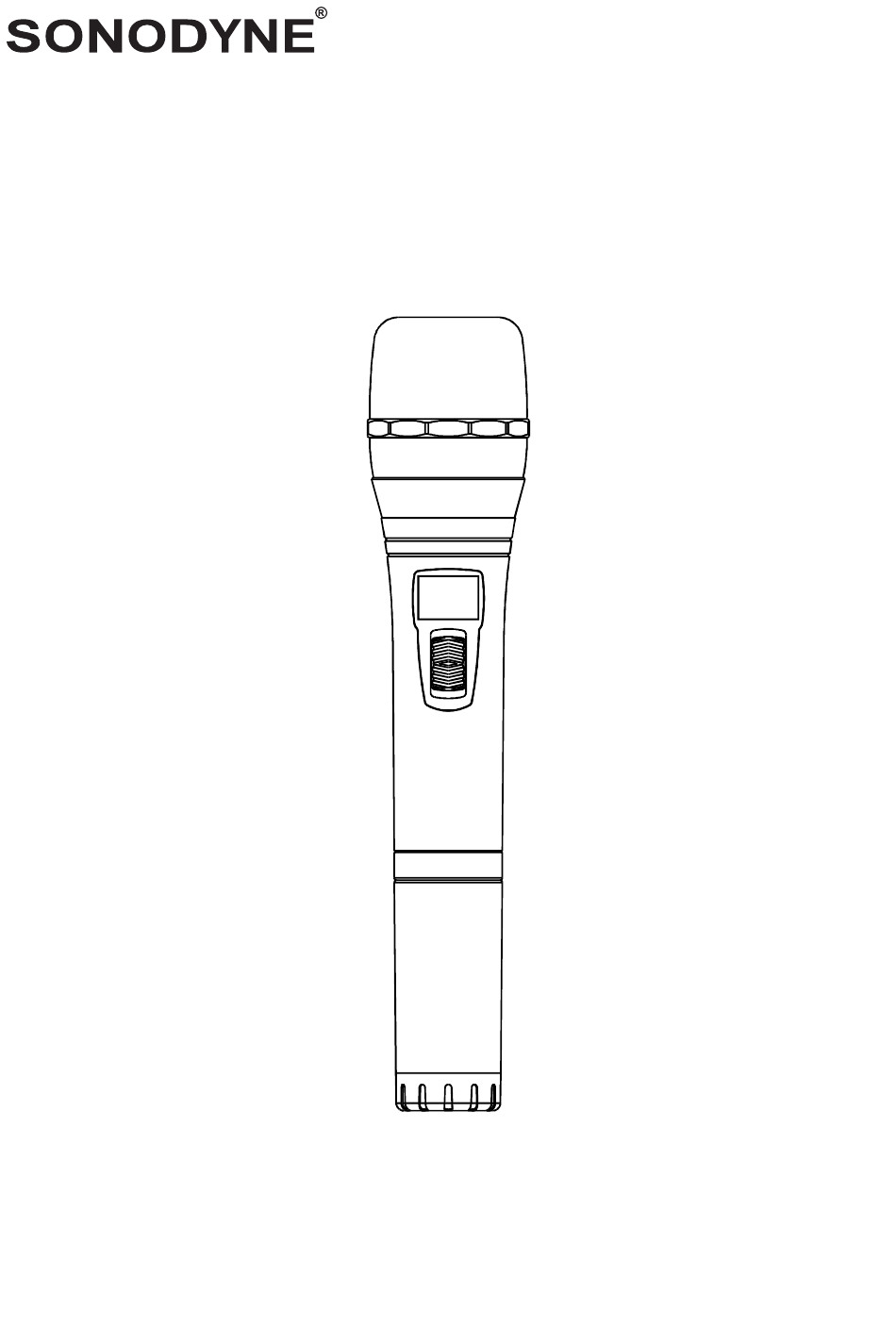

- Page 1 SVM SERIES SVM WDH1 I SVM WLH1 professional wireless microphone systems I owners manual www.sonodyne.com...
- Page 2 The receiver can be cleaned by using a soft cloth with water. Dry the receiver with a dry cloth and let it air dry for 15 minutes Please do not use volatile gasoline, diluents or other chemicals to clean the receiver as this will damage the surface SVM SERIES page 1...
- Page 3 5. RF: This lights up when the microphone is switched on. One is for CH-A and the other for CH-B RECEIVER REAR PANEL 6. ANTENNA 7. BALANCED AUDIO OUTPUT for CH-A and CH-B 8. UNBALANCED MIX OUT 9. DC INPUT JACK: 12V DC SVM SERIES page 2...
- Page 4 POWER SWITCH: Press the button for 2-3 seconds to turn on, the LED lights up. Press the button again for 2-3 seconds to turn off 3.5mm PHONE JACK for MIC LED INDICATOR: Lights up when turned on. Flashes in low battery condition LCD DISPLAY: Displays transmitting frequency BATTERY STORE COMPARTMENT BATTERY COVER SVM SERIES page 3...
- Page 5 XLR to 1/4” TRS cable 3. Unscrew the cover handle of the microphone counter-clockwise to check to see if there are batteries. If not, put the batteries in the microphones in the correct polarity. SVM SERIES page 4...
- Page 6 • Try to change the angle of the antenna • Connect the phone jack cable from the receiver to a microphone input (mixer, player etc). See page 4 for details PROBLEM: Distorted sound, feedback POSSIBLE CAUSE: • The 2 microphones are too close together • Batteries running low in microphones • Microphone volume is too high SOLUTION: • Separate the microphones further apart • Replace the batteries • Reduce the volume of the microphone • Move the receiver away from electric equipments SVM SERIES page 5...
- Page 7 XLR balanced socket, Unbalanced TRS 6.35mm socket TRANSMITTER TRANSMITTER POWER: 30mW SPURIOUS EMISSION: <40dB (with carrier) DISPLAY: BATTERY VOLTAGE: 1.5V x 2 pcs BATTERY LIFE: 6-8 hours Due to continuous improvements, all specifications are subject to change SVM SERIES page 6...
- Page 8 A product of the Mukherjee Innovation Centre Sonodyne Technologies Pvt. Ltd, 98 NB Block E New Alipore, Kolkata 700053, INDIA Tel: 1-800-123-37-36; E-mail: response@sonodyne.com Please visit us at www.sonodyne.com...
