Microflex 101-0019 Installation Operation & Specifications Manual

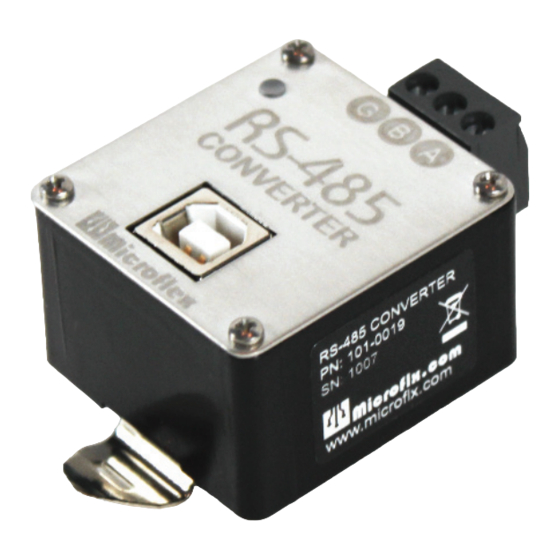

Usb to 2-wire rs-485 converter galvanically isolated, din rail mounted
Hide thumbs Also See for 101-0019:
Table of Contents

Advertisement

Quick Links

Download this manual
101-0019
USB to 2-Wire RS-485 Converter
Galvanically Isolated,
DIN Rail Mounted
Installation
Operation &
Specifications
Manual
General Description
The 101-0019 USB to RS-485 converter provides a simple, interface between
a PC or laptop computer with a USB port and 2-wire RS-485 devices. Virtual
serial port Universal Serial Bus (USB) drivers make this converter compa ble
with most so ware developed for RS-232 communica ons serial port interfaces
because it appears as an RS-232 port to your so ware. Switching between
receive and transmit is automa cally controlled, so RTS (Request To Send) is not
needed - maximizing so ware compa bility. Power for the converter is taken
from the USB port elimina ng the need for an external converter power supply.
It includes high ESD protec on (±15kV HBM) on transceiver, high common
mode transient immunity (30kV/μs), plus 2500V
transformer isola on
RMS
between the line transceiver and USB logic. Ideal for systems where the ground
loop may be broken allowing for large common mode voltage varia on.
DIN rail moun ng allows the converter to be quickly installed in your equipment
rack, along with other DIN mounted equipment.
620-0019 R2 © Microfl ex 2016-2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 101-0019 and is the answer not in the manual?

Questions and answers

Related Manuals for Microflex 101-0019

Summary of Contents for Microflex 101-0019

  • Page 1 Manual General Description The 101-0019 USB to RS-485 converter provides a simple, interface between a PC or laptop computer with a USB port and 2-wire RS-485 devices. Virtual serial port Universal Serial Bus (USB) drivers make this converter compa ble with most so ware developed for RS-232 communica ons serial port interfaces because it appears as an RS-232 port to your so ware.
  • Page 2 Driver Pre-Installation The USB drivers should be installed before the RS-485 converter is connected to the PC’s USB port. A er the drivers are installed, Windows will automa cally detect the converter when it is connected to a USB port and complete the setup.

  • Page 3: Uninstalling The Usb Driver

    Driver - Manually Installed To manually install the driver... 1. Connect the Converter to the USB port. 2. Open the Windows Device Manager. 3. The new device wizard will have added the converter under Ports (COM & LPT) and will appear as USB RS485 Serial Converter (COMx) .

  • Page 4: Changing The Com Port Number

    Changing the COM Port Number The assigned serial COM port number can be changed to any available COM port by using the Device Manager. Open the Device Manager and select . Expand in the list to see which port View > Devices by Type Ports (COM &...

  • Page 5: Software Setup

    Software Setup Make sure your so ware is set to use the same serial COM port that the RS-485 converter was assigned to. Refer to Finding the Assigned COM Port Number and Changing the COM Port Number in this manual for details. There are no hardware se ngs required by the RS-485 Converter and power is provided by the USB port.

  • Page 6: Safety Considerations

    (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Microflex, LLC could void the user’s authority to operate this equipment. Emissions EN55022: 1998...

  • Page 7: Specifications

    Specifications Enclosure Polycarbonate plas c and Stainless Steel Cover Weight ......................5 ounces Connector ......................USB-B Compa bility ................USB 1.1, USB 2.0, USB 3 Ac ve Current ....................35mA Max Suspend Current ..............Less than 600μA Typical RS-485 Termina on ............Plugable Screw Terminals, 26-12 AWG G = Isolated ground, A = Non-inver ng, B = Inver ng BUAD Rates ......300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 38400 19200, 38400, 57600, 115200...

  • Page 8: Limited Warranty

    RIGHT TO RECOVER DAMAGES CAUSED BY FAULT OR NEGLIGENCE ON THE PART OF MICROFLEX SHALL BE LIMITED TO THE AMOUNT THERETOFORE PAID BY THE CUSTOMER. MICROFLEX, LLC WILL NOT BE LIABLE FOR DAMAGES RESULTING FROM LOSS OF DATA, PROFITS, USE OF PRODUCTS, OR INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF ADVISED OF THE POSSIBILITIES THEREOF.
