Furniture
of
VERSION # 19-07-23
America
1 / 7

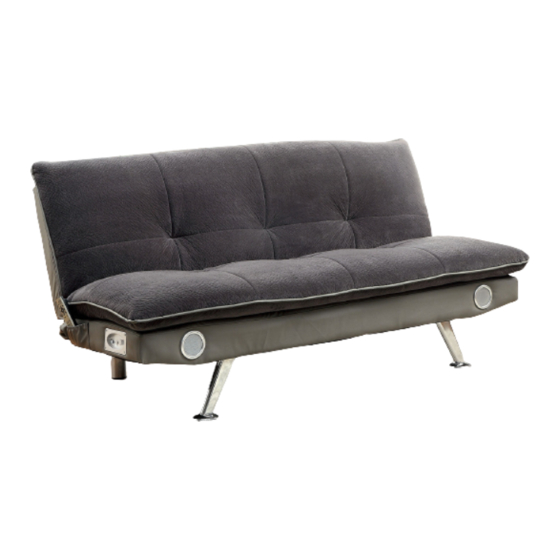

MODEL #
CM2675
Questions?
GIVE US A CALL: 1-888-980-5122
MON – FRI 8:30AM – 5:30PM (PST)
TOOLS REQUIRED
Philips
Screwdriver
(Not Included)
2 - Persons
Recommended
ASSEMBLY RATING
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Table of Contents
Related Manuals for Furniture of America Gallagher CM2675
Summary of Contents for Furniture of America Gallagher CM2675
- Page 1 MODEL # America Furniture CM2675 Questions? GIVE US A CALL: 1-888-980-5122 MON – FRI 8:30AM – 5:30PM (PST) TOOLS REQUIRED Philips Screwdriver (Not Included) 2 - Persons Recommended ASSEMBLY RATING EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 7...
- Page 5 SO F A CM2675 Please keep instructions for future reference. Check the quantity and irregularity of parts and hardware before you start. PARTS #1 1pc #3 2pcs #2 2pcs Futon Rear Leg Front Leg #4 1pc Power Adapter HARDWARE #B 1pc #C 20pcs #A 4pcs Bolt 1/4”x1”...
- Page 6 With the help of another person, carefully place the futon (#1) facing down on a protective surface. Remove the 2 front legs (#2) and the 2 rear legs (#3) located inside the futon (#1). Part #1 x 1pc Part #2 x 2pcs Part #3 x 2pcs 4pcs...
- Page 7 Carefully turn the futon upright. Make sure the futon is rested on a flat surface and does not feel loose or wobbly. If it does, double check that the bolts/screws are secured and properly tightened. To supply power to the unit, plug the barrel pin connector of the power adapter (#4) to the connection port of the futon and the metal prongs of the power adapter (#4) into the AC wall outlet.
