1200W WET & DRY VACUUM CLEANER
Item No. 594453
Model No. ZD110P-20L-1200W
ORIGINAL INSTRUCTION MANUAL
Please read these instructions fully before starting assembly.
HHGL Limited, MK9 1BA; HHGL (ROI) Limited, D02 X576
Technical Support & Parts
01904 727509
Mon-Fri 9am-5pm Sat-Sun 11am-4pm
www.coreservice.co.uk
Mar 21
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sovereign ZD110P-20L-1200W
Summary of Contents for Sovereign ZD110P-20L-1200W
- Page 1 1200W WET & DRY VACUUM CLEANER Item No. 594453 Model No. ZD110P-20L-1200W Technical Support & Parts 01904 727509 Mon-Fri 9am-5pm Sat-Sun 11am-4pm www.coreservice.co.uk ORIGINAL INSTRUCTION MANUAL Please read these instructions fully before starting assembly. HHGL Limited, MK9 1BA; HHGL (ROI) Limited, D02 X576...
-
Page 2: Table Of Contents
CONTENTS Contents General safety warnings Warning symbols In the box Intended use Assembly Operation Maintenance and storage Technical data Recycling and disposal UK plug Getting help Warranty... -
Page 3: General Safety Warnings
GENERAL SAFETY INFORMATION WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 4 Pull out the power plug in the following circumstances: Whenever the appliance is not in use, before opening the appliance, and before all cleaning and maintenance work. Never clean the appliance with solvents. Never pull the plug out of the socket by pulling the cable.
- Page 5 15. Have the appliance serviced only by an authorised after-sales service outlet. 16. Use the appliance only to carry out work for which it has been designed. 17. Take extra care when cleaning steps. 18. Use only genuine accessories and spare parts. Service Have your power tool serviced by a qualified repair person using only identical replacement...
-
Page 6: Warning Symbols
WARNING SYMBOLS Warning! Read the instructions Wear ear protection Wear eye protection Wear a dust mask Class II tool The product complies with the applicable European directives, and an evaluation method of conformity for these directives was done. Recycle unwanted materials instead of disposing of them as household waste. -
Page 7: In The Box

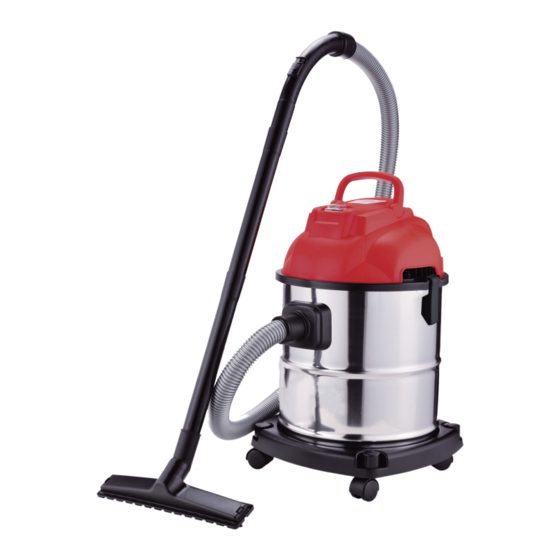

IN THE BOX Description 1. Appliance head 2. Handle 3. Blow hose outlet 4. On/Off Switch 5. Wheels x 4 6. Container 7. Suction hose outlet 8. Flexible hose 9. Air regulator 10. Extension tubes x 2 11. Floor tool 12. -
Page 8: Intended Use
INTENDED USE The wet and dry vacuum cleaner is designed for wet and dry vacuuming using the appropriate filter. This product is suitable for private domestic use, i.e cleaning dirt, debris and liquids from garages, workshops, courtyards, patios and gardens. This product is not suitable for the vacuuming of combustible, explosive or harmful substances. - Page 9 Assemble the filter WARNING! Never use the wet/dry vacuum cleaner without a filter! WARNING! Always ensure that the filters are properly secured! Assemble the foam filter (See Fig. B1) For wet vacuuming, slip the foam plastic filter provided over the filter basket. Assemble the cloth filter (See Fig.
- Page 10 Assembling the paper dirt bag (See Fig. C) For vacuuming fine, dry dirt it is recommended that you fit the paper dirt bag. Slip the paper dirt bag over the vacuuming hole. The dirt bag is suitable for dry vacuuming only. The dirt bag makes it easier to dispose of the sucked-in dust.
- Page 11 on the outlet. Turn the flexible hose to the right to secure the hose into position. (See Fig. D1) - Blowing Connect the flexible hose to the flexible blow hose outlet on the appliance head by inserting the hose into the outlet. (See Fig.
-
Page 12: Operation
3) For vacuuming, either the floor tool or crevice nozzle can be added to the end of the telescopic extension tube by simply pushing them onto the extension tube. (See Fig. F1, F2) OPERATION Switching on and off To start the machine, depress the on/off switch to ‘I’. To switch off, depress the on/off switch to ‘O’. - Page 13 Dry vacuuming WARNING! DO NOT use the foam filter for dry vacuuming applications. NOTE: It is recommended to use paper dirt bag for dry vacuuming applications, even though the Wet & Dry Vacuum can normally be used without the paper dirt bag. 1) Ensure the container is completely dry and free from dust and dirt.
- Page 14 Wet vacuuming 1) Ensure the container is completely dry and free from dust and dirt. 2) Only use the foam filter for wet vacuuming applications. Ensure you have already fitted the flexible hose, extension tubes, and, if required, the floor tool or crevice nozzle for wet vacuuming applications.
- Page 15 Blowing function WARNING! Wear a dust mask and eye protection (PPE) if blowing creates dust that might be inhaled. Keep bystanders clear from blowing debris. CAUTION: Any material left in the container may be blown out, causing injury. 1) Make sure the container is empty and completely dry before using it as a blower.
-
Page 16: Maintenance And Storage
3. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles. 4. Secure the product to prevent it from slipping or falling over. TECHNICAL DATA Model ZD110P-20L-1200W Voltage/power 220V-240V~ 50Hz /1200W Max. vacuum pressure 17kPa Max. air flow 25L/sec... -
Page 17: Recycling And Disposal
RECYCLING AND DISPOSAL Waste electrical products should not be disposed with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. UK PLUG If you need to replace the fitted plug then follow the instructions below. -
Page 18: Getting Help
GETTING HELP Our dedicated UK-based customer helpline is open 7 days a week to assist you with assembly, parts queries and technical support. We are open during office hours but you can always send an email via support@coreservice.co.uk. Our experts are here to get you back enjoying your garden in no time.
