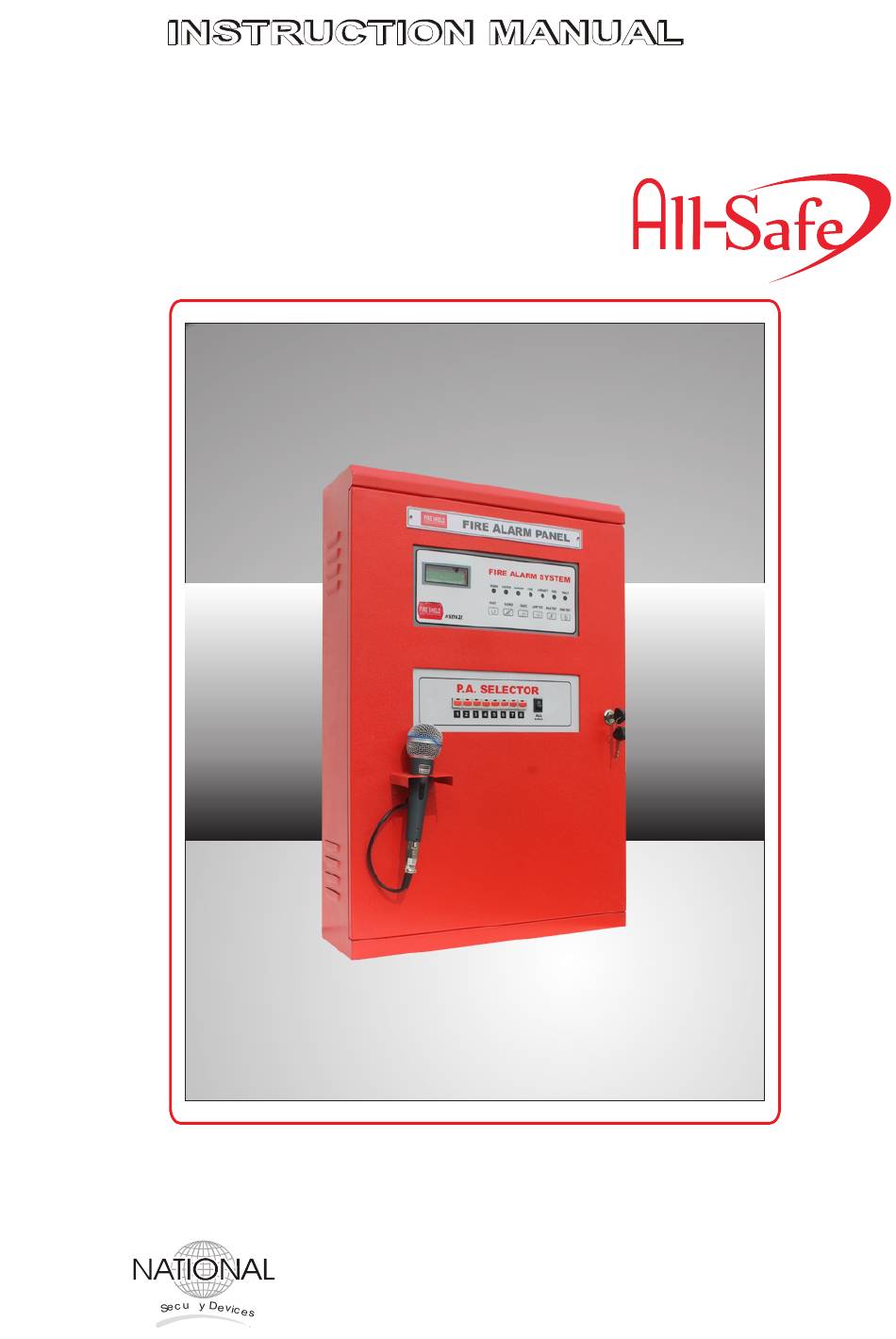

MODEL : 4/8 ZONE P.A. SYSTEM
ERTL TESTED AS PER IS:2189
NATIONAL SECURITY DEVICES
OFFICE : 485/14, SARPANCH KA BARA, MANDAWALI
FAZALPUR, DELHI-110092
WORKS : 2-A, Patparganj, Mayur Vihar,
Phase - 1, Delhi - 110091
rit
PHONE : 011 - 22751020, 64603599, Fax: 011 - 22751020
MOBIL
: 9891222660, E-mail : mailanilrawat@gmail.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for National Security Systems All-Safe 4 Zone P.A. SYSTEM
- Page 1 MODEL : 4/8 ZONE P.A. SYSTEM ERTL TESTED AS PER IS:2189 NATIONAL SECURITY DEVICES OFFICE : 485/14, SARPANCH KA BARA, MANDAWALI FAZALPUR, DELHI-110092 WORKS : 2-A, Patparganj, Mayur Vihar, Phase - 1, Delhi - 110091 PHONE : 011 - 22751020, 64603599, Fax: 011 - 22751020 MOBIL : 9891222660, E-mail : mailanilrawat@gmail.com...
- Page 2 INDEX Introduction....bout The product General General Features....Mechanical Construction Installation & Commissioning.. Installation Commissioning Indicator and controls.. Indicator Controls Input and Output..Zone Monitor Power Monitor Output Controls Technical Data... Warranty Test Report...
-
Page 3: About The Product
About The Company We heartily welcome you in the family of , is well NATIONAL SECURITY DEVICES known name in field of mfg fire alarm systems . We came in to the field of manufacturing and with in a short span of a decades time, We succeed to achieve upper layer of the industry, got good response &... -
Page 4: Mechanical Construction
GENERAL DESCRIPTION The microprocessor based automatic alarm and Control indication panel is designed to individual zoning the fire input and evacuated /alert fire in earliest practicable moment with the help announcement type hooter output .The panel operates on 220 V AC Mains with 24 V DC Battery as a stand by power , The built in circuit provide constant voltage charging to maintain the battery capacity. -
Page 5: Installation And Commissioning
INSTALLATION AND COMMISSIONING Installation The installation of the Fire detection and alarm should comply with a)The installation of the Electrical engineers (IEE) wiring regulation and standards. b)The Indian Standard of fire Detection and alarm for building. c)The installation cable should not be in the area of proximity of high voltage cable or induce electrical interference. -
Page 6: Control & Features
CONTROL & FEATURES MAINS ON SYSTEM ON CHARGER ON FUSE BLOWN LOW BATTERY FIRE LED FAULT LED ZONE TEST WALK TEST LAMP TEST EVACUTE SILANCE RESET LOCK & KEY ALL CALL SWITCH SELECTOR SWITCH SELECTOR LED MIKE SWITCH MICROPHONE NATIONAL SECURITY DEVICES OFFICE : 485/14, SARPANCH KA BARA, MANDAWALI FAZALPUR, DELHI-11092 PHONE : 011-22751020, 64603599 FAX : 01122751020... - Page 7 INDICATOR AND CONTROLS ZONE MONITOR INDICATIONS NORMAL: SYSTEM NORMAL information display on 16 X2 characters LCD .This time system ON power ON & Charger ON LED green glowing . FIRE : In case of fire LCD Display the information of respective zone with single RED LED glow. Normally these LED are OFF state.
- Page 8 CONTROL RESET :-This switch has provided for restarting the system after any event or function . SILENCE :-Whenever any signal comes from field’s device , the external buzzer beeping with the information on LCD of respective zone . To mute that audio alarm press silence button or in case of fire the hooter sound can be muted by pressing this button.
-
Page 9: Terminal Connection Diagram
Terminal Connection Diagram COMMON HOOTER(D.C.) COMMON Announcement HOOTER SPEAKER CUM SPEAKER NO NC NO NC HTR-1 HTR-2 HTR-3 HTR-4 HTR-5 HTR-6 HTR-7 HTR-8 FIRE FAULT 100V ZONE-1 ZONE-2 ZONE-3 ZONE-4 ZONE-5 ZONE-6 ZONE-7 ZONE-8 RELAY RELAY ZONE LINE For Detector & Manual Call Box Connection HOOTER LINE FOR Announcement Cum Hooter ZONE-1 TO ZONE-8 Connector :- These are the input terminal to connect the manual call box &... -
Page 10: Technical Data
TECHNICAL DATA OPERATING VOLTAGE : 24 DC+ 10% MAINS SUPPLY : 230V AC 190V AC STAND BY SUPPLY : 24V/4.5Amper HOOTER OUTPUT : 24V/2Amax RELAY RATING : 24V/3Amp POTENTIAL FREE CONTACT : FIRE & FAULT VOLTAGE CHARGER : 26.6V ZONE POWER NORMAL : 15.6MA/ZONE ALARM CURRENT : 35MA ZONE... -
Page 12: Warranty Certificate
WARRANTY CERTIFICATE Dear Customer , Your NATIONAL SECURITY DEVICE Fire alarm system is guaranteed against manufacturing defects of parts and component for a period of 12 months from the date of purchase______________________________ During this period any items found defective will be repaired at our works or though service center. -
Page 13: Test Report
TEST REPORT ....MANUAL ALARM CONTROL PANEL ....SPARE ZONES ....... CONTRACTOR NAME CLIENT /SITE BILL NO. / CHALLAN NO QUANTITY SERIAL NO. AC FUSE : .5 AMP DC FUSE : 6 AMP FIRE CONDITION : SYSTEM OK FAULT CONDITION : SYSTEM OK FIRE &... - Page 14 Dealers Name & Address Model No : Manual alarm control SR No : Sale date :...
- Page 15 : 485/14, SARPANCH KA BARA, MANDAWAL OFFICE FAZALPUR, DELHI-110092 WORKS : 2-A, Patparganj, Mayur Vihar,Phase - 1, Delhi - 110091 PHONE : 011 - 22751020, 6460359 9 TELEFAX : 011 - 22751020 MOBILE : 09891222660, E Mail : E-mail : mailanilrawat@gmail.com Website : www.agnialarms.com...
