Summary of Contents for TACKLIFE CF01

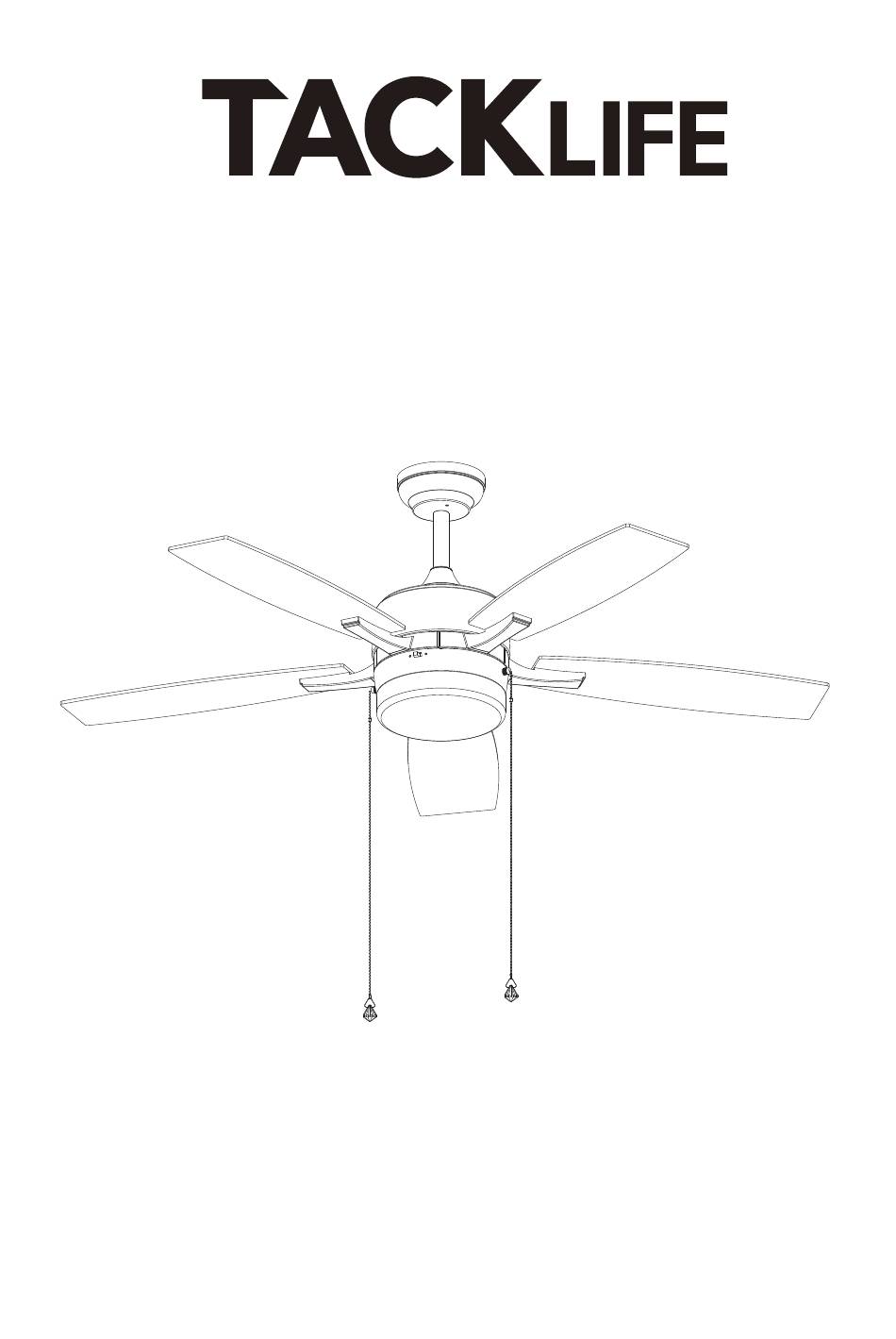

- Page 1 User Manual Ceiling Fan MODEL NO:CF01...
- Page 2 W ARNING W ARNING: T o avoid fire, shock and serious personal injury, please read the following instructions carefully. Important Safety Instructions 1.Read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams. 2.Before installing the fan, disconnect the power by removing fuses or turning off circuit breakers.
- Page 3 ASSEMBL Y DRA WING & P ARTS LIST -WITH LIGHT Unpacking Your Fan Unpack your fan and check the contents. Please check each item prior to installation. To reduce the chance of marks or possible damages, please remove the parts when required for installation.
- Page 4 HOW T O INST ALL THE F AN-WITH LIGHT 1. Securely attach the hanger bracke tto the ceiling joist using the lag bolt, flat wash e an r sd Ceiling joist springwasher supplied. (Figure 1) Hanger Bracket Lag Bolt/ FlatW asher/ Lock Washer Figure 1 Insert the blades to the blades bracket with...
- Page 5 HOW T O INST ALL THE F AN-WITH LIGHT 4.Remove and save the clevis pin and hairpin of the downrod.Put the downrod through the canopy and coupling cover. (Figure 4) 5. Loosen two set screws on the downrod support and then place the downrod into thedownrod support.(Figure 5).
- Page 6 HOW T O INST ALL THE F AN-WITH LIGHT 7.W iring instruction: WARNING To avoid possible electrica lshock, be sure electricity is turned off at the main fuse box before wiring Connect 120V main power (dwelling) to the ceiling fan. - Insert the AC IN N to the white N of the motor assembly.
- Page 7 HOW T O INST ALL THE F AN-WITH LIGHT 9. Install the Facing Cover into the motor axis. (Figure 9) Figure 9 10. Mount the canopy by tightening the two screws. (Figure 10) Figure 10 11.Attach the Chain Bead And Pendant to the ceiling fan.(Figure 11) OPERATION...
- Page 8 MAINTENANCE 1. Periodic cleaning of your new ceiling fan is W ARNING the only maintenance that is needed. Do not use solvents when cleaning your 2. When cleaning, use only a soft brush or lint ceiling fan. It could damage the motor free cloth to avoid scratching the finish.
- Page 9 Warranty Registration We are glad to invite to register the warranty information at www.tacklifetools.com.After registration,you may kindly enjoy the exclusive service...
- Page 10 Tel:929-533-7707 Shenzhen Take Tools Co., Ltd. www.tacklifetools.com www.facebook.com/Tacklife.US support@tacklifetools.com No.B714,Niulanqian Building, Minzhi Road, Longhua District, Shenzhen, Guangdong, China 518000...
