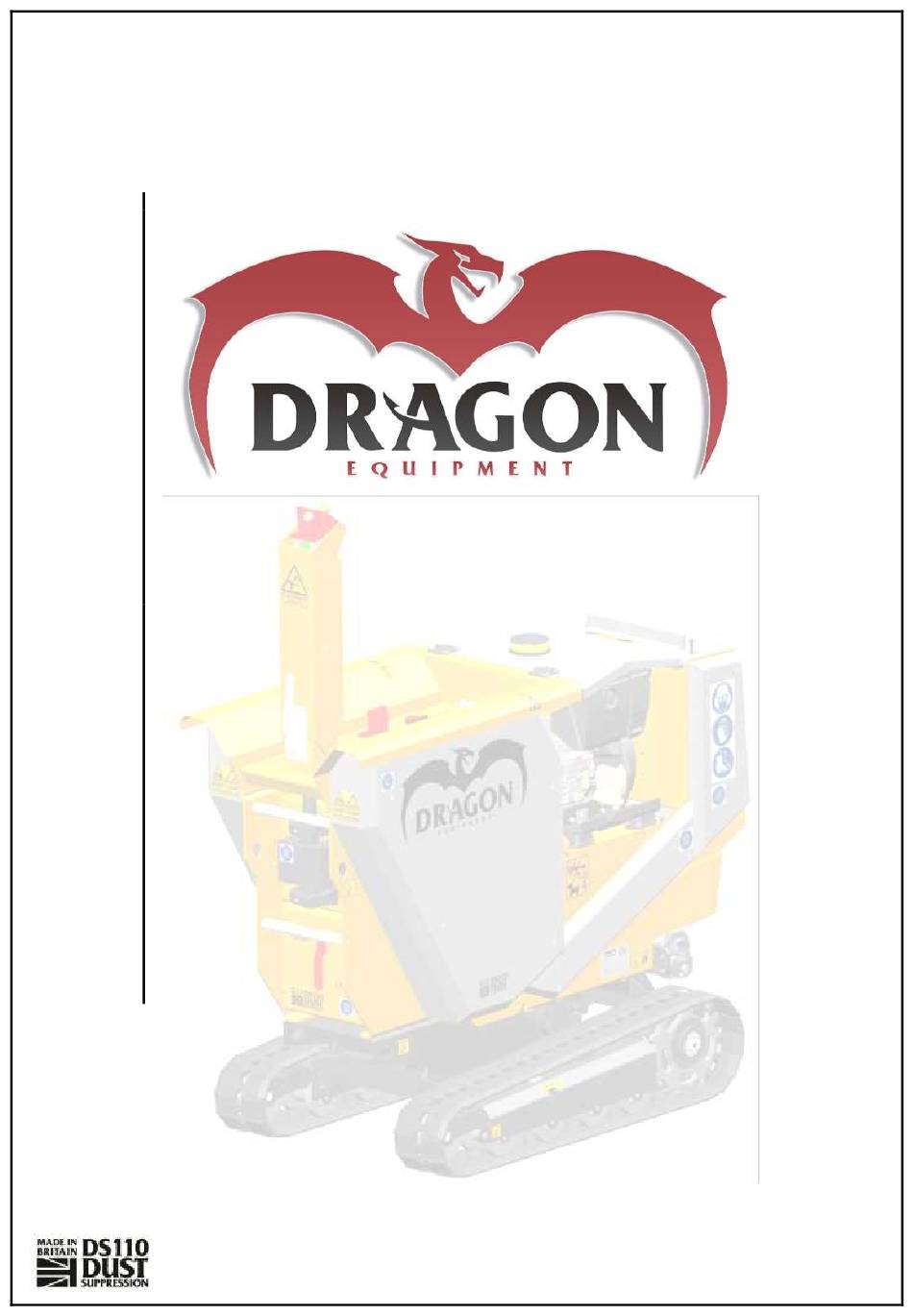

DS110 DUST
SUPPRESSION USER
MANUAL
Manual
V1.1 Mk1
Page 1 of 23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS110 and is the answer not in the manual?

Questions and answers

Related Manuals for Dragon Wholesaling DS110

Summary of Contents for Dragon Wholesaling DS110

  • Page 1 DS110 DUST SUPPRESSION USER MANUAL Manual V1.1 Mk1 Page 1 of 23...

  • Page 2: Table Of Contents

    Table of Contents Introduction ............................4 Important Health and Safety Information .................... 4 Specifications ............................5 Parts Locator ............................6 Safe Working ............................7 Operator’s Personal Protective Equipment (PPE) ................. 7 Basic Operation Safety ......................... 7 General Safety Matters ........................7 Engine Noise ............................
  • Page 3 Declaration of Conformity ........................22 Identification Plate ..........................23 List of Figures: Figure 1: DS110 Dimensions ........................5 Figure 2: Parts Locator ..........................6 Figure 3: Summary of Remote Control Functionality ................9 Figure 4: Summary of Machine Controls ....................9 Figure 5: Engine Parts &...

  • Page 4: Introduction

    The DS110 is capable of spraying water up to 23m, its nozzle can rotate 110° Left to Right and 45° Up and Down both controlled via programmable remote control. The addition of a tow ball allows the attachment of a bowser containing up to 3,000 litres.

  • Page 5: Specifications

    1,822mm  Height: 1,327mm  Weight: 670 kg  Engine Power: 9kW (12 HP)  Start: Electric and recoil  Fuel: Diesel  Water Supply: 36 litres per minute Figure 1: DS110 Dimensions Manual V1.1 Mk1 Page 5 of 23...

  • Page 6: Parts Locator

    Lance / Spray Lever Adjustment Main Guard Track Figure 2: Parts Locator The DS110 has the following fixed guards for the protection of the operator, other individuals and the environment:  Hydraulic Motors Guard: Protects hydraulic motors from damage during operation. ...

  • Page 7: Safe Working

    Ensure a fire extinguisher is available on site.  Ensure a personal first aid kit is available and know its location.  Do not operate the DS110 in low light levels and be aware of changeable weather.  Do not smoke when refuelling. ...

  • Page 8: Engine Noise

    The average sound pressure level at seven metres for the Hatz 1B50 is 82 dB(A). While operating the DS110 ensure that all individuals comply with the Control of Noise at Work Regulations 2005 (Noise Regulations 2005) to prevent or reduce risks to health and safety from exposure to noise at work.

  • Page 9: Operating Instructions

    Operating Instructions Once started, the DS110 is controlled by a wireless industrial transmitter which can be charged using the onboard USB port. Feature Description Feature Description Slow Track / Auto Water Horn Fast Track / Manual Water Water ON Power...

  • Page 10: Storage And Parking

    Check the chute is clear and there are no obstructions. Do not use or attempt to start  Visually check for fluid leaks. the DS110 without the protective  Ensure there is sufficient fuel in the fuel tank. guarding in place. Failure to do ...

  • Page 11: Stopping The Engine

    Exhaust Fuel Tank & Filler Engine Cover Engine Speed: Air Filter No-Start  Idle  Fast Recoil Start Engine Speed Adjusment Oil Drain Oil Fill / DipStick Figure 5: Engine Parts & Controls Stopping the Engine  Move the Throttle Lever to the idle position. ...

  • Page 12: Operating The Machine

    Operating the Machine The DS110 is designed to operate in either Water or Track mode, but not both at the same time. The machine will start in Track mode. Checks Before Tracking  Wherever possible make sure the area around the machine is clear of personnel and obstructions before moving.

  • Page 13: Using The High-Pressure Lance

    Using the High-Pressure Lance  Connect the High-Pressure Lance to the Machine  Move the Lever on the front of the machine to the LANCE Position.  Use both hands on the Lance during operation.  To start pumping water press WATER ON. ...

  • Page 14: Service Instructions

    The method of securing the DS110 can vary depending on the type of carrier and the position of tie- down points available on the carrier. It is recommended that correctly rated ratchet straps are used to secure the machine via the track frame or over the tracks to the carrier lashing points.

  • Page 15: Service Schedule

    Service Schedule First 5 Hours  Page 15 Check for hydraulic oil leaks Every 8 Hours or Daily  Refer to engine manual Check engine oil level  Refer to engine manual Check engine intake area  Refer to engine manual Check engine air filter maintenance indicator ...

  • Page 16: Changing Hydraulic Oil Filter

    Changing Hydraulic Oil Filter  Undo filter cap as shown in Figure 6.  Partially remove the filter and allow the oil to drain for five minutes.  Remove filter once all hydraulic oil has drained.  Install a new filter element and refit the filter cap to the filter housing. Take care, not to over tighten the three bolts.

  • Page 17: Grease Moving Parts

    Grease Moving Parts Periodic lubrication of moving parts will help reduce the possibility of mechanical failures. Grease Bearings  Grease each nipple on the front- of the machine as shown below. Grease Points x2 No. Off: Lubricate daily with one pump of grease using grease gun.

  • Page 18: Check Fittings

    Check Fittings The Dragon Equipment DS110 is subject to large loads during its normal course of operation. Therefore, there is a possibility that nuts and bolts and other fastenings can lose their torque over time. It is vital that checks are made at regular intervals to ensure the security of these fasteners by using a torque wrench to the required torque (see below).

  • Page 19: Battery Safety Information

    Battery Safety Information The rechargeable lead-acid battery located behind the RH Main Guard is a sealed unit that is not hazardous when used according to the recommendations of the manufacturer. Safety advice:  Keep out of reach from children.  Keep away from moisture.

  • Page 20: Warranty Statement

    Warranty Statement Each machine supplied by Dragon Equipment Ltd is accompanied by a registration form that must be completed in full and returned to: Sales Manager (email: sales@dragon-equipment.co.uk) Failure to register your machine may invalidate the manufacturer’s warranty. Liability The warranty period begins when the product is delivered to the first purchaser. Only genuine parts may be used to carry out repairs.
  • Page 21 Warranty Claim Submission Procedures Claims must be reported accurately along with all relevant details given, as follows:  OWNERS NAME AND ADDRESS: to include site location, if different.  MACHINE TYPE:  DATE OF FAILURE:  INSTALLATION DATE: The actual date of installation, not the invoice date. ...

  • Page 22: Declaration Of Conformity

    Declaration of Conformity Manual V1.1 Mk1 Page 22 of 23...

  • Page 23: Identification Plate

    Identification Plate Information regarding the machine model, code, chassis serial number, power and machine weight can be found on the serial number plate. This plate is located on the rear left-hand side of the machine and the serial number should always be referenced in any correspondence with the dealer or manufacturer.
