Core CJR620WHBY User Manual

Core CJR620WHBY User Manual

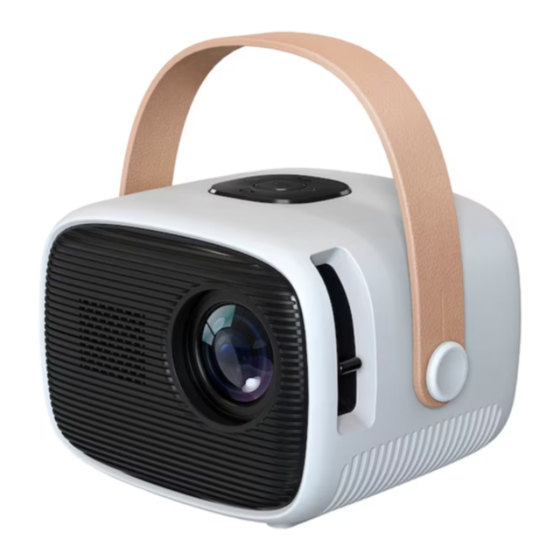

Mini portable home theater projector

Advertisement

CJR620WHBY
User Manual
Mini Portable Home Theater Projector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CJR620WHBY and is the answer not in the manual?

Questions and answers

Summary of Contents for Core CJR620WHBY

  • Page 1 CJR620WHBY User Manual Mini Portable Home Theater Projector...
  • Page 3: Table Of Contents

    Table of Contents Read Before Use Features and Inputs Remote Attaching the Handle Powering On/Off Your Device Distance Projector Placement Adjusting the Focus Connecting to Other Devices Sub Menus Projector Menus Troubleshooting Specifications Need Help? Warranty Information In the Box ●...
  • Page 4: Read Before Use

    Read Before Use ● Read instructions carefully. ● Install in accordance with manufacturer’s instructions. ● Do not use device near water. ● Clean only with dry cloth. ● Do not block any ventilation openings. ● Do not install near any heat sources such as radiators, stoves, or other units (including amplifiers) which produce heat.
  • Page 5 Read Before Use WARNING: ● Shock hazard - do not open the device. ● To reduce the risk of fire or electric shock, do not expose this device to rain, moisture, dripping, or splashing. ● Objects filled with liquids, such as vases, should not be placed on the device.
  • Page 6: Features And Inputs

    Features and Inputs Source Left Right Return Lens 1. Power ON/OFF 5. DC IN Port 2. USB Port 6. Micro SD Card Slot 3. HDMI Input 7. AV Input ® 4. IR Window 8. Headphone Jack...
  • Page 7: Remote

    Remote Power: Press to power ON / OFF Previous/Next: Press to skip between chapters Play/Pause: Press to play or pause an individual chapter or track Source: Press to select media source (AV, PC, HDMI , MEDIA) ® Menu: Press to access projector settings Arrows/OK: Press to navigate on-screen menu(s) and make a selection Mute: Press to mute volume...
  • Page 8: Attaching The Handle

    Remote (Continued) Batteries Remove the battery compartment cover on the back of the remote by sliding it off carefully. Insert 2xAAA batteries (not included), referring to the polarity markings. Replace the cover. NOTE: Batteries should not be exposed to extreme heat. Be sure that the battery polarity is installed correctly.
  • Page 9: Powering On/Off Your Device

    Powering On/Off Your Device Power On 1. Connect the small end of the power adapter into the DC IN port on the projector, and then plug the adapter body into a power outlet. The projector’s indicator light will turn red. 2.
  • Page 10: Projector Placement

    Projector Placement Your projector can be installed in four different configurations (see below): Front Table Rear Table Select this location with the Select this location with the projector placed near the floor in projector placed near the floor front of the screen. behind the screen.
  • Page 11 Projector Placement (Continued) Mounting Projector on Ceiling When mounting the projector to the ceiling, please purchase a projector mount recommended by an installation professional and follow the instructions that come with the mount. Before installing the projector on the ceiling, please check to make sure the ceiling structure can support the weight of the projector and the mount.
  • Page 12: Adjusting The Focus

    Adjusting the Focus Refer to the diagram below to adjust the focus. Turn the knob while observing the image pixels near the center of the screen. Optimal focus is obtained when the pixels are clearly visible. Depending on the projected screen size, the focus near the screen edges may be less sharp than the screen center.
  • Page 13: Connecting To Other Devices

    Connecting to Other Devices Select an Input Source Power on the projector. Press the Source button on the projector or remote to select the desired input source (AV / HDMI / Media Player). ® You may connect various input devices to the projector according to the following instructions.
  • Page 14 Connecting to Other Devices (Continued) HDMI ® Follow the diagram below to connect your HDMI cable (not included) to ® your compatible device (laptop, DVD player, streaming device, smartphone, etc). 1. Turn off the projector before connecting your HDMI cable. Plug one ®...
  • Page 15 Connecting to Other Devices (Continued) Follow the diagram below to connect your AV cable (not included) to the device. 1. Turn off the projector before connecting your AV cable. 2. Plug the single end into the projector’s AV input, and match the other ends into the ports on your output device.
  • Page 16 Connecting to Other Devices (Continued) Headphone Jack You may connect headphones or a wired audio system (not included) to the projector via the 3.5mm jack. Bluetooth -Enabled Devices ® Follow the details below to connect your Bluetooth -enabled device (such as ®...
  • Page 17: Sub Menus

    Sub Menus Sub Menu on Photo Screen 1. With Photo Playback, press the OK button to view functions as shown in the diagram at left. 2. Use the arrows on the Navigator to select an icon, and press the OK button to play the special function.
  • Page 18: Projector Menus

    Projector Menus Menu 01 Press the Menu button to enter the Brightness projector’s menu. Press again to return to the previous screen. Use Navigator buttons to select the adjustments shown on the left. Picture Mode: Use the left/right arrows on the Navigator to select different picture effects (Soft / Standard / Vivid / User).
  • Page 19 Projector Menus (Continued) Menu 03 Press the Menu button to enter the projector’s menu. Press again to return to the previous screen. Use Navigator buttons to select the adjustments shown on the left. OSD Language: Use Navigator to select different languages. Restore Factory Default: Use the left/right arrows on the Navigator to select Y or N.
  • Page 20: Troubleshooting

    Troubleshooting Before seeking maintenance service, please review the following troubleshooting tips: Projector is not turning on. Be sure that the power adapter is plugged in securely. Press the power button on the projector or the remote to turn it on. The projector is turned on, but images are not displaying.
  • Page 21: Specifications

    Specifications Native display resolution 800 x 480 Supported video resolutions 1080p, 1080i, 720p, 576i, 480p, 480i Light source type Power DC 12V/3A; 110-240V, 50/60Hz Brightness 40 lumens Connection types HDMI , USB, Micro SD card, AV, audio ® Inputs HDMI input x 1 / AV x 1 / ®...
  • Page 22: Need Help

    You may also reach a Core Innovations customer service representative by calling 1-833-909-CORE (1-833-909-2673). We are available Monday - Friday, 9am - 5pm PST, except major holidays. Core Innovations strongly urges customers to email their inquiry prior to calling, as this will enable us to better assist you.
  • Page 23 Warranty Information to humidity, water or other liquid contact, earthquake or other external cause; (c) to defects caused by normal wear and tear or otherwise due to the normal aging of the product; (d) if any serial number has been removed or defaced from the product; or (e) to damage caused by installation or mounting, assembly or disassembly, use with a third party device, cable, protective or decorative cover/case, component or product that does not meet the Company’s product specifications.
  • Page 24 Core Innovations intends to make this manual accurate and complete. However, Core Innovations makes no claim that the information contained herein covers all details and conditions. The information in this document is subject to change without notice at any time.
  • Page 25 FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
