Thomas Dudley Kinetic Quick Installation Manual

1
KINETIC QUICK INSTALLATION GUIDE
This is the quick installation and setup guide for Kinetic.

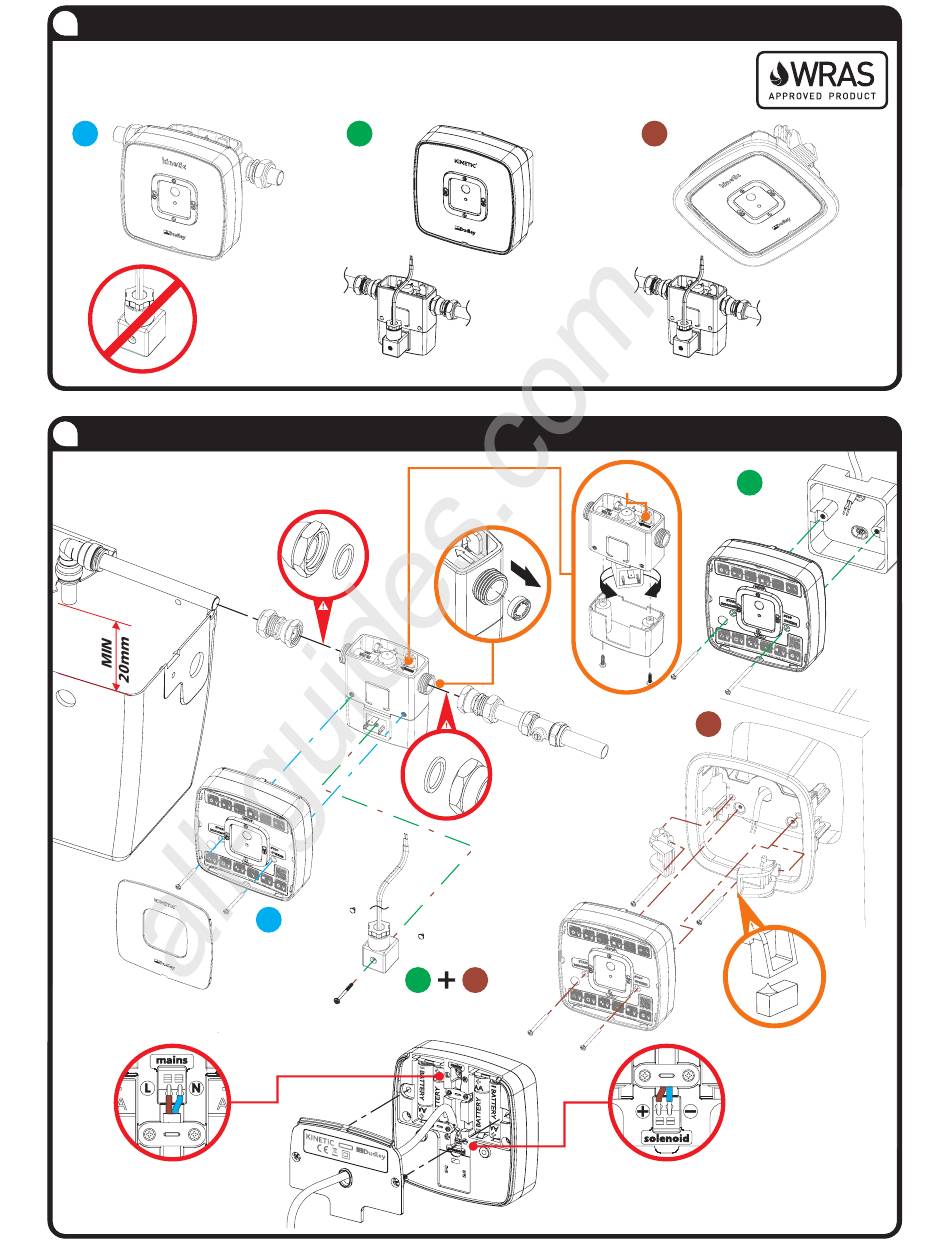

Select Kinetic mounting option below.
a
Pipe Mounted
Solenoid Cable
Not Required
(Battery ONLY)
1
KINETIC QUICK INSTALLATION GUIDE Continued
IMPORTANT: Ensure water supply is off
before installing the Kinetic valve.
IMPORTANT: If the Kinetic is to
be mains powered, it must be
tted with a 3amp fused spur.
All manuals and user guides at all-guides.com
b
Below 1.5 bar
pressure remove
ow restrictor
a
b
®
23 0v
~
50 H
z S/ N:
XX XX
1. 5W
w w w
.th om
© 20 as du
dl ey .c
16 Th
om as o. uk
Du dl
ey Lt
d
c
Remote Mounted
On Pattress Box
(Not Supplied)
Cable Required
(Battery and/or
Mains Powered)
Flow
direction
Solenoid is
reversible
Bezel cutting
template
located at
the back of
instructions
booklet
c
IMPORTANT: Ensure that the
wires are in the correct position.
Brown to '+' & blue to '-'
Flush Mounted
Solenoid Cable
Required
(Battery and/or
Mains Powered)
b
c
Use provided self-
adhesive spacers if
required
