1.0 Duct Mounted Burst Fire Heater
This Burst Fire Heater should only be used as a supplementary
heater in conjunction with specified MVHR Ventilation Unit:
AP-EH500-L/R-CHELSEA.
The AP-EH500 heater unit is a duct mounted heater, with an electric
heating element. The heater is supplied with a burst fire output
controller and room mounted temperature set-point adjustment
control unit.
The heater is intended to provide individual room temperature
control as a supplement to the LPHW heating supply integrated with
the MVHR ventilation unit, providing typically 30 % of the heating
load of the room.
On application of a heating enable signal (volt free) from the central
controller, and verified fan operation, the electric heater control is
enabled, and the room occupant is able to adjust the set-point
controller to the required temperature.

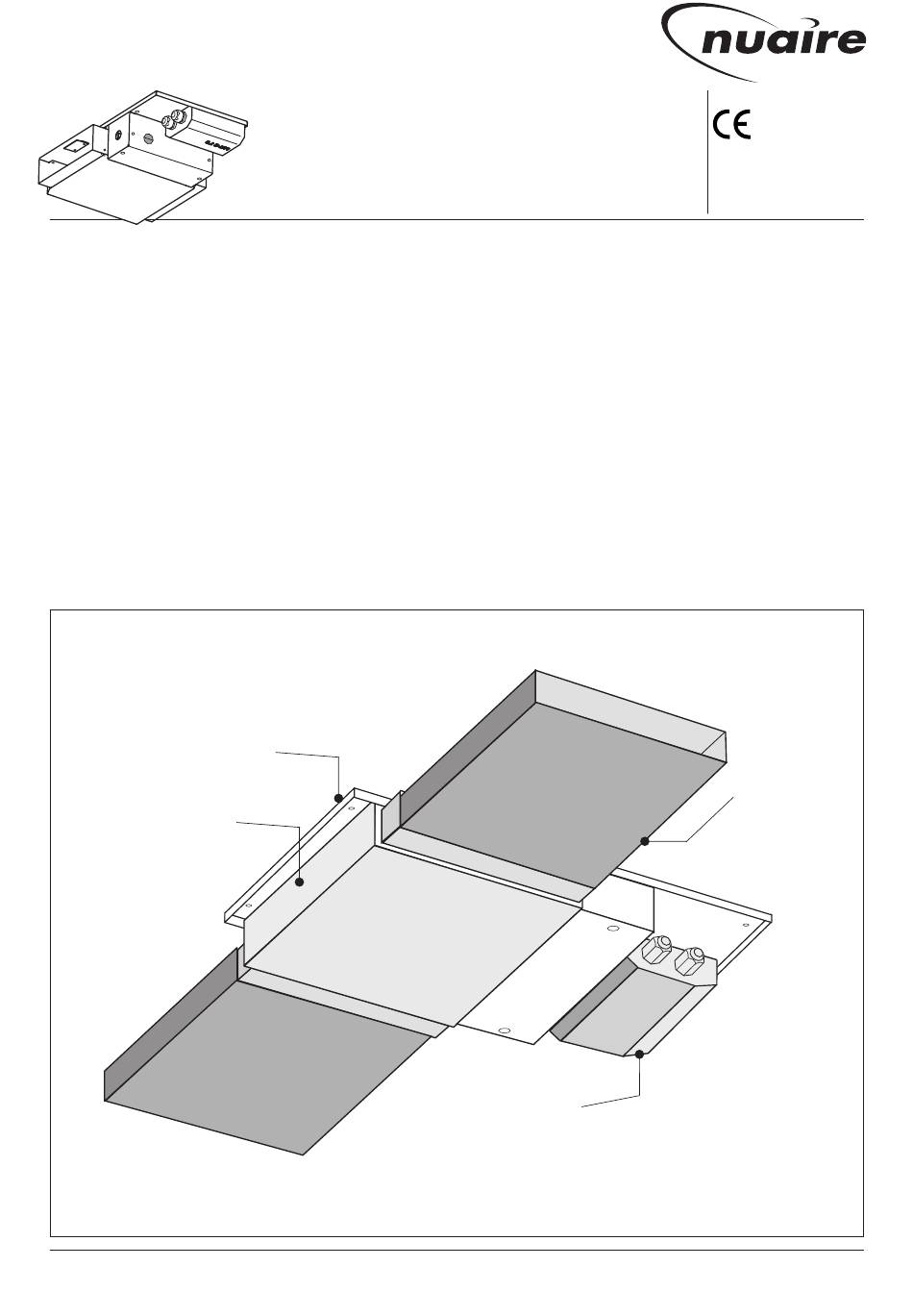

Fig 1. General view of unit and components.
Insulation
Nuaire: A Trading Division of Polypipe Limited Western Industrial Estate Caerphilly United Kingdom CF83 1NA
T: 029 2088 5911 F: 029 2088 7033 E: info@nuaire.co.uk W: www.nuaire.co.uk
AP-EH500-L/R-CHELSEA
Duct Mounted Burst Fire Heater
Installation Guide
Backplate
2.0 Installation of the Heater
Installation must be completed by qualified personnel only.
The Heater must be fitted indoors away from any water spray or
source of steam.
Heater to be secured directly to ceiling slab and then rectangular
ducting(by others) fitted directly to inlet and outlet spigots.
Burst Fire Controller
1
The EMC Directive
2014/30/EU
The Low Voltage
Directive
2014/35/EU
Burst Fire Controller
09. 05. 17. Leaflet Number 671652
Advertisement
Related Manuals for Nuaire Group AP-EH500-L/R-CHELSEA
Summary of Contents for Nuaire Group AP-EH500-L/R-CHELSEA
- Page 1 The EMC Directive AP-EH500-L/R-CHELSEA 2014/30/EU The Low Voltage Directive Duct Mounted Burst Fire Heater 2014/35/EU Installation Guide 1.0 Duct Mounted Burst Fire Heater 2.0 Installation of the Heater This Burst Fire Heater should only be used as a supplementary Installation must be completed by qualified personnel only.
- Page 2 Installation Guide AP-EH500-L/R-CHELSEA Duct Mounted Burst Fire Heater 3.0 Burst Fire Heater General Specification The electric heater assembly shall be constructed of galvanised mild steel (natural finish). The heating element shall be of steel sheathed type, and be rated at 500W output with a 230V 50 Hz 1ph supply.
- Page 3 Installation Guide AP-EH500-L/R-CHELSEA Duct Mounted Burst Fire Heater 4.0 Fan Unit Dimensions (mm) Fig 3. Dimensions for Left and Right hand units. AP-EH500-L/R-CHELSEA (Left hand Burst Heater) 314.0 Airflow direction 86.5 434.5 AP-EH500-L/R-CHELSEA (Right hand Burst Heater) 314.0 Airflow direction 86.5...
-
Page 4: Replacement Of Parts
Installation Guide AP-EH500-L/R-CHELSEA Duct Mounted Burst Fire Heater 5.0 Wiring Fig 4. Mains wiring. Burst Fire Heater Control (PR1-E-1.5kW) CAUTION: Disconnect mains supply prior to any service work. Mount the controller with the cooling fins in a vertical position. Ensure there is adequate unrestricted air flow through the fins. - Page 5 Installation Guide AP-EH500-L/R-CHELSEA Duct Mounted Burst Fire Heater 9.0 Certification DECLARATION OF INCORPORATION AND INFORMATION FOR SAFE INSTALLATION, OPERATION AND MAINTENANCE We declare that the machinery named below is intended to be assembled with Signature of manufacture representatives: other components to constitute a system of machinery.
