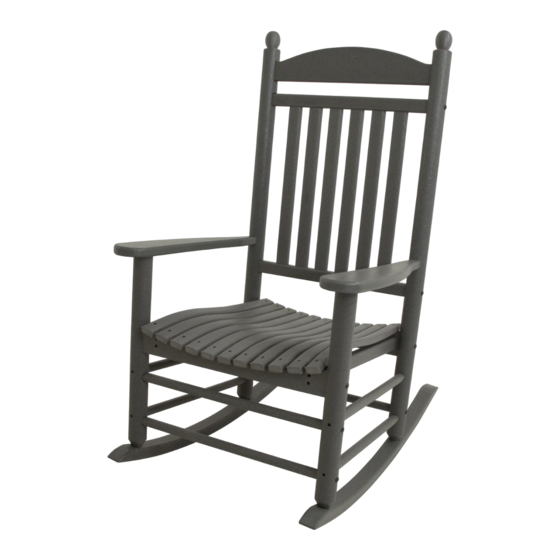

Polywood J147 Assembly Instructions

Hide thumbs

Model: J147

__(1) Hardware pack

__(2) Sideframes

__(2) Rocker bottoms

__(1) Back insert

__(1) Seat insert

__(1) Seat frame

__(2) Long braces

__(1) Short brace

__(1) Head piece

TOOLS NEEDED

4mm Hex Key, Allen, T-handle

(INCLUDED)

4mm Hex key for drill:

INCLUDED

Qty.

Description

Finial w/dowel screw

.27 X 3 SOCKET WAFER A

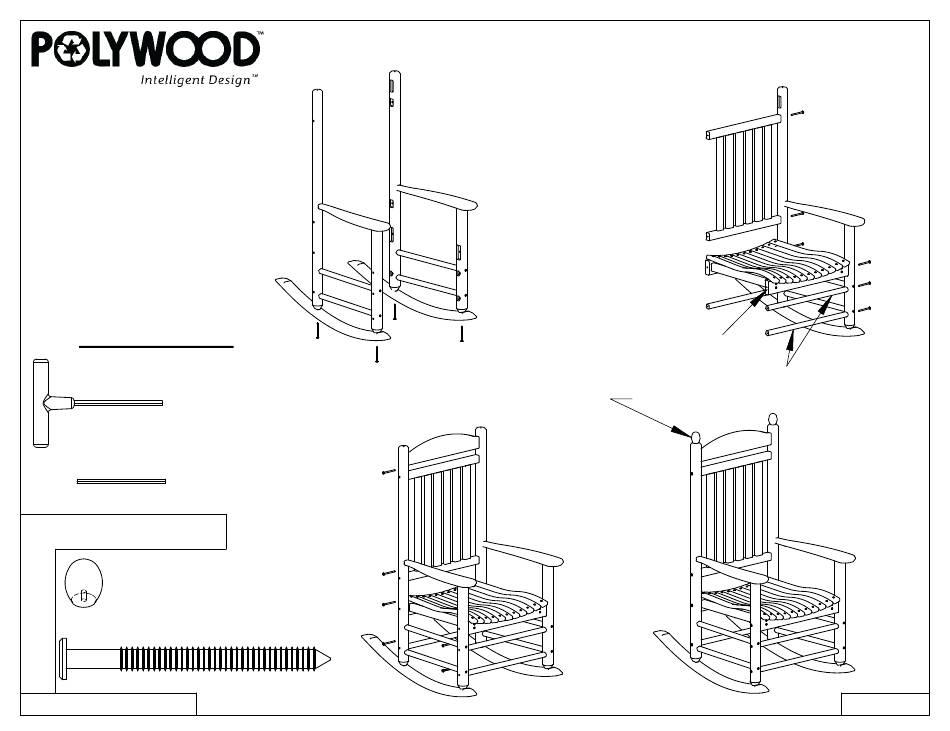

ASSEMBLY INSTRUCTIONS

Step 1

Attach rocker bottoms to sideframes

using (4) .27x3 wafer screws.

NOTE: Partialy thread both screws

into post before tightening.

Rocker bottoms may require some

flexing for proper fit.

Step 3

Insert head piece into top of post

Repeat step 2 on other side

HARDWARE IS COATED STAINLESS STEEL UNLESS OTHERWISE SPECIFIED

Step 2

Attach long braces, short brace, seat frame and back frame

to one of the sideframes using (7) .27x3 wafer screws.

Note: front of seat is wider

Short Brace

Step 4

Attach finials to top of post

Long braces

9/12/2012
