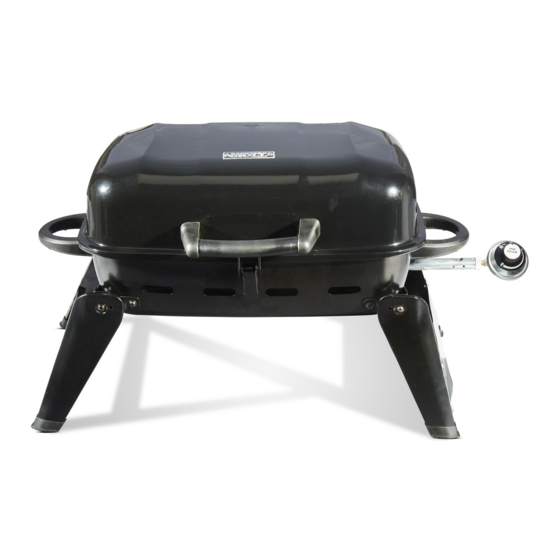

Outdoor LP Gas Barbecue Grill
Model No. GBT1713W-C
Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Expanded View & Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
The use and installation must conform with local codes or, in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1,
or Propane Storage and Handling Code, B149.2, or the Standard for Recreational Vehicles, ANSI A 119.2/
NFPA 1192, and CSA Z240 RV Series, Recreational Vehicle Code, as applicable .
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION . PLEASE READ AND KEEP
FOR FUTURE REFERENCE .
If you are assembling this unit for someone else, give this manual to them to read and save for future
reference .
If you have questions or need assistance during assembly,
please call 1-800-694-0013
Manufactured in China for: RevoAce Inc . Limited
Hong Kong, China
OWNER'S MANUAL
WARNING

Table of Contents

FOR YOUR SAFETY:
1. Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
2. Read the installation, operation, and
maintenance instructions thoroughly
before installing or servicing this
equipment.
3. Failure to follow these instructions could
result in fire or explosion, which could
cause property damage, personal injury, or
death.
4. This instruction manual contains Important
information necessary for the proper
assembly and safe use of the appliance.
5. Read and follow all warnings and
instructions before assembling and using
the appliance.
6. Follow all warnings and instructions when
using the appliance.
7. Keep this manual for future reference.
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or other
flammable liquids or vapors in the vicinity
.
of this or any other appliance.
2. An LP cylinder not connected for use shall
NOT be stored in the vicinity of this or any
other appliance.
Never operate this appliance unattended.
If you smell gas -
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
FOR YOUR SAFETY:
For Outdoor Use Only
(outside any enclosure)
.
.
.
.
GBT1713W-C-OM-EF-F103
