Technical Information
Accessories for STIHL cut-off machines / drills
Contents

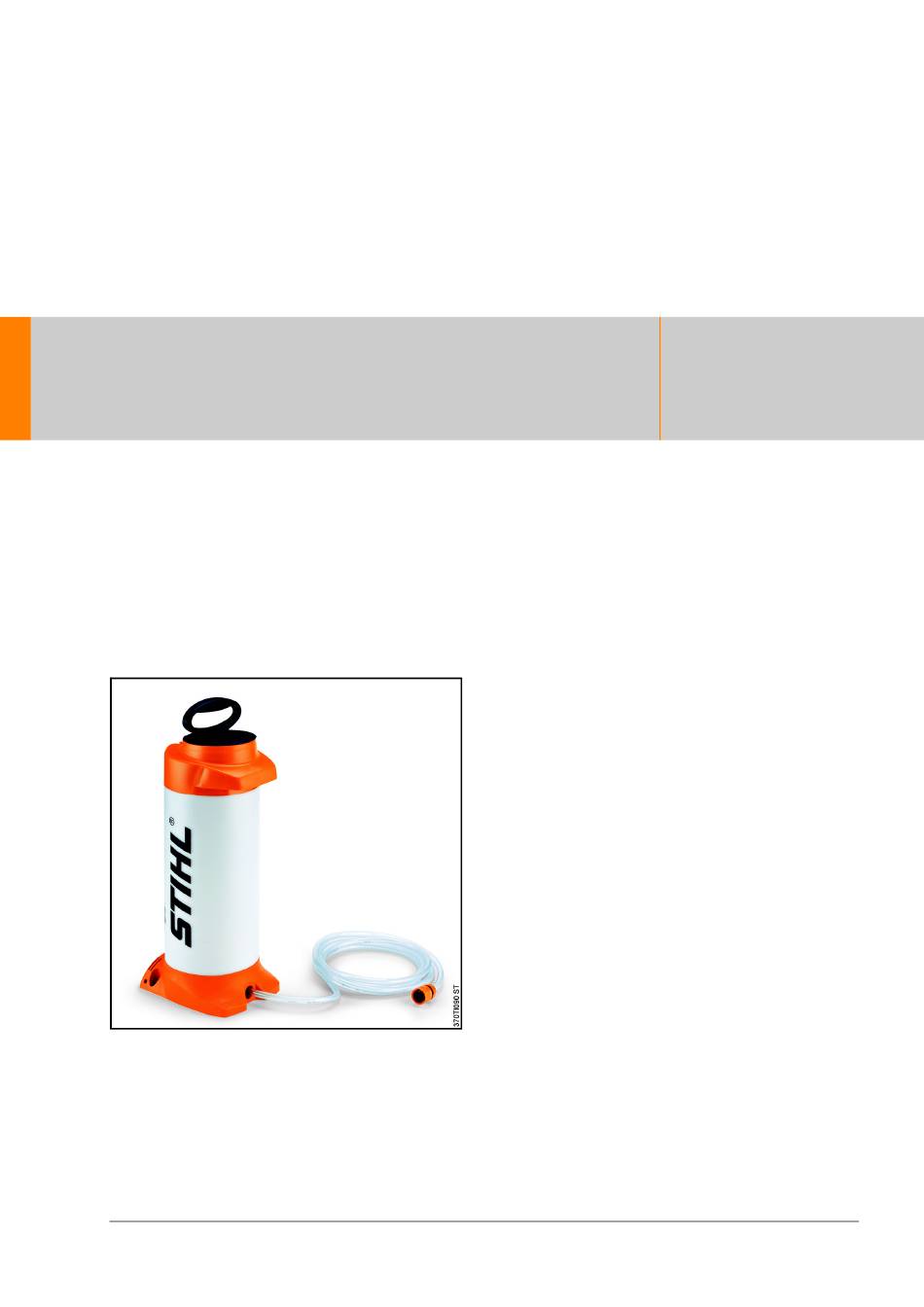

1. New pressurized water tank
1.
New pressurized water tank
TI_28_2010_30_01_01.fm
The previous pressurized water tank
4223 670 6001 is replaced by the new version
0000 670 6000.
Spare parts
The previous pressurized water tank
4223 670 6001 is no longer available.
All individual parts for the previous pressurized
water tank 4223 670 6001 remain available.
STIH)
28.2010
englisch / English
Advertisement
Table of Contents
Summary of Contents for Stihl 4223 670 6001
- Page 1 1. New pressurized water tank 2. Summary New pressurized water tank The previous pressurized water tank 4223 670 6001 is replaced by the new version 0000 670 6000. Spare parts The previous pressurized water tank 4223 670 6001 is no longer available.
- Page 2 Page 2 Technical Information 28.2010 Assembling the pressurized water tank Unlocking the pump handle Observe safety instructions when dealing with Turn the pump handle (1) approx. 1/4 turn to the the pressurized water tank, see Instruction left or right – until it is in the middle position Manual Insert hose (1) with screen (2) in the discharge opening (3) on the bottom of the pressurized...
- Page 3 Technical Information 28.2010 Page 3 Inspect the safety valve Unscrew the pump (2) from the pressurized water tank (3) by continuing to turn it Pressurize the tank – move the unlocked pump counterclockwise handle (4) of the empty pressurized water tank (1) up and down approx.
- Page 4 Page 4 Technical Information 28.2010 After use Disconnect the quick-action coupling from the cut-off machine or drill used Pull up the red knob of the safety valve until the pressurized water tank is depressurized Empty the pressurized water tank For drying and storage, keep the pressurized water tank in a dry, frost-free environment where it is shielded from the sun's rays If necessary, unscrew the hose and clean the...
- Page 5 Technical Information 28.2010 Page 5 Summary Left: previous pressurized water tank 4223 670 6001 Right: new pressurized water tank 0000 670 6000 Item Part Name Previous Rem. Pressurized water tank (complete): 4223 670 6001 - - - including Items 1, 2, 3, 4, 6, 7, 8, 9, 10, 11, 13, 17,...
- Page 6 Items 14, 15, 20 Modification to be introduced : continuously Remarks 1) Previous version is no longer available from factory 2) Previous version of part remains available for older versions © ANDREAS STIHL AG & Co. KG, 2010 Technical Documentation D1/MTK-fr TI_28_2010_30_01_01.fm...
