Specification :
Model No
Ozone Output
Input Voltage
Rated Power
Generating Method
Mechanical Part
Size
Weight
Performance curve:
Safety:
A.
This unit generates very high voltages. Do not
disconnected;

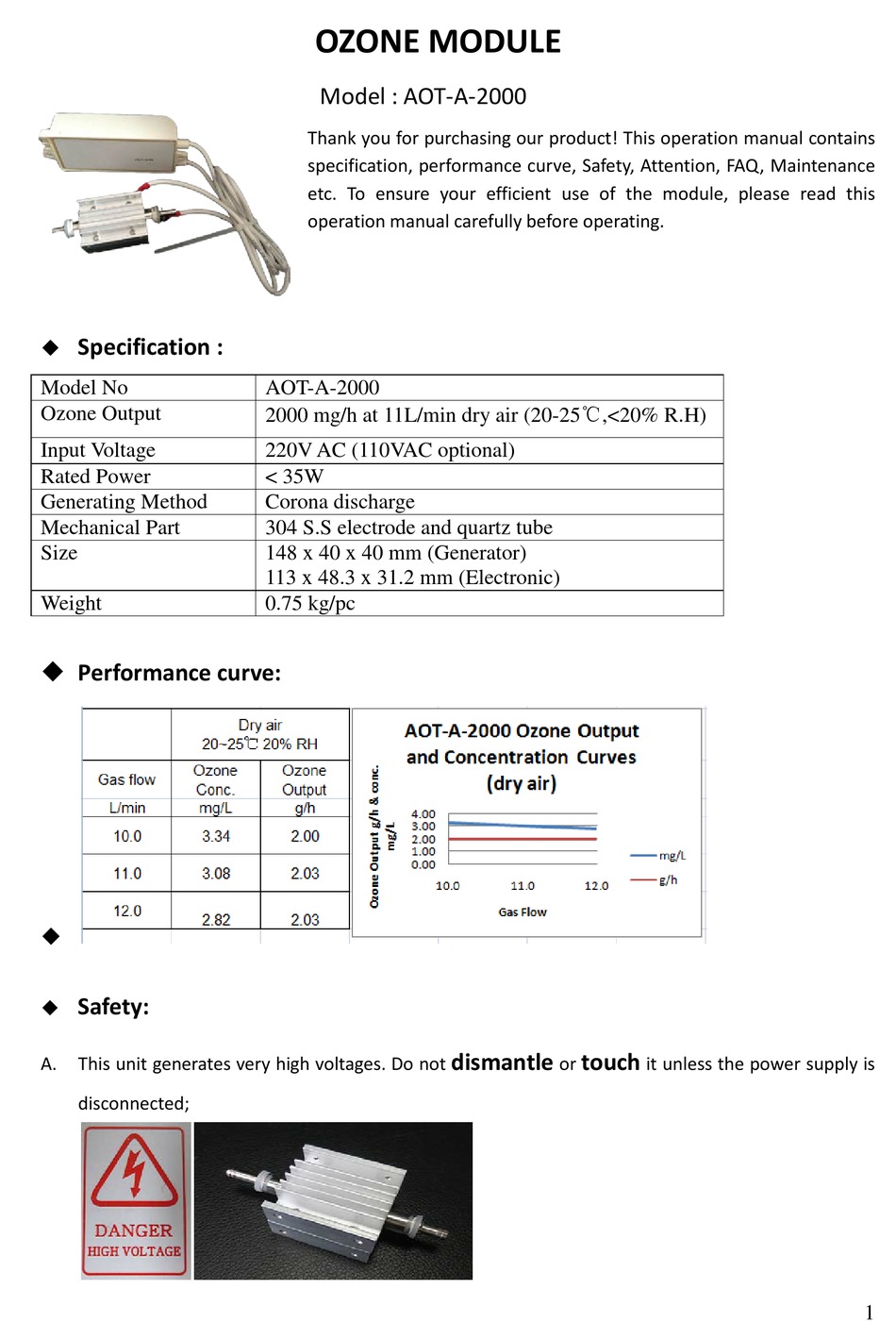

OZONE MODULE
Model : AOT-A-2000
Thank you for purchasing our product! This operation manual contains
specification, performance curve, Safety, Attention, FAQ, Maintenance
etc. To ensure your efficient use of the module, please read this
operation manual carefully before operating.
AOT-A-2000
2000 mg/h at 11L/min dry air (20-25℃,<20% R.H)
220V AC (110VAC optional)
< 35W
Corona discharge
304 S.S electrode and quartz tube
148 x 40 x 40 mm (Generator)
113 x 48.3 x 31.2 mm (Electronic)
0.75 kg/pc
dismantle
touch
or
it unless the power supply is
1
Advertisement
Table of Contents
Related Manuals for Aquapure AOT-A-2000
Summary of Contents for Aquapure AOT-A-2000
- Page 1 OZONE MODULE Model : AOT-A-2000 Thank you for purchasing our product! This operation manual contains specification, performance curve, Safety, Attention, FAQ, Maintenance etc. To ensure your efficient use of the module, please read this operation manual carefully before operating. Specification : ...
- Page 2 The Alumimun part and the central electrode of the generator are with high voltage which could isolate be 4KV. Do this part to metal or any surface that would possibly lead to a conductivity whil e installing or testing the unit; Any servicing or maintenance should only be carried out by approved and qualified personnel;...
- Page 3 5. Venturi system: for water treatment A more popular method for delivering ozone is through the use of venturi injectors. Venturi injectors work by forcing water through a conical body. This action creats a pressure differential between the inlet and outlet ports,which results in a vacuum inside the injector body. This vacuum causes rapid ozone suction through the suction part.Essentially, ozone gas is dissolved into the water.
