Lumi 108022 User Manual

Indoor monitor
Hide thumbs

Advertisement

Quick Links

Download this manual

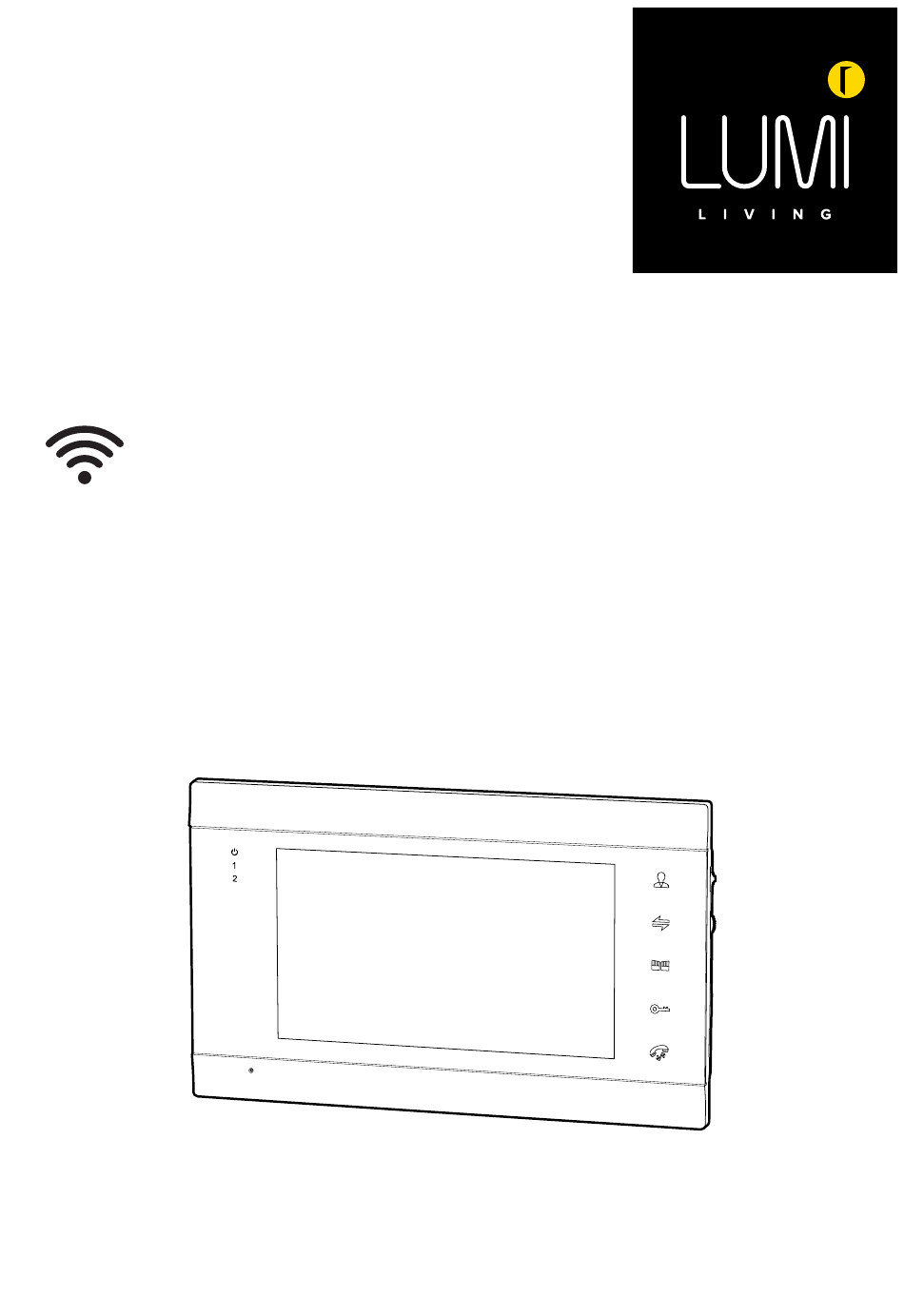

108022
S I GNAT U RE C O NN EC T
W I F I V I D E O I N T E R C O M S Y S T E M
I N D O O R M O N I T O R
U S E R M A N U A L

Advertisement

loading
Need help?

Need help?

Do you have a question about the 108022 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lumi 108022

Summary of Contents for Lumi 108022

  • Page 1 108022 S I GNAT U RE C O NN EC T W I F I V I D E O I N T E R C O M S Y S T E M I N D O O R M O N I T O R...
  • Page 2 C O N T E N T S IN DO O R M ONI TOR SPECI FI C ATIO N 2. SYST E M INFO 2.1 Installation Note 2.2 Wiring Diagram 3. O P E RAT IO N IN STR UCTI ON S 3.1 Button Instructions 3.2 Visitor Call 3.3 Call Transfer to Other Extensions...
  • Page 3 1. INDOOR MONITOR SPECIFICATION 1 . I N D O O R M O N I T O R S P E C I F I C AT I O N Tip: Below type A and B is two hot sales design, match icon function in the data sheet. NA M E D ESCR IPTION Power indicator...

  • Page 4: System Info

    2 . S Y S T E M I N F O 2. SYSTEM INFO 2 . 1 I N S TA L L AT I O N N O T E 2.1 INSTALLATION NOTE 2. SYSTEM INFO 1 Electrical locks / alarms / cameras are not included in the package. You can buy electrical locks that fit the actual requirements separately.
  • Page 5 2 . S Y S T E M I N F O C O N T. 2 . 2 W I R I N G D I A G R A M 2.2 Wiring Diagram...
  • Page 6 2 . S Y S T E M I N F O C O N T.

  • Page 7: Button Description

    3 . O P E R AT I O N I N S T R U C T I O N S 3 . 1 B U T T O N I N S T R U C T I O N S FU N C TIO N BU TTON D ES CR IPT ION Call Transfer/Internal Intercom/Color Contrast...
  • Page 8 3 . O P E R AT I O N I N S T R U C T I O N S 3 . 2 V I S I T O R C A L L STA N DBY M OD E The visitor presses The visitor presses the Call button on...
  • Page 9 3 . O P E R AT I O N I N S T R U C T I O N S 3 . 3 V I S I T O R C A L L A N D C A L L T R A N S F E R T O O T H E R E X T E N S I O N S 3.3.1 Call transfer to other extensions Internal communication function requires at least two Indoor Monitors and one Door Station to...
  • Page 10 3 . O P E R AT I O N I N S T R U C T I O N S 3 . 4 M O N I T O R I N G By default Door1, Door2, CAM1 and CAM2 can be monitored. To disable monitoring of Door2, set “Door2 Status”...
  • Page 11 3 . O P E R AT I O N I N S T R U C T I O N S 3 . 5 M O T I O N D E T E C T I O N Door station camera detects movement, auto start motion detection and image display on monitor.
  • Page 12 3 . O P E R AT I O N I N S T R U C T I O N S 3 . 6 S TA N D B Y M O D E Clock/date mode and digital photo frame mode option. 3.6.1 Clock/Date Mode Display day/month/year/week/hour/minute/second.
  • Page 13 3 . O P E R AT I O N I N S T R U C T I O N S 3 . 7 M A I N M E N U When in standby mode, touch screen to open the main menu. While in the main menu (see below) touch screen to navigate through the menu.
  • Page 14 3 . O P E R AT I O N I N S T R U C T I O N S 3.8.2 Time The Time settings adjusts the system date and time and what will be displayed in standby mode. The Clock Switch controls whether the clock is displayed in standby mode.
  • Page 15 3 . O P E R AT I O N I N S T R U C T I O N S 3.8.4 Ringtone This menu allows you to change the ringtone on the monitor with an installed microSD card containing suitable ringtone files.

  • Page 16: Network Setting

    3 . O P E R AT I O N I N S T R U C T I O N S [Button Voice] This turns on/off the confirmation sound when a button is pressed. [Ringback] Control door station ringtone on/off. 3.8.6 Network Setting Select “WiFi Set”...
  • Page 17 3 . O P E R AT I O N I N S T R U C T I O N S Press “Video Surveillance”------- “Smart Doorbell”. Enter the page. Press “Net Pairing Mode”-“AP Mode”----- “Next”. Enter the page. Input family WiFi name and password, press confirm and enter the page.
  • Page 18 3 . O P E R AT I O N I N S T R U C T I O N S Press connect and enter smart phone WiFi setting page. Find the hotspot name “SmartLife-xxxxxx”. When connection is successful, return back to Tuya Smart app. NOTE IOS system smart phone may remember other WiFi names and passwords.
  • Page 19 3 . O P E R AT I O N I N S T R U C T I O N S A P P G U I D E Hang up / Exit. Loudspeaker Viewer can hear sounds from door station. Snapshot During talking/monitoring mode, press the icon to snapshot image of screen.
  • Page 20 3 . O P E R AT I O N I N S T R U C T I O N S Modify device name and icon. Device information. Offline remind: device offline exceeds 30 second sensor trigger. Sharing device: support sharing device with other phone user (note: user app without unlock function). Memory setting: view memory setting only, insert MicroSD card in monitor, display MicroSD card capacity space.
  • Page 21 3 . O P E R AT I O N I N S T R U C T I O N S 3 . 9 D I G I TA L P H O T O F R A M E In Digital Photo Frame mode, the monitor cycles through the photos in the \USER\Photo directory on the MicroSD card.
  • Page 22 3 . O P E R AT I O N I N S T R U C T I O N S [Door2 Unlock Time] Sets Door2 unlock time. After the unlock duration, Door1 will be locked again. The unlock time can be set from 2 to 10 seconds. The default value is 2 seconds. [Record mode] Options for recording video or taking snapshots.
  • Page 23 3 . O P E R AT I O N I N S T R U C T I O N S I/O Sensor Type: NO “Normally Open”: when ALM and GND terminals is shorted, an alarm on the monitor will sound. NC “Normally Closed”: when ALM and GND terminals are disconnected, an alarm on the monitor will sound.
  • Page 24 3 . O P E R AT I O N I N S T R U C T I O N S [List Cycle] Repeat all songs in sequence. Restart playback from the first song after finishing the last song. [Random Play] Play all songs in random order without stopping.
  • Page 25 3 . O P E R AT I O N I N S T R U C T I O N S [DCIM] This DCIM folder is automatically created by the monitor for saving files created for the Record Centre. It contains the “Photo” and “Video” folders. The “Photo” folder saves the automatic snapshots and manually-captured photos.

  • Page 26: Video Recordings

    3 . O P E R AT I O N I N S T R U C T I O N S 3.13.1 Video Recordings In the Record Center menu, select “Video Info” and press setting icon to show list of recorded videos.
  • Page 27 3 . O P E R AT I O N I N S T R U C T I O N S NOTE The colour parameters can be changed on the screen while monitoring, calling or when in alarm. [Talking Volume]:] During talking mode with door station, you also can adjust talking volume. [Brightness] Values adjustable from 0 to 50.

  • Page 28: I N D O O R M O N I T O R I N S Ta L L At I O N

    5 . I N D O O R M O N I T O R I N S TA L L AT I O N NOTE • Please keep away from strong radiation equipment: TV, DVR, etc. • Please do not disassemble without permission to avoid electric shock.
  • Page 29 6 . S P E C I F I C AT I O N S A N D A C C E S S O R I E S 6.1 S PEC IF IC ATIO NS Product Type AHD 720P/960P/CVBS Video Input, CVI Video Input, TVI Video Input Screen 7"...
  • Page 30 6 . S P E C I F I C AT I O N S A N D A C C E S S O R I E S 6 . 2 A C C E S S O R I E S 20 10 11 Optional Indoor unit...
  • Page 31 Lumi Lighting Pty Ltd does not assume any liability whatsoever for the accuracy and completeness of the information. Lumi Lighting Pty Ltd makes no warranties which extend beyond the description contained herein. Any information given in this statement...
