Summary of Contents for DFX SOUND VersaLamp 485

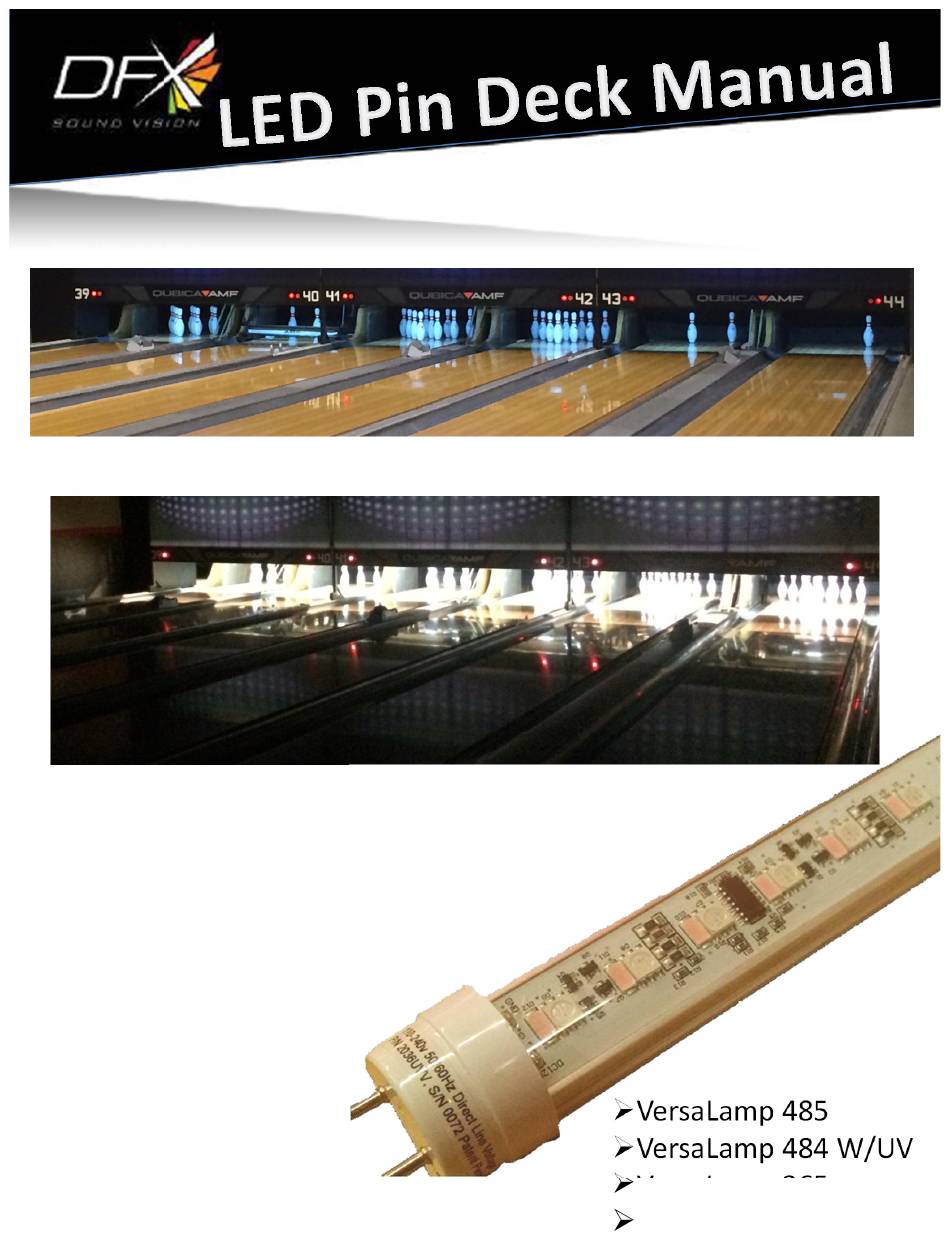

  • Page 1 VersaLamp 485 VersaLamp 484 W/UV VersaLamp 365 VersaLamp 364 W/UV...
  • Page 2 LED Pin Lighting System USER MANUAL © 2014-2015 DFX. Information subject to change without notice. DFX and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to use or reliance on the information contained in this manual.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Safety Information………………………………………………………………...4-6 Introduction………………………………………………………………………….7 Before Installing……………………………………………………………….……8 Physical Installation………………………………………………………….……9 Step #1 First Lane Installation…………………………………………….….10 Installation Of The System…………………………………………………….11-12 DMX Controller………………………………………………………………….….13-14 Figure F: Identify Existing Pin Deck Fixture……………………..…….15 Figure G: Ballast………………………………………………………………..…16 Figure H: Dual 4’ Lamp……………………………………………………..…..17 Figure I: Single 4’ Lamp………………………………………………………….18 Figure J: Dual 3’...
  • Page 6 Do not operate the system with missing or damaged equipment cables. • Do not lift or carry the LED light fixtures by their DMX cables. • In the event of an operating problem, stop using the fixture/system immediately and • disconnect it from power.

  • Page 7: Introduction

    Each LED Light Tube has a test pattern that is displayed when the DMX Controller is not connected or powered on. Here is a list of the test patterns for each LED Light Tube: VersaLamp 485 – All white LEDs on. VersaLamp 484W- All white LEDs on. VesaLamp 484UV – All ultra-violet LEDs on.
  • Page 8 Before using the product for the first time Read “Safety information” before installing, operating or servicing the fixture. Read at a minimum the “First Lane Installation” instructions before installing. Unpack and ensure that there is no transportation damage before using the fixture. Never attempt to operate a damaged fixture.

  • Page 9: Before Installing

    Physical installation Warning! Read “Safety information” before installing the system. • The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. • Do not stand LED Light Tubes on a surface or leave it where it can be moved or fall over.

  • Page 10: Step #1 First Lane Installation

    Press playback button #4 for VersaLamp 485 & 365 systems and play back button # 3 for VersaLamp 484 & 364 systems on the DMX controller. This will play a fast color change on the LED light tube.

  • Page 11: Installation Of The System

    Disconnect the controller from the light tube and remove all cables used to test the first light tube. If your installation is more than ten lanes for VersaLamp 485 & 365 systems a DMX Opto Isolator is to be installed. If your installation is more than twelve lanes for VersaLamp 484 &...
  • Page 12 12. Connect the DMX cables from the first light tube to the second light tube using the 15’ DMX cable and connect to the male XLR connector of the next Light Tube. Be sure all cables are secure and away from all moving parts of the pinsetter/pinspotter. 13.

  • Page 13: Dmx Controller

    Figure E DMX Controller DO NOT USE THE INTENSITY & SPEED BUTTONS!!!! THESE WILL CAUSE THE LED LAMPS TO BE OVER DRIVEN AND DECREASE LAMP LIFE!!!!!!!!!
  • Page 14 DMX Controller Figure E.1...
  • Page 15 Figure F: Identify existing pin deck fixture 4 Types: a) Dual lamp 4’ 4’ Fig F.1 b) Single lamp 4’ 4’ Fig F.2 c) Dual lamp 3’ 3’ Fig F.3 3’ d) Single lamp 3’ Fig F.4 NOTE: MACHINE POWER WARNING: DAMAGE/VOID WARRANTY DO SHUTDOWN DURING ENTIRE NOT PLUG INTO EXISTING FIXTURE WITH...
  • Page 16 Figure G Ballast Example...
  • Page 17 Figure H: Wiring Dual 4’ Lamp Rewiring existing fixture to accommodate LED tube fixture. 1. LED tube fixture is to replace the UV/Blacklight tube not existing fluorescent white tube 2. Ballast must be bypassed allowing 110-240AC to the existing fixture ends (tombstones) (see illustration W.5) NOTE: MACHINE POWER WARNING: DAMAGE/VOID WARRANTY DO SHUTDOWN DURING ENTIRE...
  • Page 18 Figure I: Wiring Single 4' Lamp Rewiring existing fixture to accommodate LED tube fixture. 1. LED tube fixture is to replace the existing fluorescent white tube 2. Ballast must be bypassed allowing 110-240AC to the existing fixture ends (tombstones) (see illustration W.5)
  • Page 19 Figure J: Wiring Dual 3' Lamp Rewiring existing fixture to accommodate LED tube fixture. 1. LED tube fixture is to replace the UV/Blacklight tube not existing fluorescent white tube 2. Ballast must be bypassed allowing 110-240AC to the existing fixture ends (tombstones) (see illustration W.5)
  • Page 20 Figure K: Wiring Single 3' Lamp Rewiring existing fixture to accommodate LED tube fixture. 1. LED tube fixture is to replace the existing fluorescent white tube. 2. Ballast must be bypassed allowing 110-240AC to the existing lamp sockets (tombstones) (see illustration W.5).
  • Page 21 Figure W.1 & W.2 Single LED Light Tube Wiring Fig W.1 Fig W.2...
  • Page 22 Figure W.3 & W.4 Single Lamp Wiring Example Fig W.3 Fig W.4...
  • Page 23 Figure W.5 LED Tube, Fixture with Ballast 1-BALLAST 2 -EXISTING FIX 3-END CAP 4-FLUORESCENT LED 5-PINS 6-TOMBSTONE Fig W.5...
  • Page 24 Figure W.6 Dual Pin Deck Wiring Example...
  • Page 26 Figure L DMX Opto Isolator...
  • Page 27 Figure M Drill Template for Adjusting Spring Loaded Lamp Sockets For Zot 3’ dual fixtures...

  • Page 28: Dmx Addresser

    DMX Addresser The DMX Addresser is used to input the DMX address into the VersaLamp LED Light Tubes. The LED Light Tubes are shipped with the addresses already loaded into the Light Tube. The address for each tube is located on the end cap (for example ADDR 051). Address the LED Light Tubes if it needs to be set to fit an existing program or to duplicate another fixture or LED Lamp.
  • Page 29 9. Then enter the three digit DMX for the VersaLamp LED Light Tube. Please refer to the DMX Address Table. Three digits must be input for example: 051. 10. When the last digit is input the curser will be flashing at the first digit. 11.
  • Page 30 Plug in the RJ45 connector into the DMX Addresser. Plug the addresser into a suitable electrical outlet (120v 60Hz). Connect the female 3-Pin XLR connector to the addresser to the male 3-Pin XLR connector of the light tube. Turn on the DMX Addresser. Looking at the display of the Addresser: It should display the welcome screen.
  • Page 31 DMX Address Table For VersaLamp 485 Light Tubes (48” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 1-10 Lanes 12 Lanes 14 Lanes 16 Lanes Lane Lane Lane Lane Number Address Number...
  • Page 32 DMX Address Table For VersaLamp 485 Light Tubes (48” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 24 Lanes 20 Lanes 22 Lanes 18 Lanes Lane Lane Lane Lane Number Address Number...
  • Page 33 DMX Address Table For VersaLamp 485 Light Tubes (48” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 26 Lanes 28 Lanes 30 Lanes Lane Lane Lane Number Address Number Address Number Address...
  • Page 34 DMX Address Table For VersaLamp 485 Light Tubes (48” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 32 Lanes 32 Lanes 34 Lanes 34 Lanes Lane Lane Lane Lane Number Address Number...
  • Page 35 DMX Address Table For VersaLamp 485 Light Tubes (48” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 36 Lanes 36 Lanes 38 Lanes 38 Lanes Lane Lane Lane Lane Number Address Number...
  • Page 36 DMX Address Table For VersaLamp 485 Light Tubes (48” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 40 Lanes 40 Lanes 42 Lanes 42 Lanes Lane Lane Lane Lane Number Address Number...
  • Page 37 DMX Address Table For VersaLamp 485 Light Tubes (48” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 44 Lanes 44 Lanes 46 Lanes 46 Lanes Lane Lane Lane Lane Number Address Number...
  • Page 38 DMX Address Table For VersaLamp 485 Light Tubes (48” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 48 Lanes 48 Lanes 50 Lanes 50 Lanes Lane Lane Lane Lane Number Address Number...
  • Page 39 DMX Address Table For VersaLamp 485 Light Tubes (48” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 52 Lanes 52 Lanes 54 Lanes 54 Lanes Lane Lane Lane Lane Number Address Number...
  • Page 40 DMX Address Table For VersaLamp 485 Light Tubes (48” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 56 Lanes 56 Lanes 58 Lanes 58 Lanes Lane Lane Lane Lane Number Address Number...
  • Page 41 DMX Address Table For VersaLamp 485 Light Tubes (48” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 60 Lanes 60 Lanes Lane Lane Number Address Number Address...
  • Page 42 DMX Address Table For VersaLamp 365 Light Tubes (36” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 1-12 Lanes 14 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 43 DMX Address Table For VersaLamp 365 Light Tubes (36” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 16 Lanes 18 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 44 DMX Address Table For VersaLamp 365 Light Tubes (36” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 20 Lanes 22 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 45 DMX Address Table For VersaLamp 365 Light Tubes (36” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 24 Lanes 26 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 46 DMX Address Table For VersaLamp 365 Light Tubes (36” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 28 Lanes 30 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 47 DMX Address Table For VersaLamp 365 Light Tubes (36” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 32 Lanes 34 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 48 DMX Address Table For VersaLamp 365 Light Tubes (36” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 36 Lanes 38 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 49 DMX Address Table For VersaLamp 365 Light Tubes (36” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 40 Lanes 42 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 50 DMX Address Table For VersaLamp 365 Light Tubes (36” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 44 Lanes 46 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 51 DMX Address Table For VersaLamp 365 Light Tubes (36” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 48 Lanes 50 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 52 DMX Address Table For VersaLamp 365 Light Tubes (36” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 52 Lanes 54 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...

  • Page 53: Dmx Address Tables

    DMX Address Table For VersaLamp 365 Light Tubes (36” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 58 Lanes 56 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 54 DMX Address Table For VersaLamp 365 Light Tubes (36” length with five color LEDs-red, green, blue, white & ultra-violet) With One DMX Controller or Universe 60 Lanes Lane Lane Number Address Number Address...
  • Page 55 DMX Address Table For VersaLamp 484W/UV Light Tubes (48” length with four color LEDs-red, green, blue, white or ultra-violet) With One DMX Controller or Universe 1-12 Lanes 14 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 56 DMX Address Table For VersaLamp 484W/UV Light Tubes (48” length with four color LEDs-red, green, blue, white or ultra-violet) With One DMX Controller or Universe 16 Lanes 18 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 57 DMX Address Table For VersaLamp 484W/UV Light Tubes (48” length with four color LEDs-red, green, blue, white or ultra-violet) With One DMX Controller or Universe 20 Lanes 22 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 58 DMX Address Table For VersaLamp 484W/UV Light Tubes (48” length with four color LEDs-red, green, blue, white or ultra-violet) With One DMX Controller or Universe 24 Lanes 26 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 59 DMX Address Table For VersaLamp 484W/UV Light Tubes (48” length with four color LEDs-red, green, blue, white or ultra-violet) With One DMX Controller or Universe 28 Lanes 30 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 60 DMX Address Table For VersaLamp 484W/UV Light Tubes (48” length with four color LEDs-red, green, blue, white or ultra-violet) With One DMX Controller or Universe 32 Lanes 34 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 61 DMX Address Table For VersaLamp 484W/UV Light Tubes (48” length with four color LEDs-red, green, blue, white or ultra-violet) With One DMX Controller or Universe 36 Lanes 38 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 62 DMX Address Table For VersaLamp 484W/UV Light Tubes (48” length with four color LEDs-red, green, blue, white or ultra-violet) With One DMX Controller or Universe 40 Lanes 42 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 63 DMX Address Table For VersaLamp 484W/UV Light Tubes (48” length with four color LEDs-red, green, blue, white or ultra-violet) With One DMX Controller or Universe 44 Lanes 46 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 64 DMX Address Table For VersaLamp 484W/UV Light Tubes (48” length with four color LEDs-red, green, blue, white or ultra-violet) With One DMX Controller or Universe 48 Lanes 50 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 65 DMX Address Table For VersaLamp 484W/UV Light Tubes (48” length with four color LEDs-red, green, blue, white or ultra-violet) With One DMX Controller or Universe 52 Lanes 54 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 66 DMX Address Table For VersaLamp 484W/UV Light Tubes (48” length with four color LEDs-red, green, blue, white or ultra-violet) With One DMX Controller or Universe 58 Lanes 56 Lanes Lane Lane Lane Lane Number Address Number Address Number Address Number Address...
  • Page 67 DMX Address Table For VersaLamp 484W/UV Light Tubes (48” length with four color LEDs-red, green, blue, white or ultra-violet) With One DMX Controller or Universe 60 Lanes Lane Lane Number Address Number Address...

  • Page 68: Troubleshooting

    Troubleshooting This section describes a few common problems that may occur during operation and provides some suggestions for easy troubleshooting: Symptom Potential Cause Remedies Power supply issue. Pinsetter is not sending power to the No light output. correct light tube. LED Light Tube not connected properly.
  • Page 69 One or multiple LED light tubes not Control issue. Check to be sure the right DMX working when other light tubes connector is used. Check the light tube before the work correctly at the same time. Unit(s) having the issue. It should be used with the cable with the dual connectors.

  • Page 70: Programmed Light Shows

    6. Rainbow 7. Color Half Wave 8. Rainbow 2 9. Color Wagons 10. Various Effects VersaLamp 485 LED Light Tube Key Pad Programmed Light Shows 1. All White Only 2. All Ultra-Violet Only 3. Slow Color Change 4. Fast Color Change 5.
  • Page 71 VersaLamp 364W LED Light Tube Key Pad Programmed Light Shows 1. All White Only 2. Slow Color Change 3. Fast Color Change 4. Color Wave 5. Rainbow 6. Color Half Wave 7. Rainbow 2 8. Color Wagons 9. Various Effects 10.
  • Page 72 VersaLamp 364UV LED Light Tube Key Pad Programmed Light Shows 1. All Ultra Violet Only 2. Slow Color Change 3. Fast Color Change 4. Color Wave 5. Rainbow 6. Color Half Wave 7. Rainbow 2 8. Color Wagons 9. Various Effects 10.
