Protein Skimmer User Manual (compiled by Sea Side Aquatics)

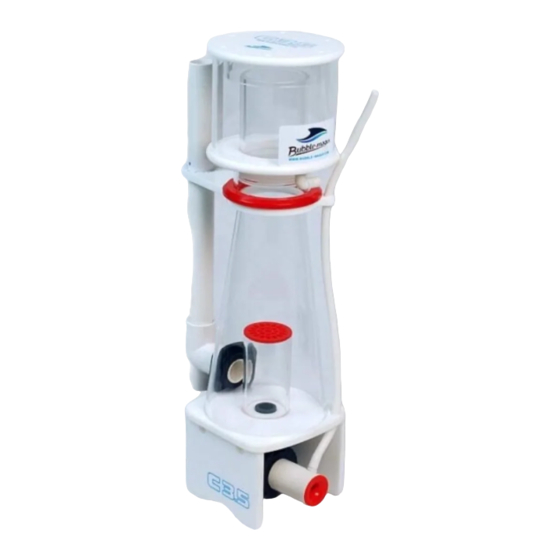

Product's Name: Internal Protein Skimmer C3.5
Valid Aquarium: 80 gal
Pump model: ROCK SP1000
The Bubble Magus C3.5 is the successor of NAC3.5. The newer C3.5 offers the
ROCKSP1000, replacing the NAC3.5's ATMAN PH1100. Please read the manual carefully
before use. If you encounter an issue, whether it is in the packaging, during your installation, or
during normal operation of your product, contact
support. Be sure to register your product to activate your warranty.
Packaging Overview: collection cup, skimmer body, base support, water draining system,
venturi with tubing, water pump, and user manual.
Parts List:
1. Lid
2. Collection Cup
3. Drain Tube/Outlet
4. Skimmer Body
5. Riser Bracket
6. Base Plates (2)
7. Nylon Screw (4)
8. Water Output Adjustment Tube
9. T Connector
** Note: parts may come preassembled.
Installation:
1. Connect the venturi to the water pump (sometimes this unit is already preassembled).
2. Connect the water pump outlet to the skimmer body.
3. Connect the air intake tube to the venturi.
4. Connect the collection cup to the skimmer body. Make sure that the cup outlet (at the
bottom) has a rubber oring before inserting it into the neck of the skimmer body.
5. Connect the drain tube to cup's outlet.
s upport@seasideaquatics.com
10. Water Tube Gasket
11. Water Pump
12. Pump Outlet
13. Venturi (air intake)
14. Air Intake Tube
15. ORing: Cup Outlet
16. ORing: Pump Outlet
17. ORing: Water Output Tube
for further
Advertisement
Table of Contents
Related Manuals for Bubble Magus C3.5
Summary of Contents for Bubble Magus C3.5
- Page 1 Protein Skimmer User Manual (compiled by Sea Side Aquatics) Product’s Name: Internal Protein Skimmer C3.5 Valid Aquarium: 80 gal Pump model: ROCK SP1000 The Bubble Magus C3.5 is the successor of NAC3.5. The newer C3.5 offers the ROCKSP1000, replacing the NAC3.5’s ATMAN PH1100. Please read the manual carefully before use. If you encounter an issue, whether it is in the packaging, during your installation, or during normal operation of your product, contact s upport@seasideaquatics.com for further support. Be sure to register your product to activate your warranty. Packaging Overview: collection cup, skimmer body, base support, water draining system, venturi with tubing, water pump, and user manual. Parts List: 1. Lid 10. Water Tube Gasket 2. Collection Cup 11. Water Pump 3. Drain Tube/Outlet 12. Pump Outlet 4. Skimmer Body 13. Venturi (air intake) 5. Riser Bracket ...
- Page 2 6. After complete assembly, the unit is ready for use. a. Submerge the unit with water b. Connect power cord to an electric socket (GFI certified outlet). c. Make your adjustments using the adjustment tube. Maintenance: 1. Service the collection cup and the neck regularly. 2. Disassemble and clean the venturi and pump every 3 to 6 months. a. Disassemble, inspect, and clean the impeller to maximize life and performance. 3. A complete skimmer cleaning is recommended every 6 to 12 months. 4. Avoid using harsh cleaning chemicals and soaps. A 50/50 vinegar bath is recommended. Further Comments: 1. Do not run the pump dry. Make sure that it is submerged already before operation. 2. After successful installation, bubbles will appear when the pump is active. Otherwise, restart the system. If the problem persist then contact Sea Side Aquatics for support. 3. New skimmers may require a breakin period of a few days or more. 4. Suggested external water level is 2025 cm. 5. Each unit has been pretested at the factory to ensure that the unit is in working order. Some traces of water is normal; the unit and all of its components are new. ...
- Page 3 ...
