Weaver Leather MASTER TOOL 65-3075 Quick Start Manual

MASTER TOOL MIGHTY WONDER
4-TON HAND-OPERATED CLICKER
Congratulations on the purchase of your new clicker. Made by
Weaver Leather, this clicker features a swivel-away clicker head
that allows you to see where you're setting the die and offers
easier clicking. This convenient hand-operated clicker features
a 29" handle that gives you extra leverage. A height adjustment
nut makes it simple to adjust the machine for using 1-1/4" dies.
With a large 3" cam for increased leverage, this clicker is
perfect for using up scrap leather for key fobs, coasters,
spur straps and other small leather goods.
For your convenience, only minimal assembly is required.
The Hand-Operated Clicker features holes and mounting
hardware for easy attachment to your solid wood workbench.
Do not operate this machine until you have read this
instruction sheet in its entirety and the machine is
securely bolted in place to a solid wood workbench.
This machine is designed for clicking leather. Use for
any other purpose is prohibited and voids the warranty.

ASSEMBLING THE HAND-OPERATED CLICKER

1) Attach Base (A) to solid wood workbench using the
included mounting hardware. A good workbench
height for clicking is 28".
2) Attach handle by inserting into hole in Cam (D) and
tightening Allen Screw (E).
E
800-932-8371
weaverleathersupply.com
C
F
A
Limited Lifetime Guarantee
HANDCRAFTED IN THE USA

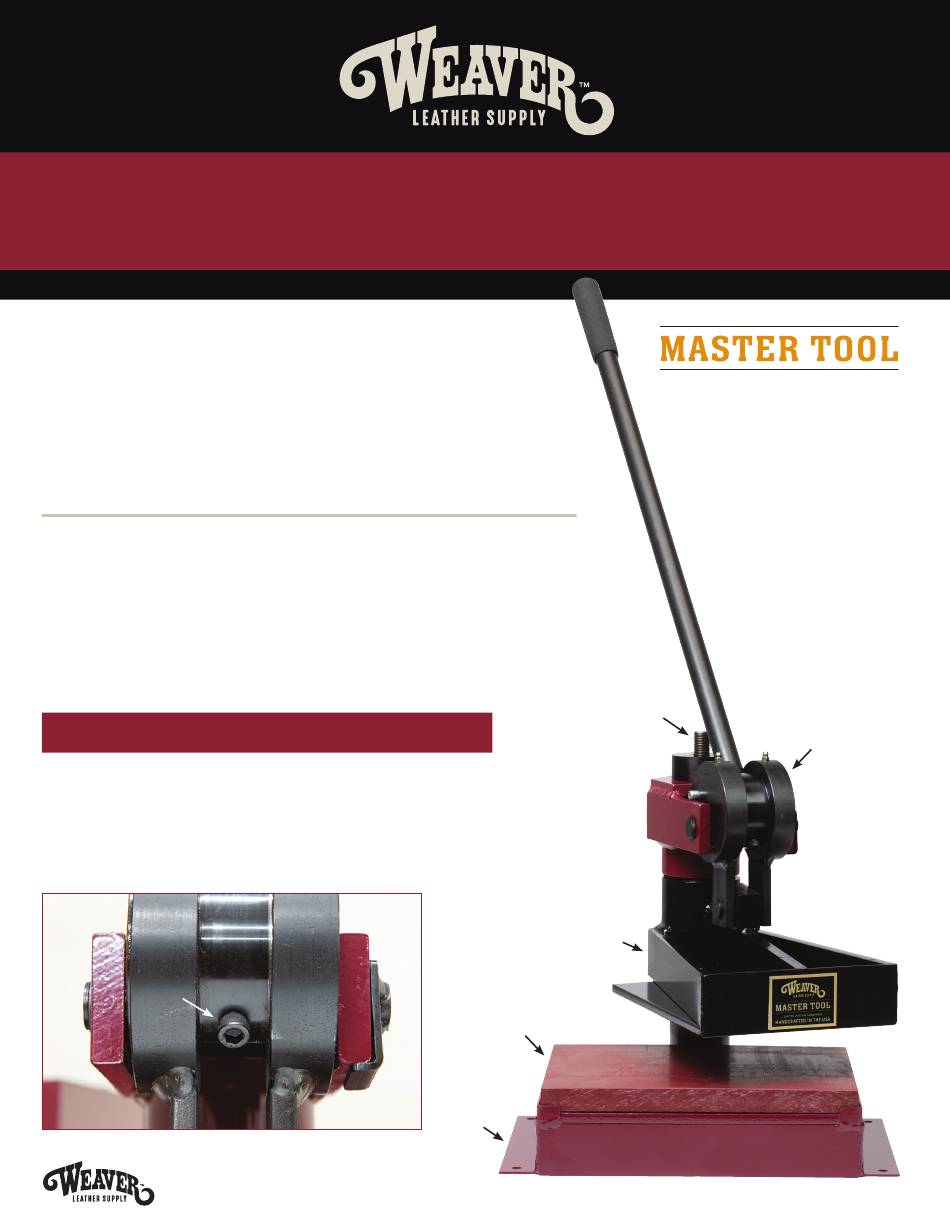

A - Base
B - Height Adjustment Nut
C - Clicker Head
D - Cam
E - Allen Screw for Handle
(pictured in inset on left)
F - Clicker Board
B
D
INSERT-134 4/21
