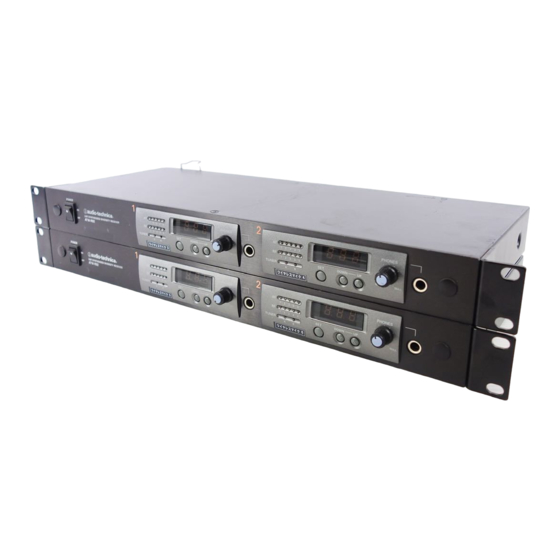

ATW-R92 UHF Synthesized Diversity Dual Receiver
Installation and Operation

Advertisement

Table of Contents
loading

Related Manuals for Audio Technica ATW-R92

Summary of Contents for Audio Technica ATW-R92

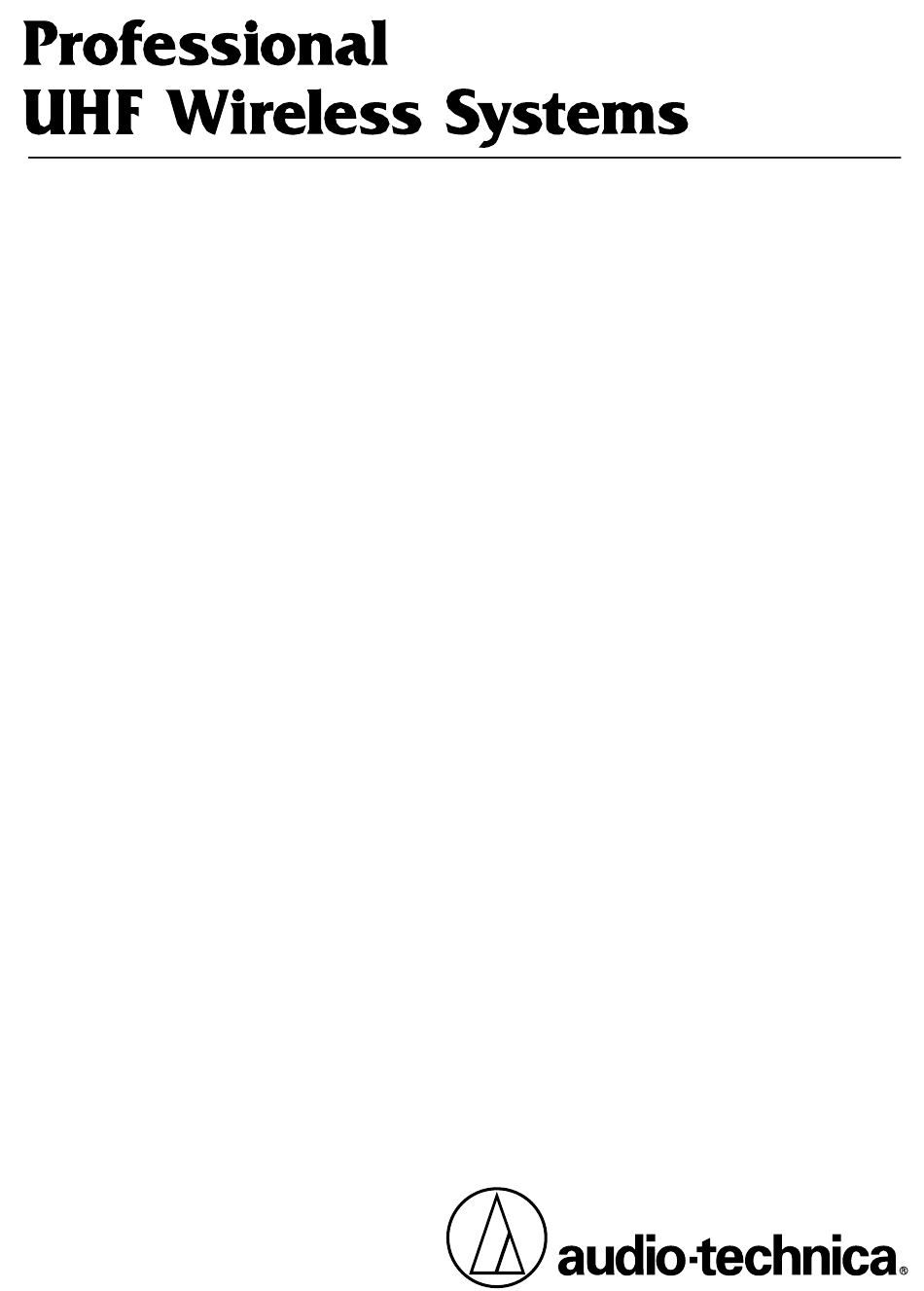

  • Page 1 ATW-R92 UHF Synthesized Diversity Dual Receiver Installation and Operation...

  • Page 2: Receiver Installation

    With the addition of two more ATW-R92 dual receiver units, up to six receiver Warning: This apparatus must be grounded. channels can be operated from a single pair of antennas.
  • Page 3 The two pairs of antenna inputs might be used when Output Connections coverage of a split banquet/meeting room is difficult with a There are two audio output jacks on the back for each of single pair of antennas, or in the case of multipath-prone the receivers: balanced (4 mV) and unbalanced (40 mV).

  • Page 4: Receiver Controls And Functions

    "daisy-chaining." (Using two additional to secure the plug in the chassis connector. ATW-R92 dual receiver units provides a total of six 19 GROUND TERMINAL: Case grounding screw , if channels in three rack spaces with a single pair of needed.

  • Page 5: System Operation

    LEDs light up at this point, there may be RF interference in the area. If this occurs, select another frequency using the front- The audio output level of the ATW-R92 has been optimized panel channel selectors. While holding in the "Set" button, for best performance and no adjustment is necessary.

  • Page 6: Specifications

    Mounts in a single (1U) 19" rack space. Operating Range 90m typical Operating Temperature Range 5 C degree to 45 C degree Frequency Response 100 Hz to 15 kHz ATW-R92 RECEIVER Receiving System Dual independent tuners, automatic switching diversity Image Rejection >100 dB Signal-to-noise Ratio >107 dB (IEC-weighted at ±40 kHz...
  • Page 7 Audio-Technica UHF Wireless Operating Frequencies Frequency and Channel Designator List Designator Frequency (MHz) Designator Frequency (MHz) 800.550 810.075 800.575 810.200 800.600 810.325 801.100 810.550 801.125 810.575 801.150 811.075 801.200 811.100 801.450 811.550 801.925 811.575 801.950 811.600 801.975 811.700 802.075 812.775 802.200 812.800 802.225...
  • Page 8 Notice to individuals with implanted car diac pacemakers or AICD devices: Any source of RF (radio frequency) energy may interfere with normal functioning of the implanted device. All wire- less microphones have low-power transmitters (less than 0.05 watts output) which are unlikely to cause difficulty , especially if they are at least a few inches away.
