- Page 1 Technical Guide KIOSK PRINTER SK1-211 SK1-311 Rev1.1E SK1-211/311...
- Page 2 * Data are basically temporary; they cannot be stored or saved either for a long time or permanently. Please note that Sanei Electric shall not be responsible for any damages or lost profits resulting from the loss of data attributable to accidents, repairs, tests, and so on.
- Page 3 SK1-211/311...
- Page 4 SK1-211/311...
- Page 5 SK1-211/311...
-
Page 6: Table Of Contents
SK1-211/311... - Page 7 SK1-211/311...
-
Page 8: 1．General Outlines

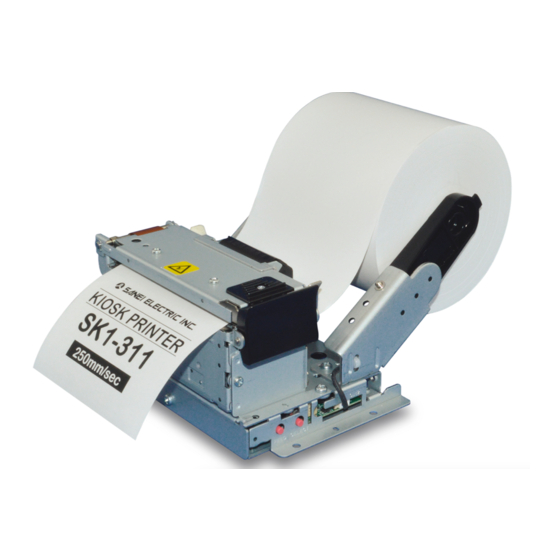

General Outlines 1- 1．Product Outlines SK1-211(2-inch) & SK1-311(3-inch) are open frame printers equipped with Serial (RS232C) and USB interface. Super-compact design and ruburst body make it possible for installing limited space enclosures under wide range of operating environment. The reliable SK1 printers performimg for versatile functions are ideal for a wide variety of kiosk systems. -
Page 9: Classification
SK1-211/311... - Page 10 F ： ASCII Interface S ： Serial ＋USB Series SK1-201：2-inch model without holder SK1-211：2-inch standard model SK1-221：2-inch bucket type SK1-V211：2-inch vertical type １０ ...
-
Page 11: 2．Handling Method
A red stripe on one side of the paper End mark Width: 2 to 5mm Length: 500±100mm 2. Printer options It is available for the following options for SK1-211/311 Kiosk printers. Option contents Name Specifications Large paper holder HL2-SK1 Arm holder for φ200mm diameter ... -
Page 12: Appearance
SK1-211/311... -
Page 13: Inside Structures
SK1-211/311... -
Page 14: Setting Paper Roll
SK1-211/311... -
Page 15: Paper Near-End Sensor
SK1-211/311... -
Page 16: Changing 1-Inch Core Adapter
SK1-211/311... -
Page 17: Clear Paper Jams
SK1-211/311... -
Page 18: 3．General Specifications
3．General specifications 3- 1．Specifications Model SK1-311 SF SK1-211 SF Printing method Direct line thermal Printing speed Max.250 mm/s *Note 1 Resolution 8dot/mm(203dpi) Dimensions Max.φ120mm Without presenter model: 59 to 150um (52g/m to 128g/m Thickness With presenter model: 59 to 100um (52g/m... - Page 19 Model SK1-311 SF SK1-211 SF Temperature： -20℃ to +60℃ Humidity： 20%RH to 85%RH（No condensation） Operating environment Printing quality is guaranteed from +5℃ to +40℃ Guaranteed area of acceptable temperature and humidity Temperature： -30℃ to +70℃ Storage environment Humidity： 10%RH to 90%RH（No condensation）...
-
Page 20: Sensor
SK1-211/311... -
Page 21: Printing Area
・The position of partial cut is varied by paper width. ・Partial cut is designed to keep the paper at the center of 80mm(SK1-311) or 58mm(SK1-211) paper. ２１ ... -
Page 22: Paper Sensor Position
SK1-211/311... - Page 23 ■SK1-211 Pepar Feed Left position of BM sensor Right position of BM sensor Label Gap sensor. Paper edge Thermal dot line Approx.13.5mm Gap sensor Reflection Sensor（Right） Reflection sensor（Left） Sensor Distance from paper edge （±1.0mm） Reflection sensor（Left）...
-
Page 24: Paper Feeding
SK1-211/311... -
Page 25: Dimensions
SK1-211/311... - Page 26 SK1-211/311...
- Page 27 ② SK1-211 model ２７ ...
- Page 28 SK1-211/311...
-
Page 29: 4．Functions
SK1-211/311... -
Page 30: Hex Dump Mode
SK1-211/311... - Page 31 SK1-211/311...
-
Page 32: Setting The Memory Switch
SK1-211/311... -
Page 33: Memory Switch Setting Menue
SK1-211/311... - Page 34 SK1-211/311...
-
Page 35: Adjusting Printing Density
SK1-211/311... - Page 36 SK1-211/311...
-
Page 37: Memory
SK1-211/311... -
Page 38: 5．Bezel Module
SK1-211/311... -
Page 39: 6．Presenter
SK1-211/311... -
Page 40: Stock Space And Exit Space
SK1-211/311... -
Page 41: 7．Interfaces
SK1-211/311... -
Page 42: Serial
SK1-211/311... - Page 43 SK1-211/311...
-
Page 44: Power Supply
SK1-211/311... -
Page 45: 8．Label Print
SK1-211/311... - Page 46 SK1-211/311...
- Page 47 SK1-211/311...
- Page 48 SK1-211/311...
-
Page 49: 9．Maintenance
SK1-211/311... -
Page 50: Service For Trouble Shooting
For maintenance and service, please contact your Sanei local distributors or the following address. Sanei Electric Inc. Overseas sales division 2-61-1 Ikebukuro, Toshima-Ku, Tokyo 171-0014, Japan TEL: 81-3-3986-1188 ... -
Page 51: 10．Command Systems
SK1-211/311... - Page 52 SK1-211/311...
- Page 53 SK1-211/311...
-
Page 54: Data Code Table
SK1-211/311... - Page 55 SK1-211/311...
- Page 56 SK1-211/311...
