SunBriteTV SB-POLE-A-S-BL Quick Start Manual

PRODUCT INFORMATION

PACKAGE CONTENTS

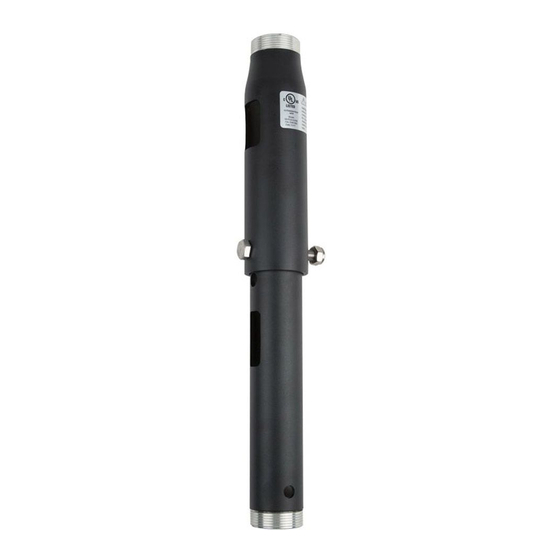

• Inner/outer pole assembly (1)
• Lock Bolt

IMPORTANT WARNINGS

CAUTION: This accessory is intended for use only
with a maximum load weight of 91 kg (200 lb). Use
with heavier than the maximum weight indicated
may result in instability causing possible injury.
Refer to user instructions.
• This accessory is for use with SunBriteTV ceiling
mounts and accessories with 1 ½" - 11.5 NPT threads.
• Read and thoroughly understand these instructions before
attempting installation. If you are unsure of any part of
the installation process, contact a professional installer for
assistance.
• The ceiling or mounting surface must be capable of
supporting four times the combined weight of the mount
and display; otherwise the structure must be reinforced.
• Safety gear and proper tools must be used. Failure to do so
can result in property damage and/or serious injury.
• Follow all instructions and recommendations regarding
adequate ventilation and suitable locations for mounting
your display. Consult the owner's manual of your display for
more information.
• TV display should be removed from mount in situations of
high wind exceeding 97 kph (60 mph).
• All assembly fasteners and mounting plate attachment
to ceiling should be inspected for signs of loosening or
damage after any strong wind event and at least once
annually. If any fasteners have loosened, retighten. If any
damage is observed, remove mount from service.

WARRANTY AND LEGAL INFORMATION

Find details of the product's Limited Warranty at snapav.com/warranty or request a paper copy from Customer Service
at 866.424.4489. Find other legal resources, such as regulatory notices and patent information, at snapav.com/legal.
Contact Technical Support at 866.838.5052.
Copyright ©2021 Wirepath Home Systems, LLC. All rights reserved. Control4 and SnapAV and their respective logos
are registered trademarks or trademarks of Wirepath Home Systems, LLC, dba "Control4" and/or dba "SnapAV" in
the United States and/or other countries. SunBriteDS and SunBriteTV are also registered trademarks or trademarks of
Wirepath Home Systems, LLC. Other names and brands may be claimed as the property of their respective owners.
SnapAV makes no claim that the information contained herein covers all installation scenarios and contingencies, or
product use risks. Information within this specification subject to change without notice. All specifications subject to
change without notice.
© 2021 Wirepath Home Systems, LLC
MODELS

INSTALLATION

1. During ceiling mount assembly, thread
the pole into the ceiling plate, then to the
mount assembly.
2. Once installation is complete, insert the
through-bolt and secure it with the nut at
the desired length.
3. Tighten all set screws using the included
hex key.
4. Optional: Route wiring through the pole
and the wire access opening.
200-SB-POLE-A-001-C 20210629EB
SB-POLE-A-S-BL
SB-POLE-A-M-BL
