TC25 and TC30 wifi RF reciever is designed to connect with wifi, then to control heating device as boiler, valves with
voltage-free output.
Please adjust RF-Optima W R2 PRO parameter setting item 04 to 0 (Internal sensor only) when connect with TC25 or with
TC30. TC25 version is without external sensor, TC30 is with external sensor.
Technical Data
Operating Voltage:
Backup Storage:
Receiver Current Load:
External sensor:
Dimensions:
Color:
IP protection rating:
Certification:
Beware that when the sensor is not connected with TC30, the receiver turns off.
WIFI & RF Connection
TC25 – TC30 is designed to connect with wifi firstly then pair with thermostat. If TC25 already connected with wifi, by long
press paring button, it will enter RF connection mode with RF-Optima W R2 PRO.
LVS vloerverwarming BV | Flemingstraat 9 | 1704SL Heerhugowaard | NETHERLANDS | T: +31 (0)72 5400560 | info@lvsheating.com

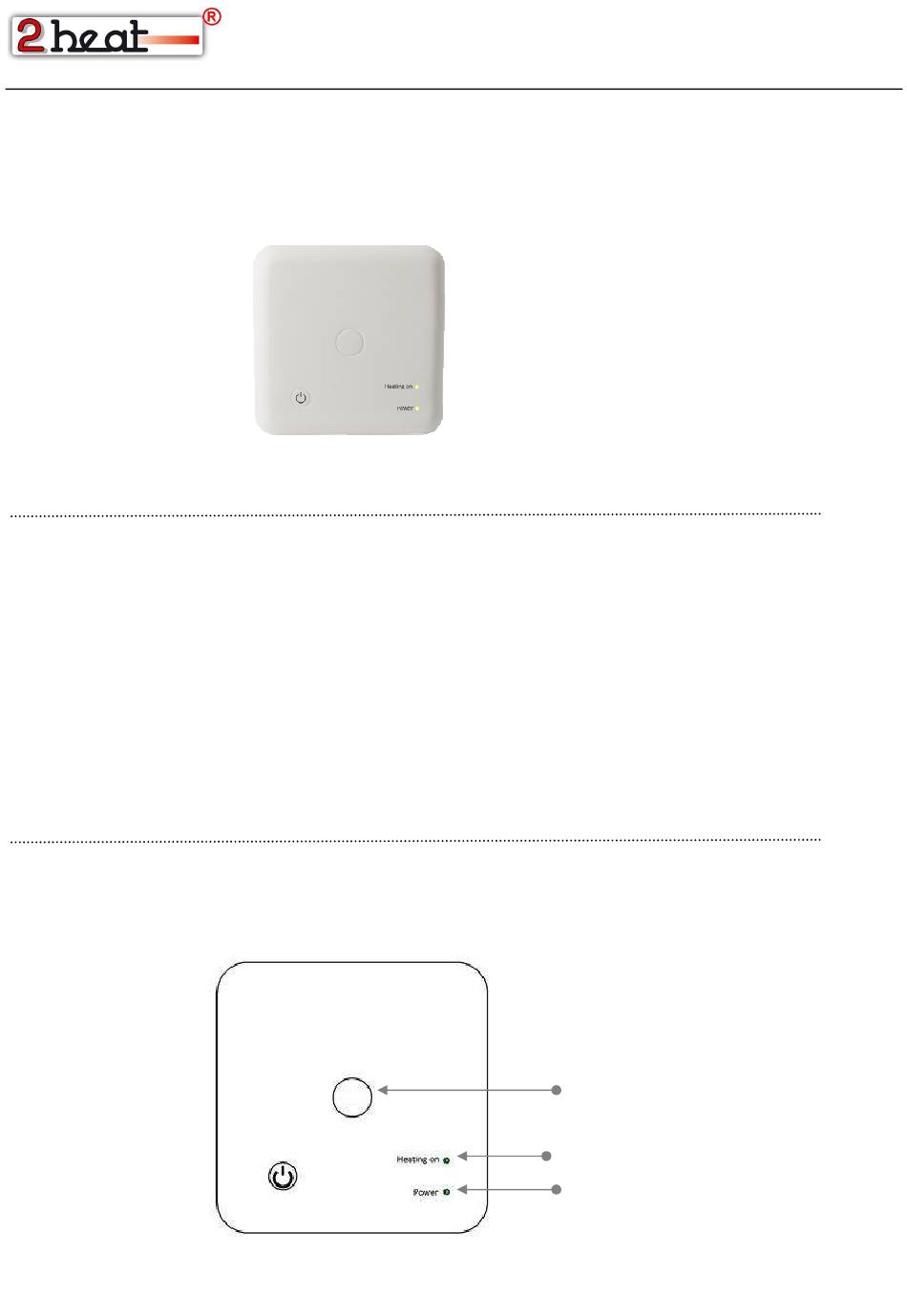

TC25 – TC30 WIFI RF RECEIVER
230Vac; 50/60Hz
EEPROM
Max 10A, voltfree output NO/NC
TC25, no – TC30, yes
86mm x 86 mm x 26mm.
White
20.
CE. Rohs, RED
1
Code pairing button
Heating on indicator (LED 1)
Power indicator (LED 2)
Advertisement
Summary of Contents for 2HEAT TC25
- Page 1 WIFI & RF Connection TC25 – TC30 is designed to connect with wifi firstly then pair with thermostat. If TC25 already connected with wifi, by long press paring button, it will enter RF connection mode with RF-Optima W R2 PRO.
- Page 2 If more than one TCxx reciever will work with RF-Optima W R2 PRO, only one piece TCxx can enable wifi function, the other TCxx need to disable wifi function. Please follow below steps to pairing. When TC25 – TC30 used enable WIFI function : 1) Turn on receiver, long press the Coding button on receiver until LED 1 is flickering quickly.
- Page 3 TC25 – TC30 WIFI RF RECEIVER Wiring Diagram Step 1: Using a small screwdriver, slightly loosen receiver cover plate. Step 2: Terminate the thermostat as shown in the diagram Step 3: Clip the front of the thermostat onto the back plate.
