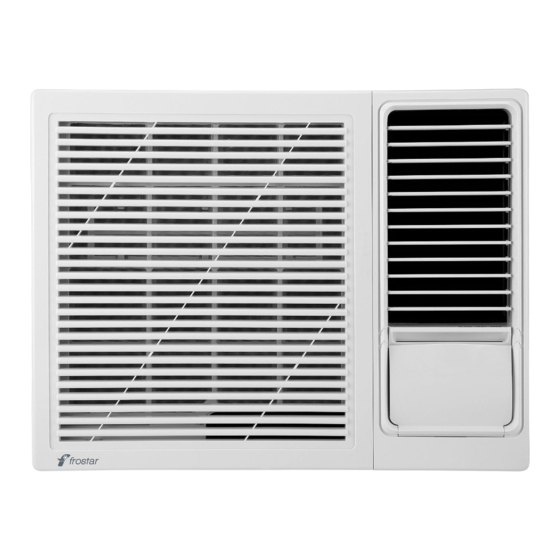

- Page 1 OPERATING INSTRUCTIONS Window Type Air Conditioner Model: FR-E7 FR-E9 FR-E12 FR-E18 Thank you for purchasing frostar window type air conditioner. Please read the user manual carefully before installation and well keep user manual for your later reference.
-
Page 3: Table Of Contents
CONTENTS Thank you for choosing air conditioner. Our design is based on the best efficiency and the lowest noise operation and it can keep the room comfortable. Please read this operating manual carefully before operating the unit and keep it for consultation. Structure mechanism and Installation Precautions Function... - Page 4 Explanation of Symbols Indicates a hazardous situation that, if not avoided, will DANGER result in death or serious injury. Indicates a hazardous situation that, if not avoided, could WARNING result in death or serious injury. Indicates a hazardous situation that, if not avoided, may CAUTION result in minor or moderate injury.
-
Page 5: Precautions
Precautions Warning Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. The air conditioner should be installed in accordance with national wiring regulation. Air Conditioner should be properly grounded. Incorrect grounding may cause electric shock. -
Page 6: Function
Function Introduction Autumn Window type room air conditioners can regulate the room Spring Summer Winter Room temperature and dry the room. It is convenient for your work,study temp. and life. It can be widely used in residence, shop, hotel, office, library and laboratory, and so on. -
Page 7: Operating Condition
Operating Condition Please operate air conditioner in the correct conditions as following. DRY mode operation COOL mode operation Outdoor temperature should be in range of 18 Outdoor temperature should be in range of 18 to 43 to 43 , otherwise it is possible for air conditioner otherwise it is possible for air conditioner to breakdown. -
Page 8: Installation
Installation Installation precaution: Window type conditioner is so valuable and the improper installa- tion of it will cause a lot of damage! Please associate the profes- sional technician to install the unit and don’t install it by yourself. Otherwise, we are not responsible for the damage like this. Location: The condensation water must be drained away conveniently. - Page 9 Installation procedure: Horizontal line 1) Remove the sticker from the front panel. 2) Put the unit into the installation hole. When installing the unit, it should be slanted down to the back to avoid the enlargement of noise or vibration. (Slant between 6-10mm. ) Shown at right figure.) The installation place should be strong enough to avoid the enlargement of noise or vibration.
- Page 10 Drain water for one style: To get the maximum cooling efficiency, the air conditioner is designed to splash the condensate on the condenser coil. If the splashing sound annoys you, you can provide an outside drain by using the following procedure, which may however cause a small loss of performance.
-
Page 11: Notes For Installation
Notes for installation Remove Before removing air conditioner to the other place, you should contact the seller firstly. Then it must be done under the direction of the professional technician. In addition, the charge of this must be paid. Noise Install in a location where is firm enough to avoid the enlargement of noise and vibration. -
Page 12: Part Identification
Part identification Panel outlook picture, just for reference, please take the real unit as standard. Cabinet Air inlet louver Front grille Front intake grille Power cord Air filter Control panel (behind the front intake grille) Air direction adjustment Vertical airflow direction vane o l f The vertical airflow direction vane is controlled by positioning the vane to discharge the air upwards,... -
Page 13: Main Switch Operation Procedure
Main switch operation procedure 1.Main Control Knob Set to Low Cool, Med Cool or High Cool as desired (FAN setting operates the fan only.) CAUTION: If the main control knob is turned off of changed to a fan setting from a cooling operation setting. WAIT at least 3 minutes before resetting to cooling operation. -
Page 14: Operation Tips
Operation Tips Operation for comfort and economy Do not overcool the room Keep blind or curtains closed . Keep the room temp. uniform. temperature. This is not good Do not let sunshine enter the Adjust the vertical and horizon- for health and wastes electricity. room directly when the air con- tal airflow direction to ensure a dition is in operation. -
Page 15: Caution
Caution Operations for safety and health 1) The plug must be accessible after the appliance is positioned. 2) Do not use this appliance in the laundry. 3) If the power cord is damaged, it must be replaced by the manufacture or its service agent in void of hazard. Do not pull out the power cord. -
Page 16: Care And Maintenance
Care and maintenance Always turn off the air conditioner and main power supply before cleaning to ensure safety. Cleaning unit 1. Cut power off before cleaning. Air filter The air filter behind the intake grille should be washed at Plug out only after least once every two weeks or as often as it needs cleaning. -
Page 17: Trouble Shooting Guide
Trouble shooting guide Check the following points before calling for repair or service. If the malfunction persists, please contact Shun Hing Electric Service Centre Ltd. Fault phenomenon Trouble-shooting * Is there a power failure? * Is the plug out? Air conditioner dose not * Has the internal fuse blown? operate at all. -
Page 18: After Service
Special Avowal 1. The information above has been checked; our company reserves the hermeneutic power to any print errors or misunderstanding on the content. 2. Any technology improvement will add into new instruction without any prior notices. The product appearance and color refer to the practical air conditioner. - Page 20 信興電工工程有限公司 SHUN HING ELECTRIC WORKS & ENGINEERING CO., LTD 辦公室: 香港九龍尖沙咀東部麼地道 67 號半島中心 9 樓 909-912 室 OFFICE: ROOM 909-912, 9/F, PENINSULA CENTRE, 67 MODY ROAD, TSIMSHATSUI EAST, KOWLOON, HONG KONG 電話 TEL: (852) 2861 2767 傳真 FAX: (852) 2865 6706 網址...
