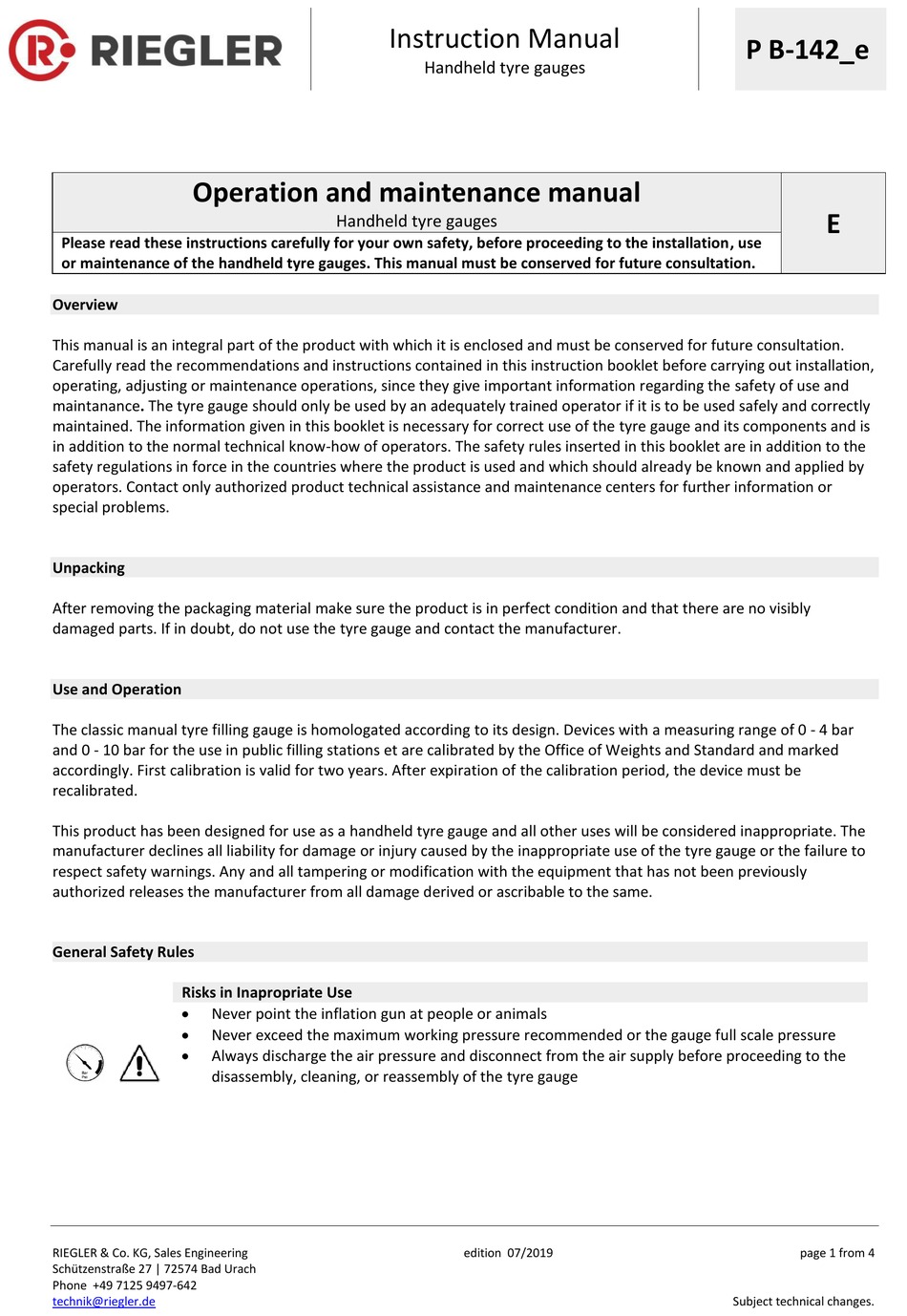

RIEGLER 114543 Instruction Manual

Operation and maintenance manual
Please read these instructions carefully for your own safety, before proceeding to the installation, use
or maintenance of the handheld tyre gauges. This manual must be conserved for future consultation.

Overview

This manual is an integral part of the product with which it is enclosed and must be conserved for future consultation.
Carefully read the recommendations and instructions contained in this instruction booklet before carrying out installation,
operating, adjusting or maintenance operations, since they give important information regarding the safety of use and
maintanance. The tyre gauge should only be used by an adequately trained operator if it is to be used safely and correctly
maintained. The information given in this booklet is necessary for correct use of the tyre gauge and its components and is
in addition to the normal technical know-how of operators. The safety rules inserted in this booklet are in addition to the
safety regulations in force in the countries where the product is used and which should already be known and applied by
operators. Contact only authorized product technical assistance and maintenance centers for further information or
special problems.

Unpacking

After removing the packaging material make sure the product is in perfect condition and that there are no visibly
damaged parts. If in doubt, do not use the tyre gauge and contact the manufacturer.

Use and Operation

The classic manual tyre filling gauge is homologated according to its design. Devices with a measuring range of 0 - 4 bar
and 0 - 10 bar for the use in public filling stations et are calibrated by the Office of Weights and Standard and marked
accordingly. First calibration is valid for two years. After expiration of the calibration period, the device must be
recalibrated.
This product has been designed for use as a handheld tyre gauge and all other uses will be considered inappropriate. The
manufacturer declines all liability for damage or injury caused by the inappropriate use of the tyre gauge or the failure to
respect safety warnings. Any and all tampering or modification with the equipment that has not been previously
authorized releases the manufacturer from all damage derived or ascribable to the same.

General Safety Rules

Risks in Inapropriate Use

Never point the inflation gun at people or animals

Never exceed the maximum working pressure recommended or the gauge full scale pressure

Always discharge the air pressure and disconnect from the air supply before proceeding to the
disassembly, cleaning, or reassembly of the tyre gauge
