Summary of Contents for Rogers Athletic Iso Sled

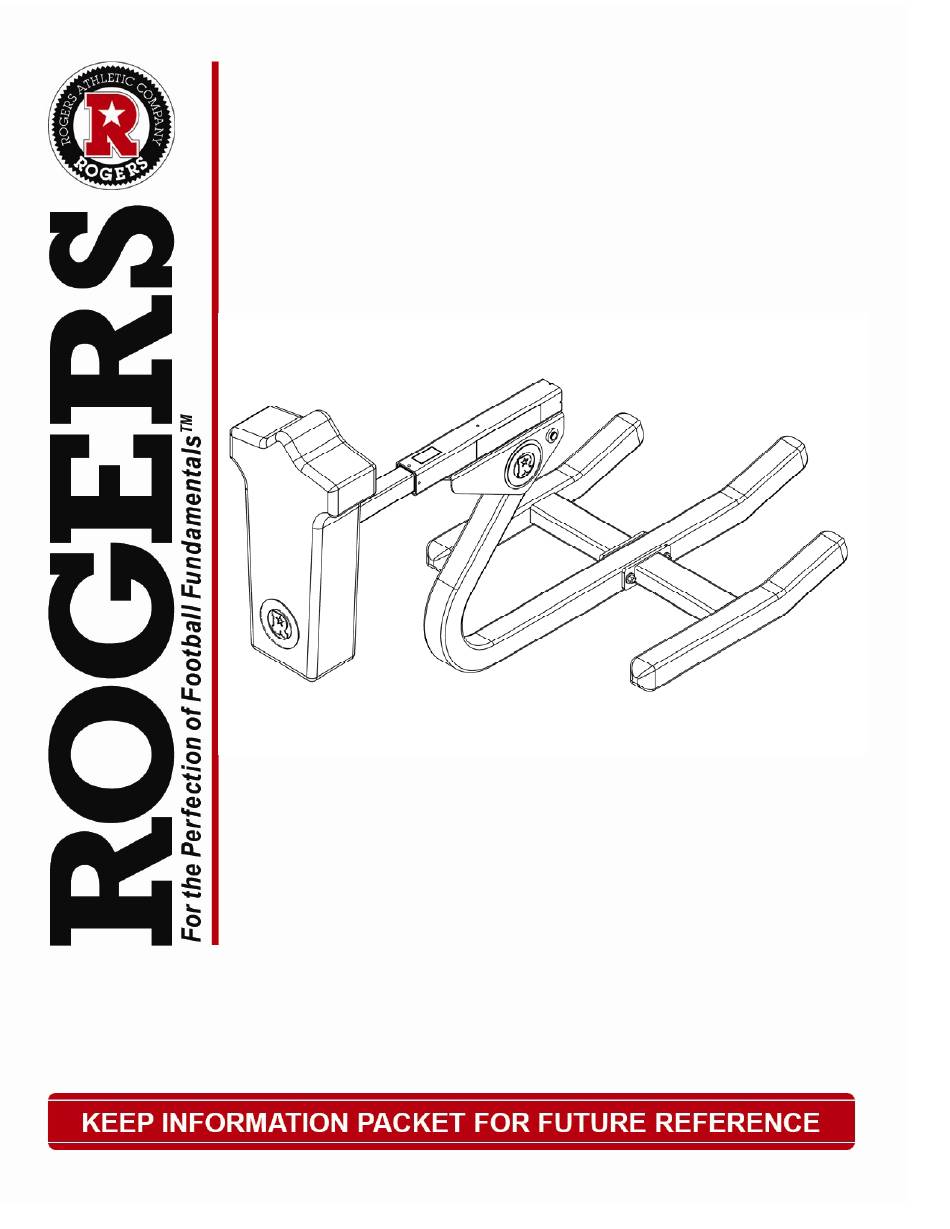

- Page 1 Product Information Packet Product Name: Iso Sled Product Part Number: 410471 & 410472...
- Page 2 The care you give your Iso Sled will greatly determine your satisfaction with its performance and service life. Careful study of this manual is encouraged to obtain a thorough understanding of your new Iso Sled and its functions and maintenance.
- Page 3 Save these instructions. Refer to them frequently and use them to instruct others who may use the Iso Sled. If you loan someone your Iso Sled, loan them these instructions also. Always wear a helmet when using the Iso Sled.
- Page 4 Symbols Safety Alert: Precautions that involve your safety. Pinch Point Symbol: Failure to keep hands away from pinch points may result in personal injury. Read the Operator’s Manual: To reduce risk of injury, user must read and understand operator’s manual before using this product. Do Not Climb Warning Label: To reduce risk of injury, do not climb on field equipment.
- Page 5 Iso Sled (Part # 410471 & 410472) Weight & Width: 1-Man Iso Sled 335 lbs and 44” W 2-Man Iso Sled 509 lbs and 61 11/32” W without pads; with Shock pad 74 7/32”; with Surge 86 3/16” Height: 40” without pad, with pads 59”...
- Page 6 Note: For 2 man Iso Sled setups skip to step 5. Lay Iso Runner Sub Assembly on its side. Line up holes from the Iso Outrigger with holes on the runner and use (2) 5/8” x 6” bolts and (2) 5/8” washers to hold it in place.
- Page 7 Field equipment should be washed periodically with soapy water to maintain original surface finish. A silicone based lubricant may be used on moving parts to maintain proper function. Replace any damaged equipment with genuine Rogers Athletic parts. Failure to do so may result in unsafe equipment and/or personal injury.
- Page 8 Customer Service For parts or service contact Rogers Athletic Company. When ordering parts be sure to provide all relevant information available including the name and part number of the equipment purchased. This information is located on the cover of this product information package. Customer service hours are Monday through Friday from 8:00 a.m.
