Control Commands
VIDEO WALLS
VIDEO PROCESSORS
VIDEO MATRIX SWITCHES
EXTENDERS
SPLITTERS
CABLES & ACCESSORIES

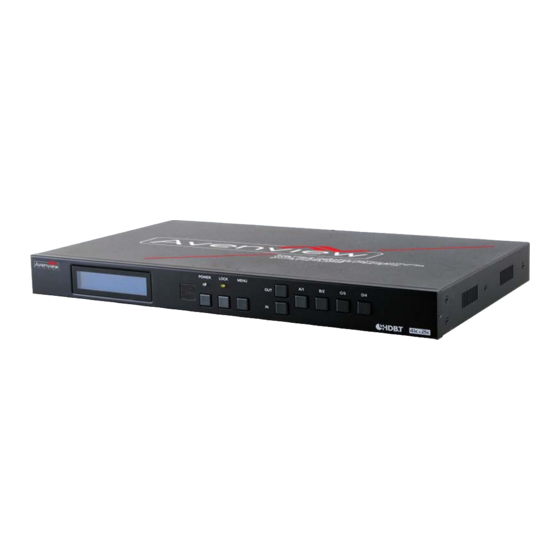

Model #: SW-HBT4K-C6-4X4E
WIRELESS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avenview SW-HBT4K-C6-4X4E
Summary of Contents for Avenview SW-HBT4K-C6-4X4E
- Page 1 No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and claims any...
- Page 2 SERIAL PORT SETTING - Baud Rate: 19200 bps - Data Bit: 8 bits - Parity: None - Flow Control: None - Stop Bit: 1 RS-232 Wiring (Cross Cable Connection) SW-HBT-4K-4X4E Remote Controller(PC) Assignment De finition è ç www.avenview.com Page 1...
- Page 3 Switch output’s UART to A~D and allow Matrix to send commands to Receiver’s connected RS-232 device. UARTSW0 Switch output's UART to MCU. Restoring RS-232 control to the Receiver output back to Matrix. Display all the available commands Quit Exit (for telnet only) www.avenview.com Page 2...
- Page 4 To access the telnet control in Windows 7, click on the 'Start' menu and type "cmd" in the Search field then press enter. Under Windows XP go to the 'Start' menu and click on "Run", type "cmd" with then press enter. Under Mac OS X, go to Go→Applications→Utilities→Terminal See below for reference. www.avenview.com Page 3...
- Page 5 (For a full list of commands, see Section 1.3). Note: Commands will not be executed unless followed by a carriage return. Commands are case-insensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly. www.avenview.com Page 4...
- Page 6 On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type device's IP address on the web address entry bar. The browser will display the device's status, control and User setting pages. Click on the 'Control' tab to control power, input/output ports, EDID and reset mode www.avenview.com Page 5...
- Page 7 Clicking on the 'User Setting' tab allows you to reset the IP configuration. The system will ask for a reboot of the device every time any of the settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar. www.avenview.com Page 6...
- Page 8 Disclaimer While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of Avenview concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the Avenview hardware, software, or other products and documentation provided herein.
