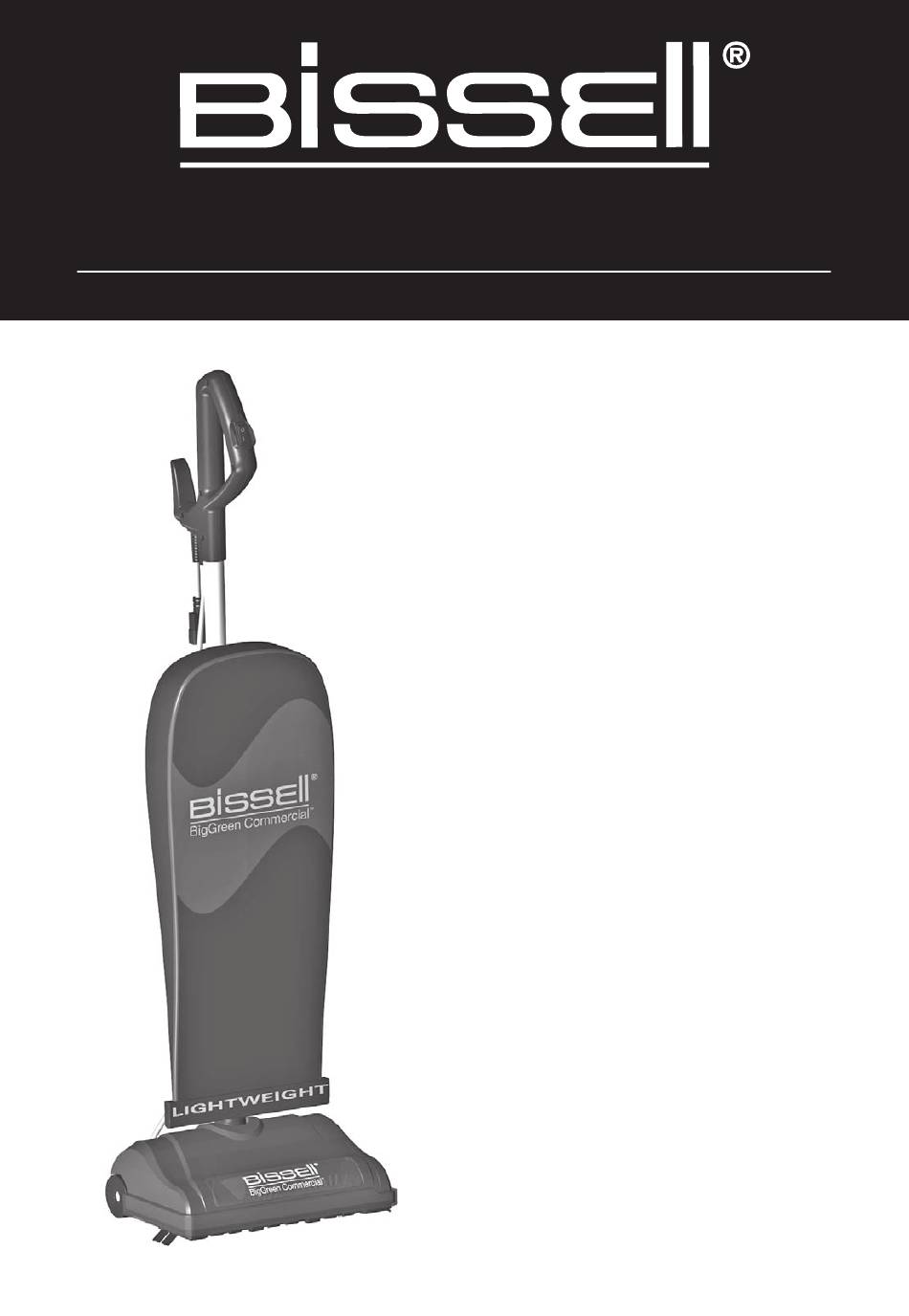

- Page 1 BigGreen Commercial ® USER'S GUIDE MODELS BGU8000 BGU8000RED BGU8000EU BGU8000UK Thank You Safety Instructions Product View Assembly Instructions Operating Instructions Maintenance 8-10 Warranty Parts list 12-14 Customer Care...
- Page 2 BigGreen Commercial vacuum. construction of this complete, high-tech commercial cleaning system. Your BISSELL BigGreen Commercial vacuum is well made, and we back it with a limited one-year commercial warranty. We also stand behind it with a knowledgeable, dedicated Customer Care department, so, should you ever have a problem, you’ll receive fast, considerate...
-
Page 3: Important Safety Instructions
, y r d n i r o o c a f r . s e USING YOUR BISSELL BIGGREEN p e e a i l p e c n e v e u s l a f r . -
Page 4: Product View
roduct view Power switch Upper handle Outer bag Power head Bumper Upper cord hook Power cord Brush roll Carry handle Front wheels Rear wheels Side door to change belt Side brush... - Page 5 ssembly Instructions 1.With ON/OFF switch facing the front of the unit. Insert the end of the upper handle into the top of the vacuum as shown in the illustration at left. Push down the vacuum. 2.Tighten the upper collar. 3.Press the cord into the cord clip, and ensuring the cord is fully rested in clip.
-
Page 6: Power Switch
Although your upright will pick up pins, paper clips, and other small objects, it is may result in permanent damage to the motor suction fan and its housing. This vacuum should only be operated with the original power/extension cord. Replace with a genuine Bissell Commercial replacement power/extension cord. - Page 7 perating Instructions HANDLE RELEASE To release the handle, press on the base of the vacuum with your foot as shown at left. The handle is now free to lower for normal vacuuming. HANDLE LOCKING NDLE LOCKING lock the handle in the upright position as shown at left by simply moving the handle up until it stops.
-
Page 8: Maintenance
2.Use scissors to carefully cut these objects off the brush roll and remove them from the vacuum cleaner. 3.Changing the brush should be performed by an by an authorized Bissell Commercial vacuum dealer. - Page 9 MAINTENANCE CHECKING THE DRIVE BELT WARNING: Unplug cord from elctrical outlet before servicing. 2) Slide the door forward by prying open 1) Remove the screw located on side of with a screwdriver or coin. ewdriver or coin. power head. 4) Loop the new belt over the motor op the new belt over the motor 3) Remove the belt from the brush roll pulley 3) Remove the belt from the brush roll pulley...
- Page 10 MAINTENANCE CLEARING A CLOGGED VACUUM CLEANER WARNING: Unplug cord from elctrical outlet before servicing. 1.Unhook the bottom of the outer bag. Twist lower collar counterclockwise to slide up. Pull the tube out of the base, and check if there are obstructions in the tube and the fan housing. Remove the obstructions.
-
Page 11: Limited One-Year Warranty
Limited One-Year Warranty BISSELL BigGreen Commercial will repair or replace (with new or remanufactured components or products), at BISSELL BigGreen Commercial option, free of charge from the date of purchase by the original purchaser, for two years any defective or malfunctioning part. -
Page 12: Parts List
arts list Description Handle tube comp. Upper retaining collar Carry handle Cloth bag Retaining clip Paper bag O ring Lower retaining collar Lower tube assy Hood assy Belt cover Strain relief bushing Exhaust foam Belt Motor assy Air duct/swivel Inlet duct gasket Inlet duct Brush roller Furniture guard... - Page 13 Description Handle tube comp. Top Handle Grip-R Upper cord hook Power cord ON/OFF switch Upper tube Handle screws...
- Page 14 Description Description Motor assy 15-4 Washer 15-1 Motor nut 15-5 Motor cover 15-2 External tooth washer 15-6 Motor gasket 15-3 15-7 Motor Description Description Furniture guard 21-6 Side brush Base plate comp. 21-7 Front roller w/shaft 21-1 Base plate 21-8 Rubber blade 21-2 Rear wheel w/oil bearing...
