MobileView 3200 Quick Reference

Network Switch Quick Reference
MobileView®
Introduction

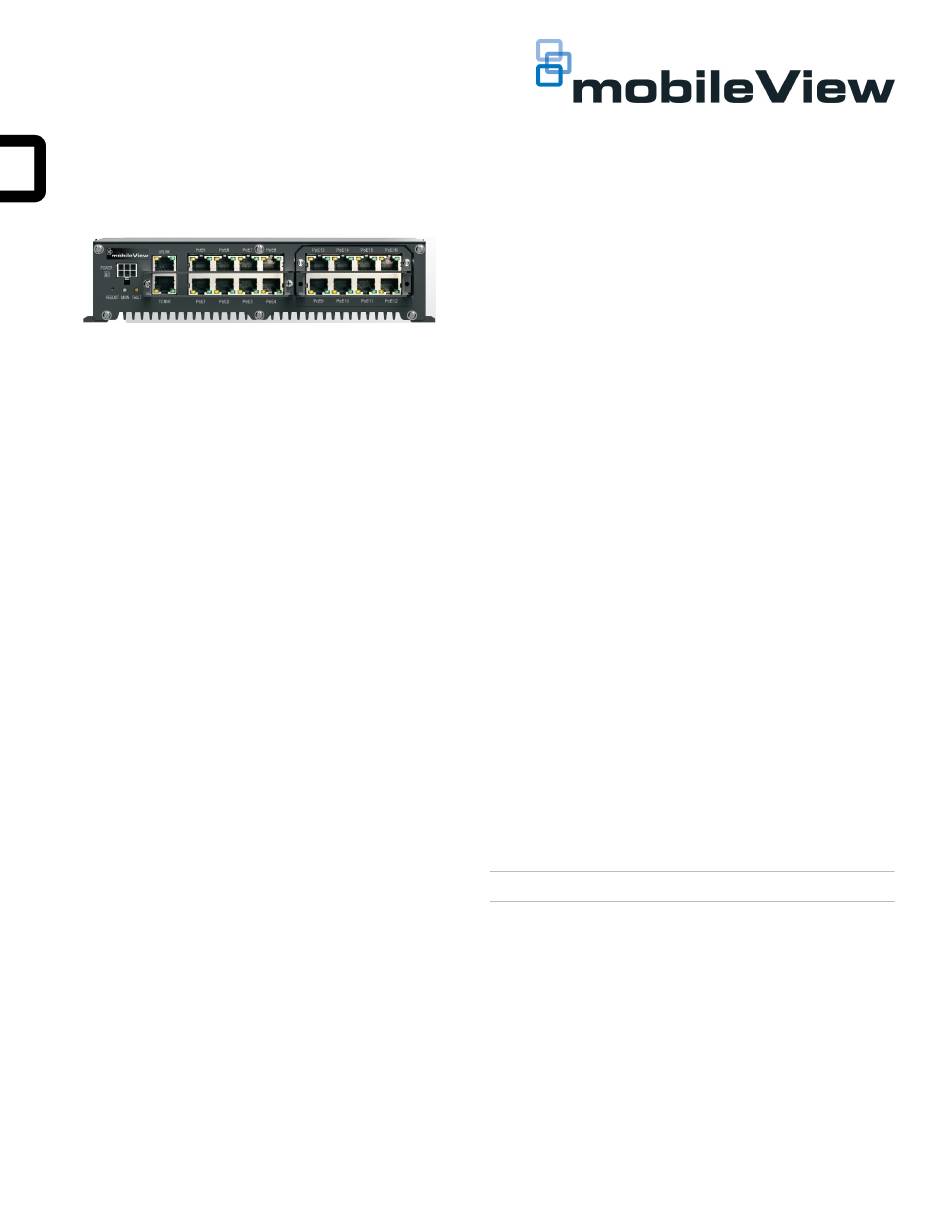

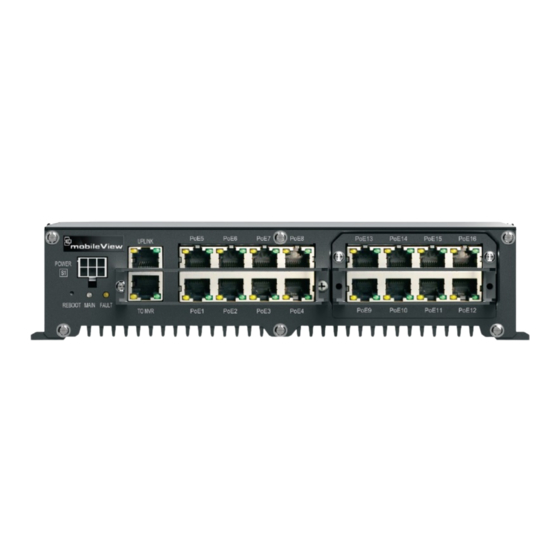

The MobileView Network Switch (MVNS) 3200 is a cost-effective,
unmanaged network switch optimized for use with IP based video
recording systems. The switch is available in 8 or 16 port models
each having two Gigabit uplink ports and 48VDC PoE fast
Ethernet downlink ports. The construction is rugged and features
a simplified status interface, integrated cable management,
passive cooling, and maximized functions necessary for remote
installation in challenging vehicular environments.
Features
• 8 and 16 port models
• Support for 16 IP cameras at 1080p resolution, 30fps
• 7.2 Gbps switching capacity
• Available upgrades:
- Hardware: expands 8 ports to 16 ports
- Firmware: updates using web interface
• Simplified LED status indicators
• Fault relay for remote monitoring
• Available 51/102 Watts for PoE (8/16 Channel)
• Cable management bars and clips included
• Integrated mounting flange
• Standardized connection harness
• SAE-J1455 Compliance Tested
MVNS-3200 Functionality
The MVNS-3200 provides connectivity for up to 8 or 16 IP
cameras with compatible MobileView network video recorders.
Ports
The MVNS-3200 has uplink and downlink ports providing
connectivity between the recorder and other network devices.
1. Uplink Port: Dual 1GB Ethernet ports are provided. While
both ports are general purpose, the one labeled NVR is
intended for connection to the network video recorder and the
other for connection to a second switch or other network
device.
P/N 1073097A • REV 01.01 • NOV 2015
2. Downlink Port: Depending on model, up to 8 or 16 Fast
Ethernet downlink ports are available. While available for
connection to any network device, these ports are optimized
for connection to MobileView IP cameras. Ports include PoE
capability.
Power over Ethernet (PoE)
Downlink ports include PoE for connection to powered IP devices.
Available power is optimized for MobileView IP cameras. Each set
of 8 downlink ports has a maximum of 51 watts available to split
across all ports (target = 6.375W) with each individually limited to
25.5 watts. If either limit is exceeded, the switch will trigger a fault
and ports may not function properly. The switch automatically
reverts to normal operation once power levels come within the
specified limits.
Camera IP Auto-Assignment
The MVNS-3200 is optimized for connection to MobileView IP
cameras with an expected uplink connection to MobileView
network video recorders. By default, the switch detects
compatible IP cameras and automatically assigns each a unique
IP addresses according to the downlink port ID. Address
assignment follows this scheme:
Port 1 = 192.168.1.101
Port 2 = 192.168.1.102
Port 3 = 192.168.1.103
Port XX = 192.168.1.1XX
The auto assignment function is enabled by default. It can be
disabled in the switch configuration.
Configuration
The MVNS-3200 implements limited configuration using a built-in
web server at the fixed IP address 192.168.1.64. Available
options include firmware update, camera IP auto-assignment, and
logout user. Future firmware may enable new or expanded
features and controls.
Caution: Configuration changes are effective immediately.
Firmware Update
To update the MVNS-3200 firmware:
1. Open the configuration page.
2. Press Browse.
3. Select the firmware filename.
4. Press OK to load the text box with the firmware filename and
location.
