Eagle Eye Power Solutions BC-2500 Installation Instruction

1
ITEM NO. ITEM DESCRIPTION
1 BRACKET, BASE
2 BRACKET, BRACE / EXTENSION
3 BRACKET, LEG
4 SCREW, #8-32 X .375, SELF TAPPING, PANHEAD
5 WASHER, #8, LOCK, STAR
6 SCREW, #10-32 X .250, HEX HEAD
7 NUT, #10-32, LOCKING
Eagle Eye Power Solutions, LLC ● 4031 W Kiehnau Ave, Milwaukee, WI 53209

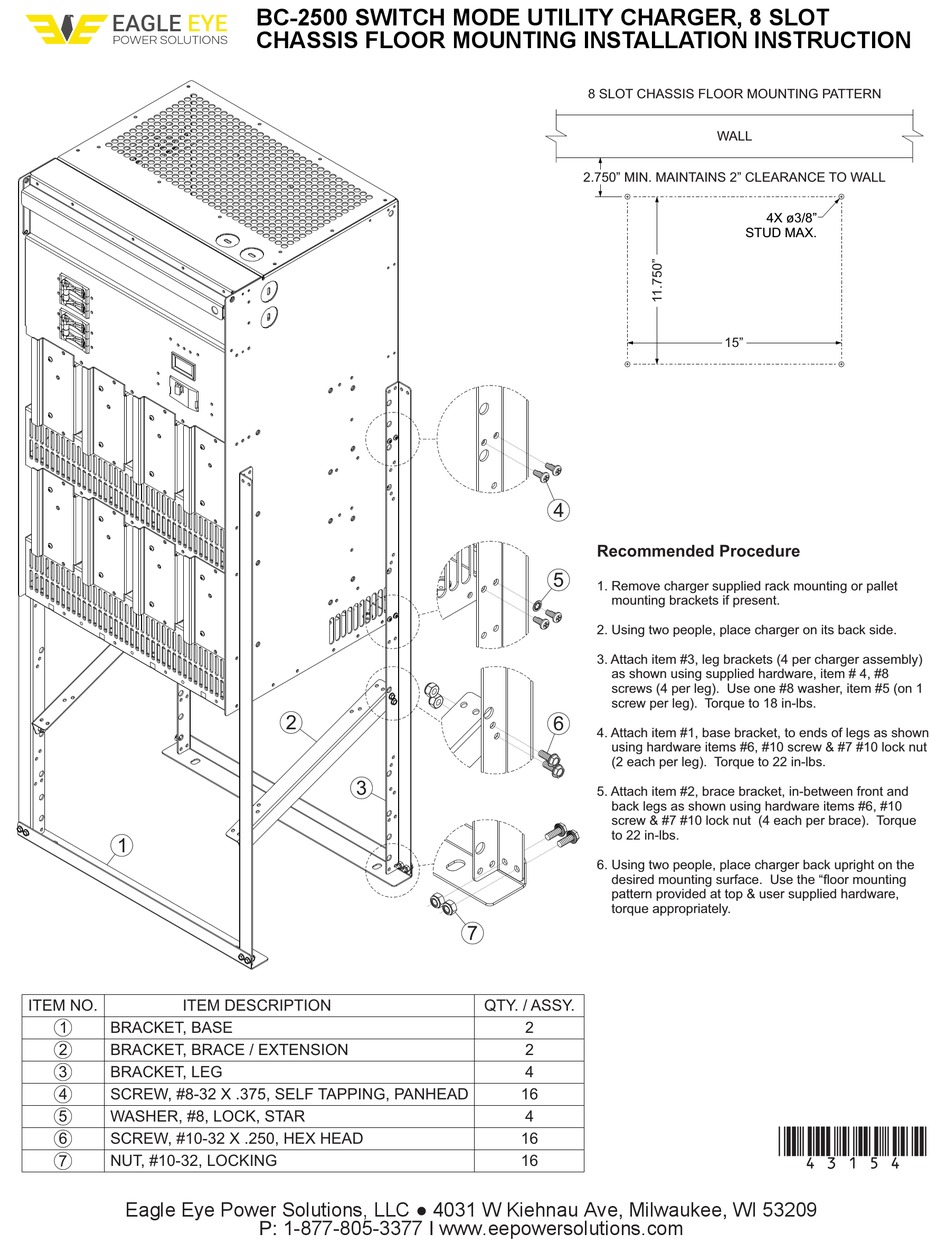

BC-2500 SWITCH MODE UTILITY CHARGER, 8 SLOT
CHASSIS FLOOR MOUNTING INSTALLATION INSTRUCTION
2
3
P: 1-877-805-3377 I www.eepowersolutions.com
8 SLOT CHASSIS FLOOR MOUNTING PATTERN
2.750" MIN. MAINTAINS 2" CLEARANCE TO WALL
4
Recommended Procedure
5
1. Remove charger supplied rack mounting or pallet
mounting brackets if present.
2. Using two people, place charger on its back side.
3. Attach item #3, leg brackets (4 per charger assembly)
as shown using supplied hardware, item # 4, #8
screws (4 per leg). Use one #8 washer, item #5 (on 1
screw per leg). Torque to 18 in-lbs.
6
4. Attach item #1, base bracket, to ends of legs as shown
using hardware items #6, #10 screw & #7 #10 lock nut
(2 each per leg). Torque to 22 in-lbs.
5. Attach item #2, brace bracket, in-between front and
back legs as shown using hardware items #6, #10
screw & #7 #10 lock nut (4 each per brace). Torque
to 22 in-lbs.
6. Using two people, place charger back upright on the
desired mounting surface. Use the "floor mounting
pattern provided at top & user supplied hardware,
torque appropriately.
7
QTY. / ASSY.
2
2
4
16
4
16
16
WALL
4X ø3/8"
STUD MAX.
15"
*43154*
